User manual no.:
IMMU-02-03-04-14-ENG

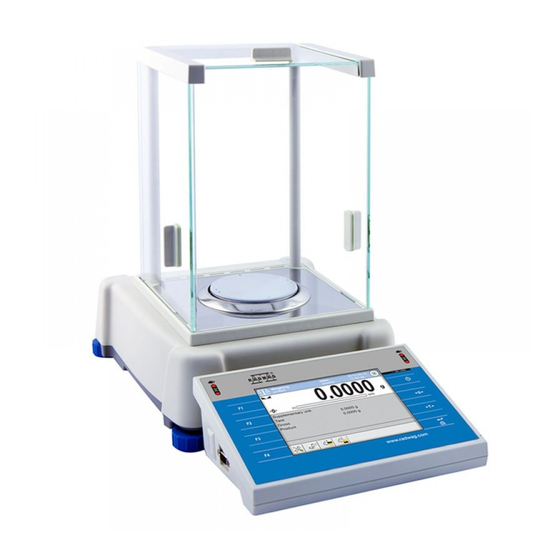

BALANCES 3Y SERIES
− ultra-microbalances UYA 3Y
− analytical balances XA 3Y
− analytical balances XA 3Y.A
− analytical balances AS 3Y
− precision balances PS 3Y
precision balances APP 3Y

B A L A N C E S A N D S C A L E S
RADWAG 26 – 600 Radom, Bracka 28, POLAND
Phone: +48 (0-48) 38 48 800, fax. +48 (0-48) 385 00 10
export@radwag.com
www.radwag.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3Y Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RADWAG 3Y Series

  • Page 1 APP 3Y − B A L A N C E S A N D S C A L E S RADWAG 26 – 600 Radom, Bracka 28, POLAND Phone: +48 (0-48) 38 48 800, fax. +48 (0-48) 385 00 10 export@radwag.com...
  • Page 2 APRIL 2014 - 2 -...
  • Page 3: Table Of Contents

    10.3. Balance leveling ................... 35 10.4. Zeroing ....................35 10.5. Tarring ....................36 10.6. Weighing on dual range balances (ref. balance PS 200/2000.3Y series) ..37 10.7. Use of air buoyancy compensation factor ..........37 10.8. Additional parameters on weighing process ..........41 10.9.
  • Page 4 14. PROFILES ..................54 14.1. Creating a profile ................. 54 14.2. Profile structure ................... 55 14.2.1. Settings ....................56 14.2.2. Working modes ..................56 14.2.3. Readout ....................56 14.2.4. Measuring units ..................58 15. WORKING MODES – general information ........59 15.1.
  • Page 5 21.2. Additional settings of animal weighing mode ..........94 22. FORMULATION ................95 22.1. Additional settings of formulation mode ..........96 22.2. Formulation – quick access keys ............97 22.3. Adding formulas to the Database of Formulas .......... 97 22.4. Using formulas in weighing ..............99 22.5.
  • Page 6 27.13. A report on product control ..............155 28. MASS CONTROL ................156 28.1. Working mode activating procedure ............156 28.2. Mass control global settings ..............156 28.3. Mass control process................156 28.4. Printouts ....................158 28.5. Report on completed mass control processes ..........159 29. DATABASES................... 160 29.1.
  • Page 7 33.2. Data and time setting ................192 33.3. “Beep” sound ..................192 33.4. Touch panel calibration ................193 33.5. Level control ..................193 33.6. Sensor sensitivity ................194 33.7. Autotest .....................194 33.8. Start logo ...................198 33.9. Export of system events ...............198 34. UPDATE ..................199 35.
  • Page 8: Basic Information

    EX zones. WARRANTY CONDITIONS A. RADWAG feels obliged to repair or exchange all elements that appear to be faulty by production or their construction, B. Defining defects of unclear origin defects and means of their elimination can only be realized with assistance of manufacturer and user representatives, C.
  • Page 9 Defects caused by overloading balance’s mechanical measuring system, • Maintenance activities (cleaning). • E. Loss of warranty takes place if: A repair is carried out outside RADWAG sales office or authorized service • point, Service claims intrusion into mechanical or electronic construction by •...
  • Page 10: Unpacking And Installation

    2. UNPACKING AND INSTALLATION 2.1. Ultra-microbalaces UYA 3Y Carefully unpack the balance, remove plastic, cardboard and foil packagings together with protective elements and using gently movements place the balance onto its location. Assembly the weighing pan and other elements following the diagram. After ultra-microbalance installing at operating place, following should be set: 1 –...
  • Page 11: Balances Xa 3Y; Xa 3Y.a

    2.2. Balances XA 3Y; XA 3Y.A A – balance with d=0,01mg unit B – balance with d=0,1mg unit After balance installation at operating place, assembly the following parts: − bottom shield of the drying chamber (5) − centering ring (4) −...
  • Page 12: Balances As 3Y Series

    Carefully remove the balance from its packaging, remove the plastic and foil transport protective elements. Gently place the balance in its intended place of use. Install the weighing pan, and other elements according to below scheme. Analytical balances AS 3Y series A – balance with reading unit d=0,01mg B –...
  • Page 13: Balances Ps 3Y Series

    Install the weighing pan, and other elements according to below scheme. Precision balances PS 3Y series A – balance with reading unit d=1mg B – balance with reading unit d=10mg...
  • Page 14: Balance Cleaning

    Before installing the balance in its intended place of use, remove transport protections (1) and assembly the weighing pan (2) (for APP 10.3Y, one of the pans only). On assembling the components, connect all peripheral devices to the balance and then plug the instrument to the mains.
  • Page 15 2.7. XA 3YA series balances Steps: 1. Unscrew and remove top glass protection, next slide the top glass out. 2. Remove left and right side glass. Before removing the glass completely pull its protection as it has been presented in the picture. Left and right side glass are not interchangeable therefore it must be remembered which is left, which is right.
  • Page 16 4. Remove the weighing pan and the pan shield so as not to damage the mechanism while carrying out the cleaning process. Thus prepared draft shield and its glass parts may be thoroughly cleaned. Carry out the cleaning process carefully using the most gentle movements. Pay attention to dirt and any small items, they could affect balance operation if they got inside the balance through the opening that serves to mount the weighing pan.
  • Page 17 XA 3Y series balance Steps: 1. Unscrew and remove top glass protection, next slide the top glass out. 2. Replace the back glass. 3. Remove left and right side glass. Left and right side glass are not interchangeable therefore it must be remembered which is left, which is right.
  • Page 18 4. CAUTION: the front glass cannot be dismounted. 5. Remove the weighing pan, the pan shield and the bottom shield of the weighing chamber so as not to damage the mechanism while carrying out the cleaning process. Thus prepared draft shield and its glass parts may be thoroughly cleaned. Carry out the cleaning process carefully using the most gentle movements.
  • Page 19 AS 3Y series balance Steps: 1. Unscrew and remove top glass protection, next slide the top glass out. 2. Remove the back glass 3. Remove left and right side glass. Left and right side glass are not interchangeable therefore it must be remembered which is left, which is right.
  • Page 20: Plugging To Mains

    4. CAUTION: the front glass cannot be dismounted. 5. Remove the weighing pan, the pan shield and the bottom shield of the weighing chamber so as not to damage the mechanism while carrying out the cleaning process. Thus prepared draft shield and its glass parts may be thoroughly cleaned. Carry out the cleaning process carefully using the most gentle movements.
  • Page 21: Balance Design

    3. BALANCE DESIGN 3.1. Dimensions Ulctramicrobalance UYA 3Y series Balance XA 3Y.A series - 21 -...
  • Page 22 Balance XA 3Y series Balance XA 3Y.F series - 22 -...
  • Page 23 Balance AS 3Y series Balance PS 3Y series - 23 -...
  • Page 24 Balance APP 3Y series - 24 -...
  • Page 25: Interfaces

    3.2. Interfaces Description of available interfaces 1 – Ethernet RJ45 4 – IN / OUT, RS232 (COM2) 2 – RS232 interface (COM1) 3 – USB port Interfaces RS232 and IN/OUT RS232 - socket DB9/M (male), front view: Pin2 - RxD Pin3 - TxD Pin5 - GND IN/OUT, RS232 socket DSUB15/F (female), front view:...
  • Page 26: Startup

    Press powering key located on the upper left section of terminal’s • overlay. Within a few seconds, the OS Windows CE and RADWAG software start loading, which is signaled by flickering red diode ON/LOAD. On completing the startup procedure, the instrument’s displays main •...
  • Page 27: Software Structure

    6. SOFTWARE STRUCTURE The structure of balance’s main menu is divided into function groups. Each group comprises parameters grouped by their reference. Description of each menu group is provided further in this user manual. List of groups - Parameters Balance’s main menu is accessed by pressing SETUP function key or soft key located in the bottom tool bar of balance’s display.
  • Page 28: Software Weighing Window

    7. SOFTWARE WEIGHING WINDOW The software’s main window is divided into 4 main sections: The upper part of the touch panel displays data on active working mode, • logged operator, date, time, active connection to a computer and current level status of a balance. Below there is a weighing window, indicating measurement result and •...
  • Page 29: Logging

    8. LOGGING Full access to balance’s parameters and editing databases requires logging to instrument’s software as an operator with <Administrator> access level. The logging procedure should be carried out on each switching on the balance. Log in procedure While in main weighing window of the application, press <Log in> text •...
  • Page 30 Access level Software of balances Y2 series provides four access levels: administrator, advanced operator, operator and none (anonymous logging). On switching on the balance, its display is constantly active, enabling carrying out mass measuring processes. These measurements, however, cannot be saved in balance’s database unless a user with at least minimal access level is logged in.
  • Page 31: Operating User Menu

    9. OPERATING USER MENU Moving in menu of balances 3Y series is intuitive. The touch panel makes the operation of balance’s software very simple. Pressing a function key, a soft key or area on the display initiates an assigned function or process.
  • Page 32: Return To Weighing Mode

    9.2. Return to weighing mode Changes in instrument’s memory are saved permanently on returning to weighing mode. Procedure: - Press key for a few times, until the display indicates to the weighing mode. - press soft key in the upper bar on the display. The software immediately returns to displaying the main window.
  • Page 33: Weighing

    10. WEIGHING Load a weighed object on balance’s weighing pan. On stabilization of weighing result, indicated by stability marker visible on the side of balance’s display, read the measurement result. Saving / printout of the measurement result is available on pressing <PRINT> key: •...
  • Page 34: Means Of Correct Weighing Procedure

    * - Accessibility of measuring units is conditioned by type of balance and its verification status. In non-verified balances all measuring units including those outside the International System of Units are available. 10.2. Means of correct weighing procedure In order to ensure long lasting use of a balance, correct and reliable measurement of weighed loads, follow below procedures: ...
  • Page 35: Balance Leveling

    10.3. Balance leveling Balance Y2 series features AutoLEVEL System, which continuously monitors balance’s level status during its operation. The level status is signaled in the upper right corner of balance’s display. The system continuously controls level, and on detecting level change it indicates appropriate information on the display and/or signals an alarm.
  • Page 36: Tarring

    10.5. Tarring In order to determine net weight of a weighed object, place object’s container (packaging) on balance’s weighing pan, and on stabilization of measurement result press key. The display should indicate mass equal to zero and symbols: Netand . On taking off the weighed load and its packaging from instrument’s weighing pan, the display indicates sum of total tarred mass with minus sign.
  • Page 37: Weighing On Dual Range Balances (Ref. Balance Ps 200/2000.3Y Series)

    10.6. Weighing on dual range balances (ref. balance PS 200/2000.3Y series) weighing range to weighing Transition from weighing with accuracy of the with accuracy of the weighing range takes place automatically on exceeding Max 200g (without operator’s interference). On entering the accuracy of the II weighing range, the display indicates <...
  • Page 38 Sample mass [g] Error value in relation to density of weighed sample 2. Testing the changes of sample mass within a few hours’ time, if: sample mass is relatively constant (minor changes). In such case it is assumed, that considerable effect on the measurement result rests on air density changes, which is affected by changes of pressure, temperature and humidity.
  • Page 39 In order to avoid errors, the corrected mass value is accompanied by < > symbol visible on balance’s display and a printout. 2. The application semi-automatically determines the value of air density. The specified density of the weighed sample is inserted to balance’s memory by an operator.
  • Page 40 ONLINE – selecting this option downloads current air density value from a connected THB sensor, if such is connected to the balance, or from internal sensor installed in the balance. If a balance features both types of sensors (THB module and internal sensor), then data from the THB module supersedes the other, and parameters Setup/Ambient Conditions/Ambient Conditions Module require setting to SAVE or SAVE &...
  • Page 41: Additional Parameters On Weighing Process

    10.8. Additional parameters on weighing process Changes in settings of functions related to weighing process can in some extend program balance reactions. Procedure: 5. Press grey coloured workspace 6. Balance display indicates menu: Settings, Keys, Information, Printouts, Profile 7. Press one of available submenu options and select item for modification, Menu <Settings>...
  • Page 42 Sum of measurements – the condition for printing a footer is exceeding mass value set in parameter <Threshold> Number of measurements – the condition for printing a footer is carrying out a pre-defined number of measurements (a batch) set in parameter <Threshold> THRESHOLD –...
  • Page 43: Minimum Sample

    “RADWAG” company. An authorized RADWAG representative determines the minimum sample dependent on packaging mass. The process is carried out with mass standards, in balance place of use and in accordance with the requirements of the accepted quality system.
  • Page 44 Means of setting a method of minimum sample determining is described in point 27.9. of this user manual: <Databases /Minimum sample>. RADWAG authorized personnel is only authorized to add new values of minimum samples. Weighing with application of <MINIMUM SAMPLE> mode...
  • Page 45 6. Press <Method> field 7. Which opens a window containing a list of minimum sample methods stored in balance database. 8. Select one of available entries. 9. The software returns to the previous menu window 10. Press <Mode> field 11. Which opens a window with parameter settings. Select one of below options: Lock –...
  • Page 46 The validity term of the minimum sample has expired. Changes are needed in the minimum sample settings. Only authorized RADWAG personnel can change the minimum sample settings. Caution: If more than one reference tare value is programmed (with corresponding minimum sample mass) then the indicated value automatically moves to a range corresponding to the weight of the tarred container.
  • Page 47: Adjustment

    11. ADJUSTMENT Balances 3Y series feature automatic internal adjustment system which ensures correct measurement accuracy. Menu <ADJUSTMENT> contains functions controlling operation of balance adjustment process, including options: 11.1. Internal adjustment Internal adjustment process utilizes an internal weight built in balance’s housing.
  • Page 48: User Adjustment

    Acting according to the command, place an ordered weight/standard on • balance’s weighing pan and press key, On completing the adjustment procedure the balance indicates a message • box: On confirming the message box with key, the balance returns to •...
  • Page 49: Automatic Adjustment Time

     Time – adjustment takes place in time intervals declared in menu <Automatic adjustment time > (11.6)  Temperature – adjustment is triggered by temperature change only  Both – adjustment activation is triggered both by temperature changes and time interval changes CAUTION: Changing the settings of automatic adjustment is enabled only in balances which are not subject to conformity assessment (i.e.
  • Page 50: Adjustment History

     blank line,  dashes,  signature,  non-standard printout. 11.9. Adjustment history Contains data on all carried out adjustment processes. The record is carried out automatically. Each entry on adjustment comprises basic data on completed process. Balance menu enables displaying the list of completed adjustment processes, and each report is printable.
  • Page 51: Users

    12. USERS Menu “Users” contains list of balance operators, who are authorized to operate the instrument. The following data can be defined for each balance user:  Name  Code  Password  Access level  Language  Profile  Card no. Adding new user can only be carried out by balance’s Administrator.
  • Page 52: Access Level

    13. ACCESS LEVEL Access level in a balance determines scope of activities that a user can carry out. This menu can only be modified by balance’s Administrator. Anonymous user Balance Administrator can grant access level to a balance user who is not logged in (i.e.
  • Page 53 Databases Balance Administrator is also authorized to set access level required to modifying each of the databases. Procedure: Enter group of parameters < Access level>, select option < Databases>, and set desired access level: Guest, User, Advanced User, Administrator for each of the databases.
  • Page 54: Profiles

    14. PROFILES A Profile is a data pack determining: o functioning of working modes, e.g. parts counting, percent setup, etc., o what data is displayed during working mode operation, o which function keys are active, o which measuring units are accessible o which criteria are mandatory for balance’s speed of operation and measurement stability, Balance software enables creating numerous profiles, which in practice...
  • Page 55: Profile Structure

    Deleting a profile Procedure: Enter balance’s main menu by pressing Setup key, • Enter submenu < Profiles>, • Press and hold an entry with profile name that should be deleted, • A menu is opened with a list. Select option <Delete> from the list, •...
  • Page 56: Settings

    14.2.1. Settings Name On entering this option, the display opens a message box with keyboard. Insert name of a profile and accept it by pressing key. The name is assigned to the profile. Default working mode On entering this option the user can select a specific working mode, which is set as default in a profile.
  • Page 57: Autozero Function

    Caution: in case of precision balances 3Y series the recommended range of filter  is between very fast ÷...
  • Page 58: Measuring Units

    Autozero function: Dosing The function sets autozero operation mode to default one set for dosing mode. Accessible values: NO - autozero operation is automatically disabled on entering dosing mode YES - autozero operation is automatically enabled on entering dosing mode Last digit The function determines visibility of the last decimal place indicated on measurement result.
  • Page 59: Working Modes - General Information

    15. WORKING MODES – general information A balance 3Y series in its standard version features the following working modes: Weighing Means of operation: weight of a load is determined through an indirect measurement. A balance measures gravitational force which attracts the load. An obtained result is processed to a digital format and displayed in a form of measurement result.
  • Page 60: Working Mode Selection

    Pipette calibration Means of operation: calibration of pipettes according to procedures listed in ISO 8655 or according to user requirements. Differential weighing Means of operation: analysis of mass sample change over time. Statistical Quality Control Working mode is intended to carrying out different types of product packing processes and aimed at monitoring and / or controlling the packing process.
  • Page 61: Parameters Related To Working Modes

    15.2. Parameters related to working modes Each working mode has programmable parameters determining its functioning. Procedure of determining these parameters: 1. Press grey coloured workspace area 2. Below menu is displayed: o <Settings> - additional options related to a mode o <Keys>...
  • Page 62: Automatically Opened Door

    3Y.A series. The settings may refer to the quick access keys as well as the infrared proximity sensors located on the overlay of balance’s terminal. Settings for a balance MYA 3Y series cover: o Left door / the option enables changing the position of the door on the left...
  • Page 63 PROCEDURE: 1. Press field with name of a template to be edited(Header – Weighing – Footer) and select variables to be printed 2. If a printout is a non-standard one, create it. o HEADER − Dashes − Working mode − Date −...
  • Page 64 − Client − Warehouse − Product − Packaging − Universal variable 1 … 5 − Dashes − Empty line − GLP report − Signature − Non-standard printout BASIC PRINCIPLES OF USING PRINTOUTS 1. Press PRINT key on balance’s overlay to print variables that are contained in section WEIGHING of the standard printout, and if they are attributed = YES (see above list of variables in printouts).
  • Page 65: Profiles

    Non-standard printout Non-standard printout  a printout may contain: TEXTS and VARIABLES(which are acquired from the software on printout). Each non-standard printout is a separate project, featuring specific name, by which it is identified, and saved in the database of printouts. PROCEDURE: 1.
  • Page 66: Parts Counting

    16. PARTS COUNTING Working mode< Parts counting> enables determining quantity of small parts (objects) with equal part mass. Counting is based on determined mass of a single part, which is: o determined from a reference quantity of parts o acquired from database of products o inserted manually as a numeric value Working mode activating procedure while in the main window, press...
  • Page 67: Additional Settings Of Part Counting Mode

    16.1. Additional settings of part counting mode The additional settings enable adjusting the working mode to user’s needs and requirements. To access the setting follow below procedure: Procedure: 1. Press grey coloured workspace, 2. The display indicates menu of: Settings, Keys, Information, Printout and Profile 3.
  • Page 68: Parts Counting - Quick Access Keys

    − Printout mode / Value release − Printouts Means of using the above functions are given in point 10.8. “Additional parameters on weighing process”. 16.2. Parts counting – quick access keys Each of working modes features a set of default quick access keys, which are automatically displayed on mode activation.
  • Page 69: Acquiring Part Mass From Database

    Total mass of all parts loaded on the weighing pan must not be lower than value • declared in parameter “Minimal reference mass”. Unless this condition is met, the balance displays a message: <Too low sample mass>; Mass of a single part must not be lower than 0,1 of balance’s reading unit. •...
  • Page 70: Part Counting Procedure

    e) Select option <Assign standard>, reference mass is saved in a product record under entry <Mass>. 16.7. Part counting procedure The first step in parts counting mode is obtaining data on mass of a single part. Select one of available options: −...
  • Page 71: Dosing Function In Parts Counting Mode

    Procedure Press grey coloured workspace and press option <Information> • Set Bargraph option to YES, return to parts counting mode • Press grey coloured workspace and press option <Keys> • Assign <Checkweighing thresholds> option to one of the quick access keys •...
  • Page 72 Press < Target Value > key and insert number of parts recognized as • the target value, If tolerance applies, set its value (range between 0 – 100%) • Under the measurement result there is bargraph displayed, containing: • Current number of parts on the weighing pan (marked with colours – see point 16.7.) The value of Target Mass (black marker) Caution:...
  • Page 73: Checkweighing

    17. CHECKWEIGHING Working mode< Checkweighing > enables controlling sample mass using two threshold (Low and High). Usually it is accepted, that mass indication is correct if it is included within the thresholds’ values. Working mode activating procedure while in the main window, press soft key located in the upper bar of the •...
  • Page 74: Use Of Checkweighing Thresholds

    17.1. Use of checkweighing thresholds Use of checkweighing thresholds can be carried out by: − Selection of Product < > for which Low and High thresholds have been already set − Inserting the numeric value of thresholds < >, in this case the thresholds are not referred to any product from database PROCEDURE 1 –...
  • Page 75: Dosing

    18. DOSING Dosing> enables carrying out the sampling process, until Working mode< obtaining a pre-defined target mass. Working mode activating procedure while in the main window, press soft key located in the upper bar of the • display, which opens a submenu <Working modes> with selection of available working modes, select <...
  • Page 76: Use Of Database Of Products In Dosing Process

    18.1. Use of database of products in dosing process When weighing, it is possible to use the value of target mass assigned to a product in the database of products or temporarily determine custom target values of mass. In the database of products, target mass of a product is its mass field.
  • Page 77: Additional Settings Of Dosing Mode

    Caution: If the Target Value is acquired from the Database of Products, then fields Target Value and Tolerance contain data referring to selected product. The data can be edited and modified. 18.2. Additional settings of dosing mode The additional settings enable adjusting the working mode to use’s needs and requirements.
  • Page 78: Percent Setup

    19. PERCENT SETUP Working mode< Percent setup> enables comparing weighed load to a reference mass (standard). The process is expressed in percent [%]. Additionally, the percent setup process can be aided by DOSING and CHECKWEIGHING processes. The supplementary modes and a bargraph are not enabled automatically.
  • Page 79: Comparison Of Sample And (Reference) Mass Standard

    19.1. Comparison of sample and (reference) mass standard Comparison of samples with a mass standard can be carried out through: − Giving mass of a standard, using < Give reference mass> soft key; − Accepting current mass loaded on the weighing pan as a reference mass, using <...
  • Page 80: Checkweighing, Dosing Functions In Percent Setup Mode

    19.2. Checkweighing, dosing functions in percent setup mode Percent setup mode can be aided by checkweighing and dosing functions. Access to the supplementary functions is given by determining corresponding soft keys in the bottom bar of the display. Values of the supplementary functions have to be determined as percentage. Procedure: 1.
  • Page 81: Interpreting The Function By Use Of A Bargraph

    3. If tolerance applies, set its value, 4. Accept by pressing < > key, 5. Press High Threshold key and insert its value in [%], 6. Accept by pressing < > key 19.3. Interpreting the function by use of a bargraph The dosing and checkweighing functions are aided by graphic indication, in a form of a bargraph.
  • Page 82: Density

    The third module is available in balances AS 3Y, XA 3Y and MYA 3Y series. Carrying out the density procedures requires installing an optional density kit (additional equipment) appropriate to a model of used balance.
  • Page 83: Set For Density Estimation Of Liquids And Solid Objects

    20.1. Set for density estimation of liquids and solid objects For balances XA i AS series The set comprises: Beaker basis Hook Weighing pan with Top weighing pan of density stand determining kit for solids Plunger Flexible connector Bottom weighing pan of density Beaker determining kit for solids Thermometer handle...
  • Page 84: Assembly

    The set comprises: Weighing pan with stand Thermometer Bottom weighing pan of density determining kit for Thermometer handle solids Flexible connector Plunger Top weighing pan of density 10 Beaker basis determining kit for solids Additional stand for set of pans Beaker or a plunger Additional set of pans for...
  • Page 85: Determining Density Of Solid Object

    20.3. Determining density of solid object Before starting the procedure, it is necessary to determine parameters of the process, such as: − Type of liquid o Distilled water o Ethanol o Other liquid with determined density − Liquid temperature (required if used liquid is distilled water or ethanol) −...
  • Page 86: Density Determining Of Liquids

    20.4. Density determining of liquids It is determining mass of a plunger if weighed in the air and in tested liquid. The density of tested liquid is calculated according to a formula: − ρ ρ - density of liquid A - plunger mass measured in the air B - plunger mass measured in tested liquid V - plunger’s volume d - air density ( max 0,001 g/cm...
  • Page 87: Density Of Air

    20.5. Density of air Density of air < > is a piece of information required to calculate correction of measurement result related to air BUOYANCY compensation. Another data required in this process is the density of weighed sample. The function of air density determining is enabled only in balances with reading unit lower than d=1mg.
  • Page 88: Additional Settings Of Density Mode

    9. Load aluminium mass standard on balance’s weighing pan and on stabilization of measurement result accept it by pressing < > key, 10. The balance automatically calculates the density of air, and indicates its value on the display, 11. Press < >...
  • Page 89: Printouts

    product record of the database of products. To use this function, before starting the density determining process, using database of product select a product for which the density procedure is carried out (if density has already been determined for this product, it is replaced with new value), o Tare mode, o Printout mode / Value release,...
  • Page 90 − Date − Time − Standard liquid − Temperature − Density of standard liquid − Weighing 1 − Weighing 2 − Density − Volume − Product − Warehouse − Client − Empty line − Dashes − Signature − Non-standard printout o LIQUID −...
  • Page 91: Report On Completed Density Determination Processes

    − Density of steel standard − Density of aluminium standard − Weighing 1 − Weighing 2 − Density − Product − Warehouse − Client − Empty line − Dashes − Signature − Non-standard printout 20.8. Report on completed density determination processes On completing any type of density determining processes, i.e.
  • Page 92: Animal Weighing

    Use of data contained in the header and footer. Should data from header and/or footer be used, follow below procedure: o Press < Print header> soft key before starting density determination procedure, o Carry out density determination procedure  A report is printed automatically on completing the second measurement (Weighing 2), ...
  • Page 93: Setting Of Animal Weighing Mode

    On selecting the animal weighing mode, the display contains the following quick access keys in the bottom bar: 1. Setup – access to balance’s menu 2. Print header – print of data declared in the header 3. Print footer – print of data declared in the footer 4.
  • Page 94: Additional Settings Of Animal Weighing Mode

    Threshold It isa value expressed in mass measuring units. in order to start measurement, the indication has to exceed value set in the threshold. 3. set mode’s operating parameters and return to weighing, 4. load weighed object on balance’s weighing pan and press < >...
  • Page 95: Formulation

    22. FORMULATION Formulation> enables preparing mixtures out of several Working mode< ingredients. The process is conducted automatically. Balance user, while preparing mixtures, can:  use database of formulas, where formula records are stored. In such case, balance’s software assists in weighing ingredients of a mixture by displaying corresponding commands or information in the grey coloured workspace;...
  • Page 96: Additional Settings Of Formulation Mode

    On selecting the formulation mode, the display contains the following quick access keys in the bottom bar: 1. Setup – access to balance’s menu 2. Print header 3. Print footer 4. Formulation – selection of a formulation from corresponding database of formulas 5.
  • Page 97: Formulation - Quick Access Keys

    TOLERANCE: balance software accepts mass of an ingredient if it is within set percent tolerance of total ingredient’s mass (±%) - (data acquired from database of products). THRESHOLDS: the software accepts mass of an ingredient as correct if it is within set thresholds (data acquired from database of products). Selected relation is in effect for all ingredients in the formula making process.
  • Page 98 As each of ingredients must have its name and mass specified, the operator must know the exact composition of the total mixture. Adding a formulation to the database of formulas is carried out from the database level. Procedure: Enter submenu < Databases>, press <...
  • Page 99: Using Formulas In Weighing

    22.4. Using formulas in weighing In activating FORMULATION mode, depending on settings, user can move to formula making process either on selecting a formulation from corresponding database or weigh a mixture “manually”. Preparing mixtures is carried out by: − Preparing a formulation that is not saved in the Database of Formulas – i.e.
  • Page 100 Caution: Formula making process can be aborted at optional moment by pressing <Abort> key. PROCEDURE 2 – Preparing a formulation that is saved in the Database of Formulas. It is the basic option of formula making process. Depending on function settings, it is possible to easily prepare multiple realization of a formulation.
  • Page 101: Printouts

    Press < Formulation> key, • Using list of available formulas, select one for making process, • Press < Formulation with target mass> key, • The software displays a window with keyboard for inserting the target • mass of a mixture, On accepting the inserted value, the software proceeds to formula making •...
  • Page 102: Report On Completed Formula Making Processes

    CAUTION: Data contained in a report and referring to each measurement is set in option <Weighing printout template>. On each report printout, areas dedicated for measurements shall be filled with data with attribute <YES> in the <Weighing printout template>. Content of each of reports: −...
  • Page 103 An example of report on formula making process: -------------- Report on Formulation ---------------- User John Smith Formulation name Mixture 1 Start date 2011.12.16 13:21:40 End date 2011.12.16 13:22:28 Number of ingredients No. of carried out measurements 5 --------------- Measurement 1 --------------- 19.994 g --------------- Measurement 2 --------------- 49.993 g...
  • Page 104: Statistics

    23. STATISTICS Working mode< Statistics> enables acquiring data form a series of measurements and carrying out statistical calculations. The range of statistical data is conditioned by mode’s internal settings. Working mode activating procedure while in the main window, press soft key located in the upper bar of the •...
  • Page 105: Additional Settings Of Statistics Mode

     Pressing < PRINT> key causes releasing a printout and adding a measurement to statistics,  Pressing < Add to statistics> key causes ONLY adding a measurement to statistics without releasing a printout. As in any other working mode, balance user can define custom set of quick access keys and data displayed in the grey coloured workspace.
  • Page 106 Procedure: 1. Press < Statistics> key 2. Displayed options: Result, Print, Delete last, Delete. 3. Select one of available option: − Result, to preview statistics report, − Print, to print report on statistics, An example of report on statistics -------------- Statistics -------------- 455.600 g 50.6222 g 49.939 g...
  • Page 107 Below there is an instance of the chart: − Probability distribution chart – on selecting this option the software generates and displays chart of probability distribution for completed measurement series. Below there is an instance of the chart. The bar chart demonstrates quantities of the same measurement in a series.
  • Page 108: Pipette Calibration

    24. PIPETTE CALIBRATION Balance allows pipette calibration by means of a special balance software or by means of cooperation with computer software “Pipettes” intended for pipettes calibration (workstation for pipettes calibration). Before pipettes calibration a special set must be mounted inside the draft shield. The set is an atypical balance equipment.
  • Page 109 Before pipettes calibration distilled water must be poured into evaporation ring, the amount of water should not exceed 2/3 of the ring height. The set may be operated after about an hour – this period of time is required for moisture stabilisation.
  • Page 110 Balance with dismounted draft shield and mounted calibration set. Thus prepared balance is ready for performance of pipettes calibration process. Working mode < Pipette calibration> dedicated determining measurement errors of volume in piston pipettes, in accordance with standard ISO 8655 or according to user requirements. In case of calibration carried out in accordance with standard ISO 8655, the errors are automatically selected to tested volume, as specified in the standard (see table of errors for standard ISO 8655).
  • Page 111  Relative humidity 50 - 75%  Use distilled water for pipettes calibration processes  A pipette, tips and distilled water should be stabilized for temperature in weighing room. reference norm advises that minimum acclimatization time for above mentioned is 2 hours. While calibrating process, balance user refers to the database of pipettes including data on pipettes, its parameters, tested volume, and values of errors determined for specific volumes.
  • Page 112: Additional Settings Of Pipettes Calibration Mode

    o Systematic error o Random error o Status 24.1. Additional settings of pipettes calibration mode The additional settings enable adjusting the working mode to user’s needs and requirements. To access the setting follow below procedure: Procedure: 1. Press grey coloured workspace, 2.
  • Page 113: Adding A Pipette To The Database Of Pipettes

    24.3. Adding a pipette to the Database of Pipettes Database of pipettes contains list of pipettes’ names and other data including tested volume and errors values for a specific volume. When adding a pipette to the database, first specify its name, and then add other data on a pipette. The software operates intuitively, and commands a user to follow displayed information.
  • Page 114: Printouts

    each field is editable and enables inserting user values, Caution: While in calibration process, the order of tested volumes corresponds to the order in which they are entered. • On setting correct values return to the main window. 24.4. Printouts Option Printouts enables setting the content of a standard printout as well as the non-standard printout.
  • Page 115: Working Mode Activating Procedure

    − Humidity − Pressure − Z coefficient − Measurements and statistics − Statistics − Status − Empty line − Dashes − Signature − Non-standard printout 24.5. Working mode activating procedure Carrying out pipettes calibration process requires installing an adapter for pipettes calibration.
  • Page 116: Report On Completed Calibration Processes

    After setting the above options, go to pipettes calibration process. Follow below pipettes calibration procedure: 1. Press < Select pipette> key; 2. Select a pipette for testing from displayed list; 3. On selecting, the software returns to the main window, and name of selected pipette is visible in the grey coloured workspace;...
  • Page 117 An example of a report on pipette calibration process: ----------- Pipette calibration ----------- User Smith Client Jones Pipette p901\1k Serial no. 7777 No. of channels Channel no. No. of measurements Operation with ISO 8655 Start date 2012.03.15 07:50:44 End date 2012.03.15 07:54:34 Water temperature 22.15 °C...
  • Page 118: Differential Weighing

    (differential weighing). After the final weighing, the balance determines the difference between the two mass values (initial and final). Balance 3Y series, in differential weighing mode enables:  Determining a series, where each series may contain several samples  Assign a name for each weighed sample, print or export data on a series to a connected data storage device;...
  • Page 119: Additional Settings Of Differential Weighing Mode

    Setup – access to balance’s menu 2. Series 3. Sample 4. Weighing A 5. Weighing B 6. Weighing T+A 7. Delete value 25.1. Additional settings of differential weighing mode The additional settings enable adjusting the working mode to user’s needs and requirements.
  • Page 120 Below list provides the functions of only those soft keys, that are absent in working mode “Weighing” Weighing A Start sampling of initial mass <A> of the sample. The process is carried out as an separate activity. Weighing (T+A) Start weighing a container for the sample (tarring) with automatic, carried out instantly after tarring, sample’s weighing process (non- separable activities).
  • Page 121: Introducing A Series To The Database Of Series

    25.3. Introducing a series to the Database of Series Database of series comprises series and samples which are components of a series. While creating a series, first set its name, and then add samples to the created series. The software operates intuitively, and commands a user to follow displayed information.
  • Page 122 SELECTING a series: Press quick access key <SERIES>. A window is displayed with database of series. On entering the database, press field with name of a series. It is automatically selected for completing. Name of the selected series is displayed in the grey coloured workspace (only if such information is enabled for displaying in the grey coloured...
  • Page 123 Weighing A On selecting an option, the balance moves to the first sample on the list, for which weighing <A> is still to be carried out. If there are no such samples in a series, the balance displays a message that such process is inaccessible.
  • Page 124 Follow above procedure and weigh the following samples. The process can be aborted by pressing < > key. Weighing T On selecting the option, the balance moves to the first sample in the list, for which weighing <T> is not completed. If there are no such samples in a series, the balance displays a message that such process is inaccessible.
  • Page 125 Caution: If option <Ambient conditions> in the working mode is disabled – set to <No>, the software skips this part of the process. On accepting the ambient conditions by pressing < > key, the software returns to the mode’s main window and displays a command on unloading the sample from the weighing pan (displayed in the message bar).
  • Page 126 The opened window contains the following data: In case the following procedure is completed for a sample: • weighing A only, then tare value is <0>, • weighing T only, then value of weighing A is <0> • weighing T+A, then for tare and weighing A the mass values are assigned. Data on a weighed sample can be printed on a connected printer on pressing a pictogram with a printer on display’s upper bar.
  • Page 127 of <3> from all samples in a series, for which this measurement is available (a condition is competing Weighing A for the sample). During process course the bottom bar and the workspace display data on the following steps that a user should follow. In case tare is assigned to a sample, then its value is indicated on the displayed with minus sign.
  • Page 128: Copy Tare

    25.5. Copy tare The option enables copying once selected tare value in a series to all samples which do not have tare value assigned, and for which differential weighing process (status other than Weighing B) is not completed. Means of operation: Press key Which displays list of samples for which tare value is assigned.
  • Page 129: Deleting A Value

    25.7. Deleting a value The option, in case of an error, enables deleting last weighing record added to the database. It applies to all processes in the working mode. The software enables deleting only the last carried out measurement. On accidental saving a weighing record (sample or tare), i.e.
  • Page 130 Content of a printout of samples: − Dashes − Sample − Sample no. − Status − Tare − Temperature − Humidity − Pressure − Non-standard printout − Weighing A • Weighing A • Date • Time • Level status • Warehouse •...
  • Page 131: Statistical Quality Control - Sqc

    26. STATISTICAL QUALITY CONTROL – SQC Working mode < Statistical Quality Control > is intended to carrying out different types of product packing processes and aimed at monitoring and / or controlling the packing process. It enables detecting excess or lack of product quantity in a packaging.
  • Page 132: Working Mode Activating Procedure

    26.1. Working mode activating procedure Procedure: while in the main window, press soft key located in the upper bar of the • display, which opens a submenu <Working modes> with selection of available working modes, select < SQC>, mode, the software automatically returns to the main •...
  • Page 133 Caution: Data on a product, listed in the below table, have to be filled in before starting a control: Mass Nominal mass of a product Tare Packaging mass in the adjustment unit Value of –T1 error (specified in % of nominal mass) Value of +T1 error (specified in % of nominal mass) Unit Measuring unit of a product: [g]...
  • Page 134: Additional Settings Of The Sqc Mode

    26.2. Additional settings of the SQC mode The additional settings enable adjusting the working mode to user’s needs and requirements. Access to these settings is described below. Procedure: 1. Press grey coloured workspace 2. The display indicates menu of: Settings, Keys, Information, Printout , Batch and Profile, 3.
  • Page 135: Report On Product Control

    Messages displayed during a control process: Batch quantity 1 - A command on process course and the quantity / 10 of all measurements in a tested batch Product - Name of the controlled product Average - Average mass of the controlled product Standard - Standard deviation from a controlled batch deviation...
  • Page 136 ---------Measurement 5 --------------- 50.053 g ---------Measurement 6 --------------- 50.030 g ---------Measurement 7 --------------- 50.012 g ---------Measurement 8 --------------- 50.029 g ---------Measurement 9 --------------- 50.007 g ---------Measurement 10 ------------- 50.008 g Number of T2- errors Number of T1- errors Number of T1+ errors Number of T2+ errors Average 50.0194 g...
  • Page 137: Prepackaged Goods Control

    27. PREPACKAGED GOODS CONTROL (mode not available in balance’s standard version) < PGC> mode operates packed goods control (single stand control or multi- stand control) supported by a database containing products and users. A control initiated from a balance is automatically switched of after a pre-set number of packages (samples) has been controlled.
  • Page 138: Control Settings

    Start control 27.2. Control settings CAUTION: Before entering control settings the user must log in following the login procedure. button located in a < PGC> mode window to open control settings Press window: Where: Selction of a product from a database Batch number Control start - 138 -...
  • Page 139: Local Settings Of Pgc Mode

    27.3. Local settings of PGC mode Local settings of < PGC> mode are available upon clicking grey-coloured information field located in a main window of PGC mode. Switch on/off option of avarage Average tare estimation tare estimation before control activation. 27.4.
  • Page 140 List of data defined for control: Pictogram Data Description Name Name Code Product code EAN code Product EAN code Mass Product nominal mass Tare value of a product (pre-set Tare automatically while selecting a product out of the database) Control type: Non-destructive average tare, Non-destructive empty...
  • Page 141 List of data for internal criteria • Internal control Internal control criteria on <YES> / off <NO> Sample quantity Sample quantity value for a product Error value of marginal negative T (-T) given in unit of product nominal mass Qn. Error value [- T] Measurements lower than value of Qn-T are regarded as valid.
  • Page 142: Control Start Procedure

    27.6. Control start procedure To start control: a user with corresponding access level should be logged in. • Caution: Logging procedure and access levels are described in chapter 8 – LOGGING. Select appropriate product with correctly entered data, when the data is •...
  • Page 143: Abort Control Procedure

    Press START located in a bottom part of a parameters settings • window. Program shall proceed to the main window of product control, used for entering data. Caution: If before control: Load has not been removed from the weighing pan or if other requirements •...
  • Page 144: Non-Destructive Average Tare Control Mode

    Aborted control restoring procedure, power loss case Program keeps records of control results continuously, this prevents loss of data (for control being in progress) in case of disconnection from mains. For power loss case the program allows to complete an aborted control upon reconnection to mains.
  • Page 145 Where: Product - Product name - Condition value 0,25T , given in [g] - Average mass of a packaging, given in [g] - Standard deviation - Negative errors T1 characteristics per sample - Negative errors 2T1 characteristics per sample - Net mass of a controlled packaging - Tare of a packaging - Control status of a packaging Load...
  • Page 146 Press buton to proceed to control without saving to product data the newly estimated average packaging mass. Press buton to proceed to control with saving to product data the newly estimated average packaging mass. Measurements results are analysed continuously during control, they are displayed in respective fields: Where: Bargraph...
  • Page 147 - Nominal value of a controlled product - Average mass of a controlled product - Value of disqualifying average - Negative errors T characteristics per sample: -9g – value of negative error T, T Max – tolerable number of negative errors T, n - actual number of negative errors T - Negative errors 2T characteristics per sample: -18g - value of negative error 2T,...
  • Page 148 Work pane • Upon pressing button the work pane takes form of a graph with measurements results: Press button again to switch the graph off. Information about control • Upon pressing button respective window with information on control settings is displayed: Window for control in progress: - 148 -...
  • Page 149 Press button to see a window with measurements performed for actual control: Upon control completion summary of the process is generated, control is automatically saved to database: - 149 -...
  • Page 150: Non-Destructive Empty - Full Control Mode

    Press button to print report on a printer connected to the balance. Press to get back to setting window of < PGC> mode without printing the report. Caution: For cooperation with < E2R System> summary process message shall not contain a query for report printout. All data are automatically sent to a computer program, report may be printed by means of a computer.
  • Page 151 Where: Product - Controlled product name Code - Controlled product code - Controlled product nominal value - Controlled product average mass - Disqualifying average value Negative errors T characteristics per sample Negative errors 2T characteristics per sample - Net mass of controlled product - Packaging tare - Control status Load empty...
  • Page 152: Destructive Empty-Full And Full-Empty Control Mode

    27.10. Destructive empty-full and full-empty control mode In the “destructive” control mode independently on the size of product lot over 100 pieces, the sample set by the software for testing is always 20 pieces. The other control assessing criteria are set in accordance with the regulation. After using the list to select a product with set parameters for destructive control with determined measuring “match”...
  • Page 153 Where: Product - Controlled product name Code - Controlled product code - Controlled product nominal value - Controlled product average mass - Disqualifying negative average value - Disqualifying positive average value - Negative errors T characteristics per sample (according to point 30.6 of this manual) - Negative errors 2T characteristics per sample (according to point 30.6 of this manual) - Positive errors T characteristics per sample:...
  • Page 154: A Report On Determining Average Tare Value

    27.12. A report on determining average tare value An example of a report: Report on average tare: U/22/08/12/14/21/T ---------------------------------------- Balance type PS 3Y Max capacity 1000 g Reading unit 0.001 g Balance ID 9908684 Date 2012.08.22 14:21:10 Product Tare 10.0002 g 0.25 T1 0.225 g No.
  • Page 155: A Report On Product Control

    27.13. A report on product control An example of a report: ----- PCG Report: U/22/08/12/14/22 ----- ---------------------------------------- Balance type PS 3Y Max capacity 1000 g Reading unit 0.001 g Balance ID 9908684 Start date 2012.08.22 14:20:11 End date 2012.08.22 14:22:35 User Product Batch no.
  • Page 156: Mass Control

    28. MASS CONTROL Working mode < Mass control> enables controlling mass of a product that is automatically batched (dosed) onto the balance’s weighing pan by an automatic feeder PA-02/H that is connected to the balance. The working mode automatically controls a complete batch of tested product after determining its quantity.
  • Page 157 • Set batch quantity of a carried out mass control process – touch grey coloured workspace on balance’s display to open a window and select group < Settings>. Next select option < Batch quantity> for entering quantity of controlled units in a current automatic mass control process.
  • Page 158: Printouts

    − Average − Standard deviation − Number of T1- errors − Number of T1_ errors • On completing the measuring process for a specific batch, the balance generates a report that is printed on a printer connected to the balance, and simultaneously saved on the corresponding database.
  • Page 159: Report On Completed Mass Control Processes

    − Report no. − User − Product − Start date − End date − Batch no. − Standard quantity − Nominal mass − Threshold T2- − Threshold T1- − Threshold T1+ − Threshold T2+ − Measurements − Quantity of errors T2- −...
  • Page 160: Databases

    29. DATABASES Software of balances 3Y series features the following databases < >: PRODUCTS WEIGHING RECORDS CLIENTS FORMULATION REPORTS FROM REPORTS FROM FORMULAS DENSITY CONTROLS AVERAGE TARE PIPETTES PIPETTE CALIBRATION SERIES SQC REPORTS REPORTS MINIMUM SAMPLES MASS CONTROLS AMBIENT CONDITIONS...
  • Page 161: Processes Carried Out On Databases

    29.1. Processes carried out on databases Databases can be operated only by an authorized personnel. In order to edit databases proceed as follows: Press and hold for a moment a button with a respective database icon Wait to see a database menu Select one of available options (options depend on a database type) Options description: −...
  • Page 162: Products

    The following processes can be carried out in almost any of databases: 1. Adding entry to a database < > 2. Searching for a record in a database by name < > 3. Searching for a record in a database by code < >...
  • Page 163 10. Tare [product’s tare value, set automatically on selecting a product from the database] 11. Price [Unit price of a product] 12. PGC mode [control mode (Non-destructive average tare, Non- destructive empty – full, Destructive full – empty, Destructive empty – full)] 13.
  • Page 164: Weighing Records

    29.3. Weighing records Each measurement result sent from a balance to a printer or a computer is saved in the database of weighing records (see an exception – point 10.8. – Result control). Balance user can preview data from each weighing record. Procedure: Enter submenu <...
  • Page 165: Clients

    29.4. Clients Database of Clients contains name of Clients for whom the measurements are carried out. Procedure Enter submenu < Databases>, and press < Clients> field • Press < Add > key • If a client already exists in the database of clients, press field with its name •...
  • Page 166: Reports On Density

    Report’s name consists of date and time of its creation, e.g.: • 2011.10.12 15:12:15 Caution: It is possible to use an option for searching a report on formulation. List of parameters in a report on formulation: 1. Start date 2. End date 3.
  • Page 167: Controls

    9. Standard liquid [name of liquid used for determining density measurement of solid object] 10. Standard liquid density [density determination of solid object] 11. Temperature [temperature of liquid used for carrying out a measurement, density determination of solid object] 12. Plunger volume [density determination of liquid] 13.
  • Page 168: Average Tares

    2. Result [status (result) of a control] 3. Start date [date of control start] 4. End date [date of control end] 5. Product [name of a controlled product] 6. User [name of a user carrying out the control] 7. Average [average value from carried out measurements] 8.
  • Page 169: Pipettes

    List of parameters defined for a control: 1. Product [name of a product which packaging is checked for average tare determining process] 2. Status [status (result) of a process] 3. Date [date of carried out process] 4. Tare [determined value of packaging tare] 5.
  • Page 170: Reports From Pipette Calibration Processes

    29.11. Reports from pipette calibration processes Reports contain data on completed pipette calibration processes. In case of multichannel pipettes, the reports are generated for each channel separately. Each report can be previewed, searched by date, exported or printed. Procedure Enter submenu < Databases>, and press <...
  • Page 171: A Report On Sqc

    If a series already exists in the database, press field with its name to edit • data that is optionally editable List of parameters defined for a series: 1. Name 2. Code 3. Client 4. Samples 5. Number of samples 29.13.
  • Page 172: Minimal Sample Weight

    The database of minimal sample weight contains data on declared methods and minimal sample weight for a balance. Caution: Only authorized RADWAG personnel can enter new minimum sample records or make changes in minimum sample records stored in the database. Procedure Enter submenu <...
  • Page 173 It informs on the approaching expiry of the minimum sample. Contact RADWAG representative to carry out necessary changes in minimum sample settings. 5. Limits – option that enables entering data on the mass value of a...
  • Page 174: Mass Controls

    Example no. 2 a balance AS 220.3Y: Tare value Minimum Means of operation sample 220.0000 g 0.5000 g The minimum sample refers to all net weighments that are weighed in a packaging with optional mass from full measuring range of a balance (the <TARE> button applied), as well as on weighing samples without the packaging (the <TARE>...
  • Page 175 Procedure: Enter submenu < Databases> in accordance with point 27 of this user • manual, Enter < Mass Controls > database and select a desired control record. • List of parameters defined for a mass control: A report on mass control features the following data: Batch number Number of a batch under control Start date...
  • Page 176: Ambient Conditions

    29.16. Ambient conditions Database of ambient conditions contains parameters related to measurement of ambient conditions at a workstation. Depending on balance’s configuration, a report may contain data on temperature, humidity and value of atmospheric pressure. In case a THB ambient conditions module is connected to a balance, records from the module are also saved.
  • Page 177: Printouts

    If a warehouse record already exists in the database, press field with its • name, and insert identifying data. Caution: It is possible to use an option for searching a record by name or code. 29.19. Printouts Database of Printouts contains all saved NON-STANDARD printouts. Each non- standard printout features a name, code and a so called template.
  • Page 178 1 – enlarging the editing field (7), recommended while using an external computer keyboard connected to balance’s USB port 2 – cancelling key 3 – accepting key 4 – download a printout template from a file 5 – list of variables for use while designing a printout 6 –...
  • Page 179: Universal Variables

    29.20. Universal variables Universal Variables are a set of alphanumerical data which are combined with printouts, products or other information related to weighing. Each variable should have its name, code and value specified. Procedure Enter submenu < Databases>, and press < Universal variables >...
  • Page 180 <Data selection> allow the user to specify which data related to measurement are to be exported. Set option and click <Export weighings>, software will automatically • export weighing database, Upon completion a respective message, information on number of • exported data and the file name (with file extension *.txt) will be displayed, next the software returns to the previous window.
  • Page 181: Delete Database

    A created file name consists of database name and balance serial number, • e.g. <Weighing date_2602776.txt>. Unplug the data storage device from the USB port . • Created file template: The file is created in a form of chart, columns of which are separated with <Tab>.
  • Page 182: Delete Weighments And Reports

    29.21.3. Delete weighments and reports Function allows to delete a given database weighments and reports. Upon activation of this function the software displays a window with a numeric keyboard. Use the keyboard to enter a date specifying which data is to be removed (data older than those specified by a date).
  • Page 183: Communication

    30. COMMUNICATION Menu Communication is located in a menu group Parameters. It is accessed by pressing Setup key or < Setup > quick access key. The balance enables communicating with peripheral devices through the following ports: COM 1 (RS232), • COM 2 (RS232), •...
  • Page 184: Peripheral Devices

    connection on a specified port, and the client establishes connection with a server. Procedure of setting a port for “TCP” protocol: Enter group of parameters < Communication>, − Select: „ Tcp / Port” which opens a window <Port> with on-screen −...
  • Page 185: Printer

    31.2. Printer Balance submenu< Printer > enables: − Setting communication port with a printer, − Defining printer’s code page, (default 1250) − Defining controlling codes for PCL printer or EPSON label printer CAUTION: codes must be entered in a hexadecimal form −...
  • Page 186 If on the printout in the place of the last digit there are any unexpected signs (for verified balances), than <CONTROL CODES> parameter should incorporate, apart from code page, code of the UK signs chart: 1B5203. In such a case the < CONTROL CODES> parameter setting should be as follows: control codes - 1B74121B5203 A printout standard is a description of how to print information from databases.
  • Page 187: Barcode Scanner

    31.3. Barcode scanner The balance enables cooperating with barcode scanners, which are used to quick searching for a product in the database of products. Connection to a barcode scanner is configured in submenu < Barcode Scanner>. Available options: Setting communication port with a barcode scanner, •...
  • Page 188: Additional Display

    Caution: For correct balance’s cooperation with a transponder card reader set appropriate baud rate value in submenu < Communication> (default 9600b/s). Transponder card scanner port. The balance enables communicating with a transponder card scanner using the following ports: RS 232 (COM1), •...
  • Page 189: Ambient Conditions Module

    38400 bits/s for a port having the additional display plugged. 31.6. Ambient conditions module A balance 3Y series enables connecting an ambient conditions module THB series using ports COM 1 or COM 2. Ensuring correct cooperation between the balance and the ambient conditions module requires entering module connection address and the baud rate of port to which the THB module is plugged.
  • Page 190: Inputs / Outputs

    32. INPUTS / OUTPUTS Application of inputs: The set of inputs is used to control balance’s operation. Each of 4 inputs is connectable to the following functions or keys: o Checkweighing thresholds o Right door o Target value o Parameters o Profile o Statistics o Adjustment/Calibration...
  • Page 191 Application of outputs: The set of outputs is used to SIGNAL the status of measurement result. Change of logic status of the output system, e.g. from [0] to [1] takes place on meeting a requirement assigned to the output. Each of 4 outputs is connectable to the following data: Available options Balance status, which switches the logic of output...
  • Page 192: Other Parameters

    33. OTHER PARAMETERS This menu contains global parameters on balance operation, such as: language, date-time, beep sound, display calibration, level control. Enter submenu<Others>, by pressing key and < Other> key. 33.1. Interface language Procedure Enter submenu < Others>, press < Language>...
  • Page 193: Touch Panel Calibration

    33.5. Level control Balance 3Y series features an Automatic Level Control system. In case of non- verified instruments, the operation of Automatic Level Control system is user defined. In case of verified instruments, the settings are hidden and they operate in accordance with factory settings, i.e.
  • Page 194: Sensor Sensitivity

    33.6. Sensor sensitivity The parameter is adjustable between 0 – 9, and it determines the distance from which the IR proximity sensors should react. As standard, the sensitivity is set within the range of 5 to 7. Procedure: Enter submenu< Others>...
  • Page 195 ambient conditions at a workstation. The function provides a user with data on the best possible balance settings for obtaining the highest measurement repeatability and the shortest measurement time with acceptable value of repeatability. Test results are not stored in balance’s memory. Exiting function causes erasing the test results.
  • Page 196 Filter Very slow Value release Reliable Repeatability 0.0207 g Stabilization time 5.015 s Signature ........PROCEDURE: On function activation, the software initiates the process automatically. The display indicates progress of the process course. On completing the process, the software displays a summary and marked values of currently set filter values. The report can be printed.
  • Page 197 Example of a report: ............. --------- Autotest GLP: Report --------- Balance type PS 3Y Balance ID 400010 User Admin Software rev. L0.0.21 S Date 2012.01.16 Time 09:17:16 ---------------------------------------- Number of measurements Reading unit 0.001/0.01 g Internal weight mass 1402.094 g Filter Average Value release...
  • Page 198: Start Logo

    The parameter enables generating a special type of a file that is automatically saved on option enabling on a data storage device plugged to balance’s USB port. The file is used by RADWAG service for diagnosing any potential problems occurring during balance operation. Procedure: •...
  • Page 199: Update

    34. UPDATE The function contains two modules which enable updating: o Area of a user: SOFTWARE o Metrological parameters: WEIGHING MODULE. Updating process takes place automatically by loading data from a data storage device connected to balance’s USB port. Procedure o Prepare a data storage device with update file.
  • Page 200: Communication Protocol

    General information A. A character based communication protocol balance-terminal is designed for establishing communication between a RADWAG balance and a peripheral devices via RS 232 interface. B. It consists of commands sent from a peripheral device to the balance and responses from the balance..
  • Page 201: Responses Format For Commands Sent From Computer Level

    Send all implemented commands Caution: 1. Each command must end with CR LF characters; 36.2. Responses format for commands sent from computer level On receipt of a command, the terminal sends a response in one of the following formats: XX_A CR LF command understood and in progress command carried...
  • Page 202 Tare the balance Format: T CR LF Accessible responses: T_A CR LF - command understood and in progress T_D CR LF - command carried out T_A CR LF - command understood and in progress T_v CR LF - command understood but tarring range exceeded T_A CR LF - command understood and in progress T_E CR LF...
  • Page 203 Frame format: 7-15 17 18 19 20 21 stability S space space character mass space unit CR LF marker Example: S CR LF – command sent from a computer S _ A CR LF - command understood and in progress S _ _ _ _ - _ _ _ _ _ _ 8 .
  • Page 204 Where: - weighing platform number mass - 9 characters with right justification unit - 3 characters with left justification Example: In case there are two weighing platforms. S I A CR LF – command sent from a computer P 1 _ ? _ _ _ _ _ _ 1 1 8 . 5 _ g _ _ CR LF P 2 _ _ _ _ _ _ _ _ _ 3 6 .
  • Page 205 Frame format 1 2 3 7-15 17 18 19 20 21 S U I stability space sign mass space unit CR LF Example: S U I CR LF – command from a computer S U I ? _ - _ _ _ 5 8 . 2 3 7 _ k g _ CR LF - command carried out, immediate response of mass value in current measuring unit Where: _ - space Switch on continuous transmission in basic measuring unit...
  • Page 206 Switch off continuous transmission in current weighing unit Format: CU0 CR LF Accessible responses: CU0_I CR LF - command understood but not accessible at this moment CU0_A CR LF - command understood and in progress Set low checkweighing threshold LO DH_XXXXX CR LF, where XXXXX –...
  • Page 207 Set mass value of a single (only for PARTS COUNTING) SM_XXXXX CR LF, where: _ - space, XXXXX – mass format Format: Accessible responses: SM_OK CR LF - command carried out SM_I CR LF - command understood but not accessible at this moment (e.g.: other working mode, not PARTS COUNTING) ES CR LF...
  • Page 208: Manual Printout / Automatic Printout

    Accessible responses: PC_A_”Z,T,S,SI,SIA,SU,SUI,C1,C0,CU1,CU0,DH,ODH,UH,OUH,OT,UT, LOGIN,LOGOUT,PC" – command carried out, terminal has sent all implemented commands. 36.3. Manual printout / Automatic printout Balance 3Y series enables generating manual or automatic printouts. Manual printout: press key on stabilization of indication • (measurement result), Automatic printout is generated automatically, in accordance to the settings •...
  • Page 209 Format of mass printout: 4 -12 stability space character mass space unit marker Stability marker [space] if stable [?] if unstable [!] air buoyancy compensation mode is enabled [^] if error of exceeding range to + occurs [v] if error of exceeding range to – occurs Character [space] for positive values [-] for negative values...
  • Page 210: Connecting Peripheral Devices

    37. CONNECTING PERIPHERAL DEVICES Balances 3Y series can cooperate with the following peripheral devices: Computer, • Receipt printer: KAFKA, EPSON, • PCL printer PCL, • Additional display, • Barcode scanner, • An optional peripheral device operating in communication protocol •...
  • Page 211: Error Messages

    Cable: IN / OUT 39. ERROR MESSAGES Err2 Value beyond zero range, Err3 Value beyond tare range, Err8 Tarring / Zeroing operation time exceeded, -NULL- Zero value from converter, -FULL- Measurement range (Max. capacity) exceeded, -LH- Start mass error, -no level- not levelled balance -Err 100- weighing module restart In process in-course process resulting in unstable measurement (automatic feeder –...
  • Page 212: Additional Equipment

    40. ADDITIONAL EQUIPMENT Type Name P0136 RS232 cable for KAFKA printer P0151 RS232 cable for EPSON printer KAFKA Thermal printer EPSON Dot matrix printer CITIZEN Label printer PCL printer WD- xx Additional display in plastic housing CK-01 Transponder card scanner LS2208 Barcode scanner AP2-1...
  • Page 213: Appendix A - Variables For Printouts

    41. APPENDIX A – Variables for printouts 41.1. List of variables Caution: Each of defined variables must be contained in braces: {x}, where x – stands for variable number. List of variables is accessible in the system for defining the look of standard printout templates and data displayed in the grey coloured workspace: Symbol Variable description...
  • Page 214 {30} Gross value {31} Weighing platform no. {32} Factory no. {33} Balance reading unit {34} Range {35} Parts counting: Mass of a standard {36} Percent setup: Reference mass {38} Universal variable: Name {39} Universal variable: Value {43} Net mass in supplementary unit {44} Supplementary unit {45}...
  • Page 215 {76} User: Code {77} User: Access level {80} Packaging: Name {81} Packaging: Code {82} Packaging: Mass {85} Client: Name {86} Client: Code {87} Client: VAT no. {88} Client: Address {89} Client: Postal code {90} Client: City {91} Client: Discount {100} PGC Report: Batch number {101} PGC Report: Start date...
  • Page 216 {122} Average Tare Report: Standard deviation {123} Average Tare Report: 0,25T1 {124} Average Tare Report: Number of measurements {125} Average Tare Report: Measurements {126} Average Tare Report: Report no. {130} Warehouse: Name {131} Warehouse: Code {132} Warehouse: Description {141} Additional display: WD {142} Additional display: WWG {143}...
  • Page 217 {188} Ingredient: Target mass {189} Ingredient: Difference {190} Comparator: Report no. {191} Comparator: Start date {192} Comparator: End date {193} Comparator: Order no. {194} Comparator: Tested standard no. {195} Comparator: Difference {196} Comparator: List of Measurements {197} Comparator: Mean difference {198} Comparator: Standard deviation {199}...
  • Page 218 {226} Mass control: Measurements {227} Mass control: Report no. {228} Mass control: Number of T2M error {229} Mass control: Number of T1M error {230} Mass control: Number of T1P error {231} Mass control: Number of T2P error {232} Mass control: T2- threshold {233} Mass control: T1- threshold {234}...
  • Page 219 {276} Ambient conditions report: Temperature THB {277} Ambient conditions report: Humidity THB {278} Ambient conditions report: Temperature 1 {279} Ambient conditions report: Temperature 2 {280} Ambient conditions report: Pressure THB {281} Ambient conditions report: Air density {282} Ambient conditions report: Humidity {283} Ambient conditions report: Pressure {285}...
  • Page 220 {325} Pipette calibration report: Serial no. {326} Pipette calibration report: Start date {327} Pipette calibration report: End date {328} Pipette calibration report: Number of measurements {329} Pipette calibration report: Operation with ISO 8655 {330} Pipette calibration report: Status {331} Pipette calibration report: Temperature {332} Pipette calibration report: Humidity {333}...
  • Page 221 {367} Weighing B: Difference % {368} Weighing B: Residue % {369} Weighing B: Number {375} Differential weighing: Method {380} Drying program: Name {381} Drying program: Code {385} Drying mode {386} Drying mode parameters {387} Finish mode {388} Finish mode parameters {389} Drying report: Unit {390}...
  • Page 222: Variables Formatting

    {415} SQC : Measurements {416} SQC : Mean [%] {417} SQC : Standard deviation [%] {418} SQC : Number of T2- errors {419} SQC : Number of T1- errors {420} SQC : Number of T1+ errors {421} SQC : Number of T2+ errors {422} SQC : T2- limit {423}...
  • Page 223 Special formatting signs: Sign Description Example {7,10} – Net mass in adjustment Sign separating variables for formatting unit with constant length of 10 characters, with right justification Minus sign or left justification {7,-10} – Net mass in adjustment unit with constant length of 10 characters, with left justification {7:0.000} –...
  • Page 224: Appendix D - Settings Of Citizen Printer

    Application list of formatted variables: CODE DESCRIPTION {7:V6.3} Net mass in EAN 13 code (6-character code) {7:V7.3} Net mass in EAN 13 code (7-character code) {27:V6.3} Net value in EAN 13 code (6-character code) {27:V7.3} Net value in EAN 13 code (7-character code) {7:T6.3} Net mass in EAN 128 code {8:T6.3}...
  • Page 225: Appendinx E - Settings Of Zebra Printers

    5. Should a barcode be recognized by a balance, it needs to have some particular features. A code requires programming a characteristics prefix and suffix. In a standard accepted by RADWAG, a prefix is a sign (byte) 01 hexadecimal and a suffix is a sign (byte) 0D hexadecimal.
  • Page 226: User Adjustment

    Barcode Barcode with required prefix and without Code suffix in hexadecimal format required –fixes type in ASCII format 01 30 30 32 31 30 31 32 36 0D 00210126 EAN-8 01 30 31 32 33 34 35 36 37 38 39 0D 0123456789 KOD 2 Z 5 01 43 4F 44 45 20 33 39 20 54 45 53 54 0D...
  • Page 227 » Non-standard printout No / Yes Displays a report on Adjustment history completed external adjustments Databases Products − Weighing records − Clients − Formulation − Reports from formulas − Reports from density − Controls − Average tares − Pipettes − Pipette calibration reports −...
  • Page 228 Port 4001 Peripheral devices Description Value Computer » Port COM 1 » Address Continuous » No / Yes transmission » Printout template Settings » E2R System Settings Printer » Port COM 2 » Code page 1250 » Printouts Settings Barcode scanner »...
  • Page 229 » Output 1 Selection » Output 2 Selection » Output 3 Selection » Output 4 Selection Access level Description Value Anonymous user » Guest Selection » User Selection » Advanced user Selection » Administrator Selection Date and time » Guest Selection »...
  • Page 230 Others Description Value Language Selection Date and time Settings Beep Selection Touch panel calibration Function Level control Selection Autotest Selection User manual no.: IMMU-02-03-04-14-ENG - 230 -...
