4.1.2 Tools

The following table indicates the tools recommended for use for disassembly,
reassembly and adjustment.
Table 4-1. List of Tools
Tool Name
Phillips Screw Driver, No.1
Phillips Screw Driver, No.2
Flathead Screwdriver
Tweezers
Needle nose pliers
Nipper
Acetate Tape
PF Tension Measuring Tool
Penlight
Note : All of the tools listed above are commercially available. EPSON provides the tools
listed with EPSON tool code.

4.1.3 Screws

The following table lists the screws used in this product. When disassembling and
reassembling the printer, refer to the following table and use the specified screws in the
specified positions.
Table 4-2. List of Screw Types
No. Name
1) C.B.P. M3x10
3) C.B.S. (P2) M3x10
5) C.B.S. M3x8
7) C.B.P. M2.6x8
9) C.B.P. M3x6
11) C.C. M3x4
13) C.B.P. M2.6x5
Disassembly And Assembly
Code
1080530
-
-
-
-
-
-
1294120
-
No. Name
2) C.B.S. M3x6
4) C.B.P. M3x8
6) C.B.S. (P4) M3x8
8) C.B.S. (P4) M3x6
10) C.B.S. M3x10
12) C.P.B. (P1) M1.7x5
14) C.B.P. M2.6x5

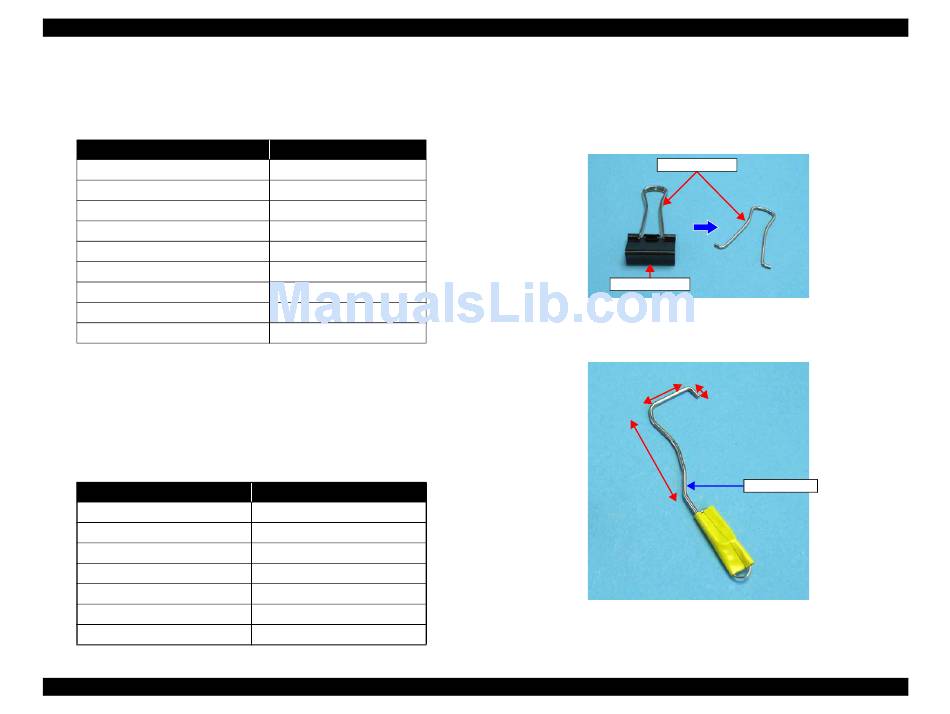

4.1.4 Making a Special Tool for CSIC Board

If using the special tool below, the CSIC Assy (refer to p.94) can be easily removed.
The method for making the tool is described below.
1. Prepare a handle part of a clip, or a similar metal wire piece.
Figure 4-1. Making the Special Tool for CSIC Board (1)
2. Bend the metal wire as shown below.
50mm
Figure 4-2. Making the Special Tool for CSIC Board (2)
Overview
Handle part
Clip
7mm
25mm
Special Tool
Special Tool
