EPSON Stylus Photo R1900/R2880/R2000
8. Peel off a piece of acetate tape and disconnect the CSIC FFC from the connector
on the CSIC Board.
9. Disengage the Cable Holder from the hook and remove it.
Cable Holder
Acetate tape

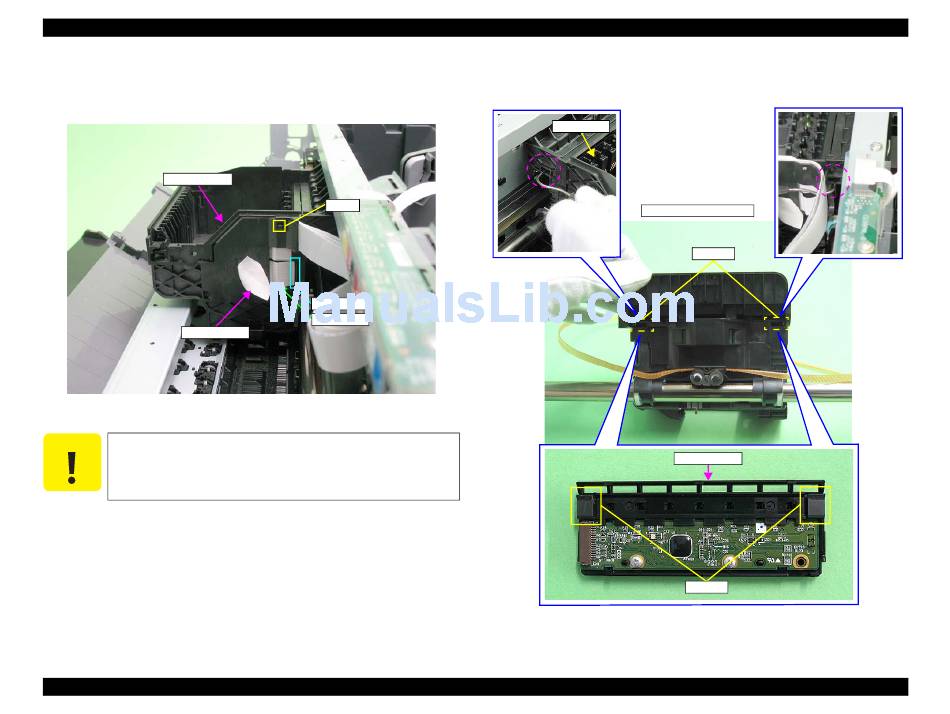

Figure 4-55. Removing the CSIC Assy (1)
Before performing the following procedure, be sure to disconnect
C A U T I O N
the CSIC FFC from the connector on the CSIC board. If not, the
CSIC Assy can not be removed, and the CSIC FFC may be
damaged.
Disassembly And Assembly
10. Using the special tool (see p.71) disengage the two hooks of the CSIC Assy on the
Hook
Connector
CSIC FFC
Disassembling the Printer Mechanism
right and left on the rear of the Carriage Unit and remove the CSIC Assy upward.
CSIC Assy
Rear of Carriage Unit
CSIC Assy
Figure 4-56. Removing the CSIC Assy (2)
Revision E
Hooks
Hooks
