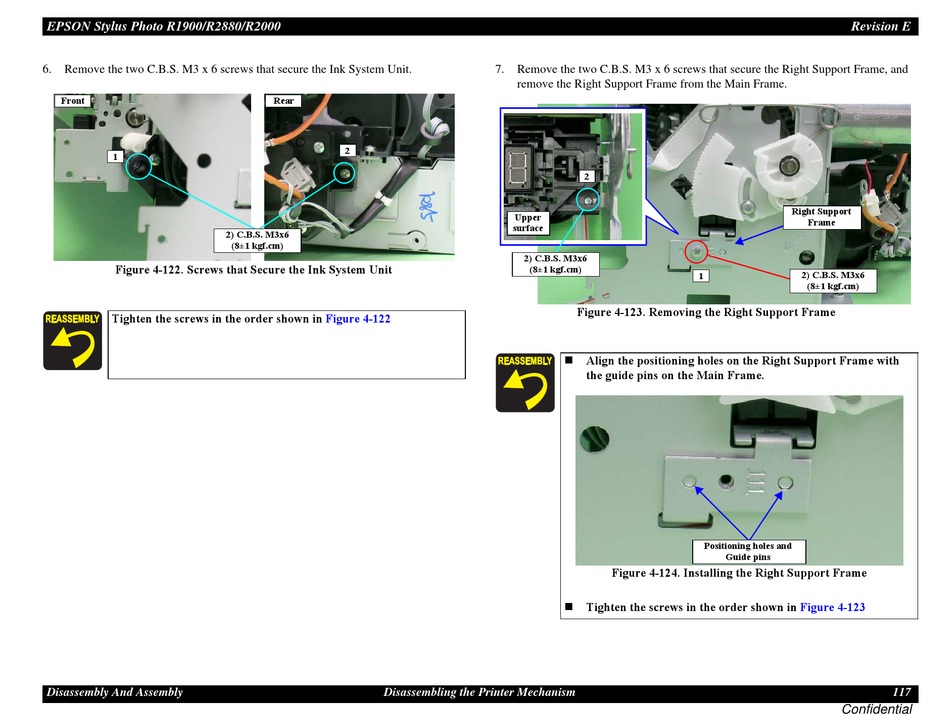

6. Remove the two C.B.S. M3 x 6 screws that secure the Ink System Unit.
Front
1
Figure 4-122. Screws that Secure the Ink System Unit
Tighten the screws in the order shown in
Disassembly And Assembly
Rear
2
2) C.B.S. M3x6
(8±1 kgf.cm)
Figure 4-122
Disassembling the Printer Mechanism
7. Remove the two C.B.S. M3 x 6 screws that secure the Right Support Frame, and
remove the Right Support Frame from the Main Frame.
2
Upper
surface
2) C.B.S. M3x6
(8±1 kgf.cm)
Figure 4-123. Removing the Right Support Frame
 Align the positioning holes on the Right Support Frame with
the guide pins on the Main Frame.
Figure 4-124. Installing the Right Support Frame
 Tighten the screws in the order shown in
Revision E
Right Support
Frame
2) C.B.S. M3x6
1
(8±1 kgf.cm)
Positioning holes and
Guide pins
Figure 4-123
