EPSON Stylus Photo R1900/R2880/R2000
When performing the following step, make sure to grasp the Printer
C A U T I O N
Mechanism by the specified positions shown below. Otherwise, the
frames may become deformed.

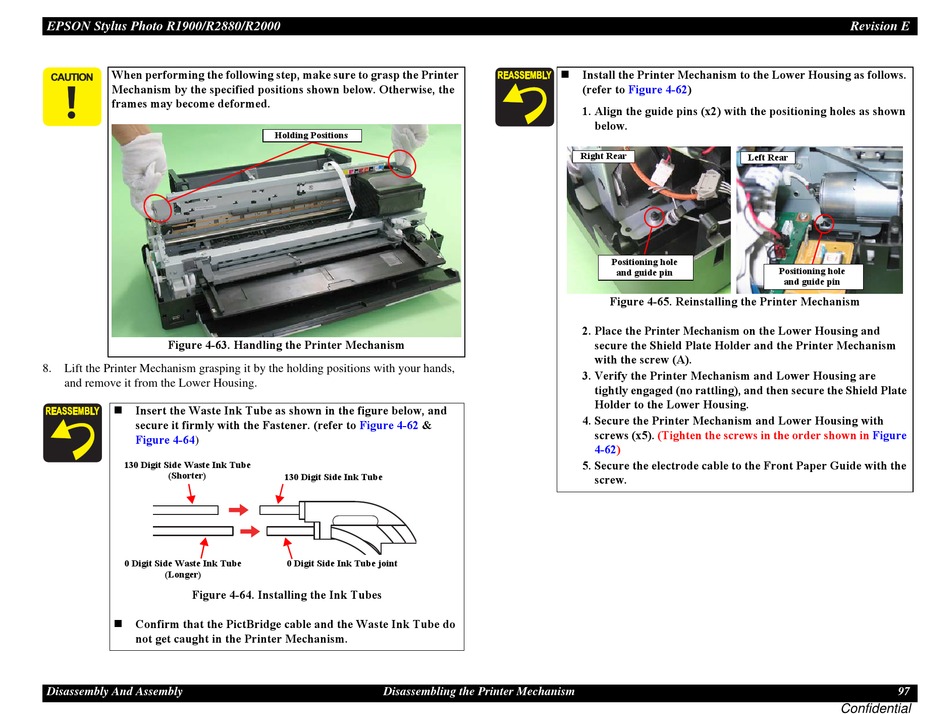

Figure 4-63. Handling the Printer Mechanism
8. Lift the Printer Mechanism grasping it by the holding positions with your hands,
and remove it from the Lower Housing.
 Insert the Waste Ink Tube as shown in the figure below, and
secure it firmly with the Fastener. (refer to
Figure 4-64)
130 Digit Side Waste Ink Tube
(Shorter)
0 Digit Side Waste Ink Tube
(Longer)
Figure 4-64. Installing the Ink Tubes
 Confirm that the PictBridge cable and the Waste Ink Tube do
not get caught in the Printer Mechanism.
Disassembly And Assembly
Holding Positions
Figure 4-62 &
130 Digit Side Ink Tube
0 Digit Side Ink Tube joint
Disassembling the Printer Mechanism
 Install the Printer Mechanism to the Lower Housing as follows.
(refer to Figure 4-62)
1. Align the guide pins (x2) with the positioning holes as shown
below.
Right Rear
Positioning hole
and guide pin
Figure 4-65. Reinstalling the Printer Mechanism
2. Place the Printer Mechanism on the Lower Housing and
secure the Shield Plate Holder and the Printer Mechanism
with the screw (A).
3. Verify the Printer Mechanism and Lower Housing are
tightly engaged (no rattling), and then secure the Shield Plate
Holder to the Lower Housing.
4. Secure the Printer Mechanism and Lower Housing with
screws (x5). (Tighten the screws in the order shown in
4-62)
5. Secure the electrode cable to the Front Paper Guide with the
screw.
Revision E
Left Rear
Positioning hole
and guide pin
Figure
97
