EPSON Stylus Photo R1900/R2880/R2000

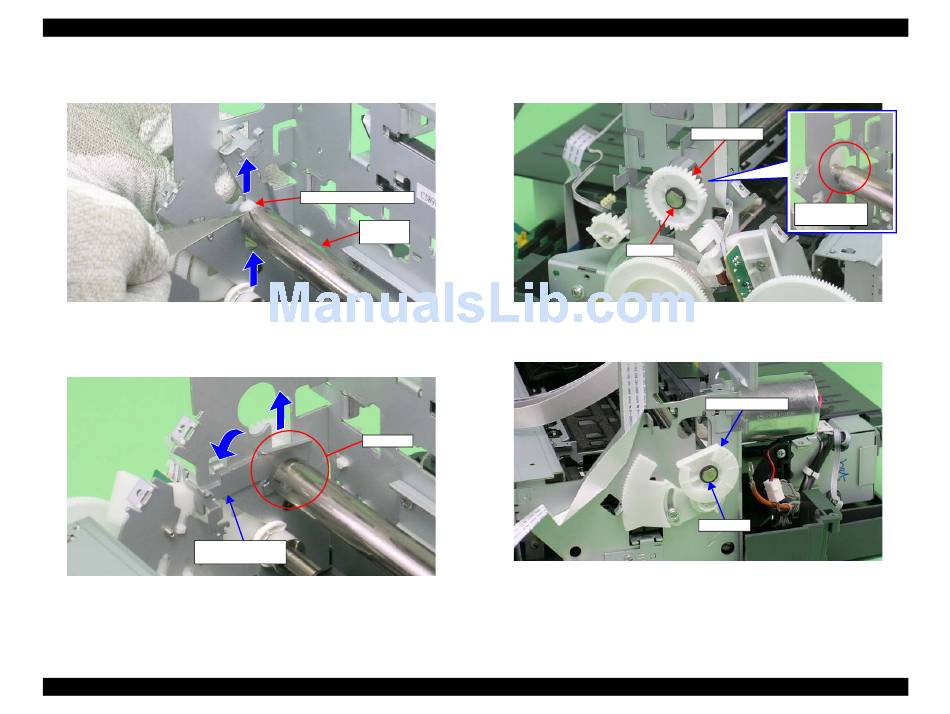

16. Lift the Carriage Shaft upwards, and remove the Carriage Shaft Spacer from the
Carriage Shaft with tweezers.
Figure 4-79. Removing the Carriage Shaft Spacer
17. Rotate the Left CR Shaft Mounting Plate toward you to remove the Bushing on the
Left CR Shaft Mounting Plate from the Carriage Shaft.
Left CR Shaft
Mounting Plate
Figure 4-80. Removing the Left CR Shaft Mounting Plate
Disassembly And Assembly
18. Lift the Carriage Shaft within the hole on the Main Frame, and remove the Spacer
Carriage Shaft Spacer
Carriage
Shaft
19. Remove the Spacer and Right PG Cam from the Carriage Shaft.
Bushing
Disassembling the Printer Mechanism
and Left PG Cam from the Carriage Shaft.
Spacer
Figure 4-81. Removing Left PG Cam
Figure 4-82. Removing Right PG Cam
Revision E
PG Cam (Left)
Hole on Main
Frame
Right PG Cam
Spacer
Confidential
102
