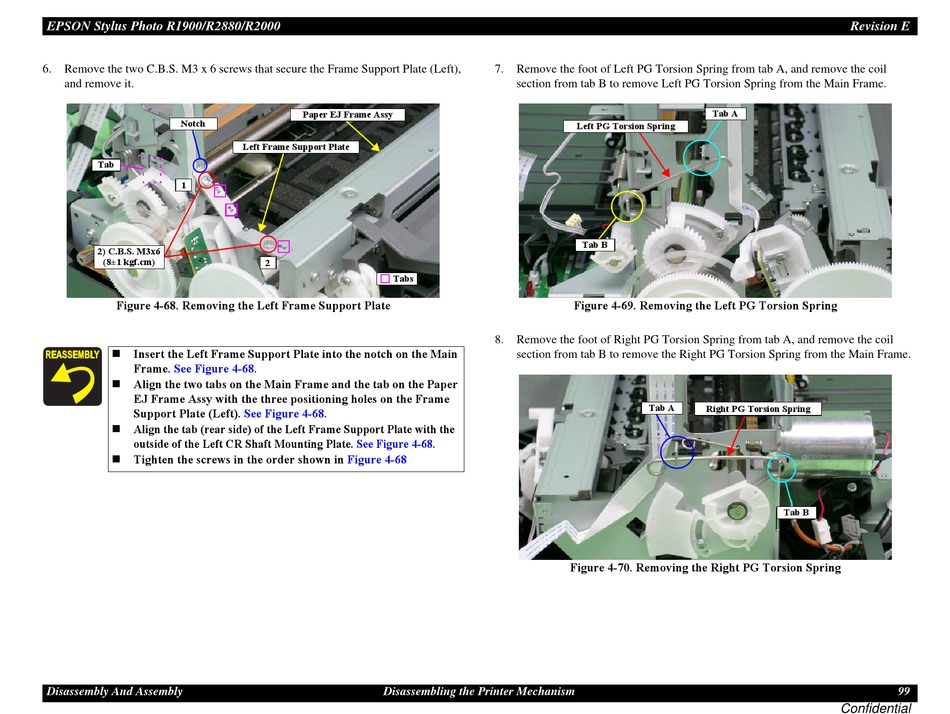

Epson Stylus Photo R1900 Service Manual page 99

EPSON Stylus Photo R1900/R2880/R2000
6. Remove the two C.B.S. M3 x 6 screws that secure the Frame Support Plate (Left),
and remove it.
Notch
Tab
1
2) C.B.S. M3x6
(8±1 kgf.cm)
Figure 4-68. Removing the Left Frame Support Plate

Insert the Left Frame Support Plate into the notch on the Main
Frame. See Figure 4-68.

Align the two tabs on the Main Frame and the tab on the Paper
EJ Frame Assy with the three positioning holes on the Frame
Support Plate (Left).
 Align the tab (rear side) of the Left Frame Support Plate with the
outside of the Left CR Shaft Mounting Plate.
 Tighten the screws in the order shown in
Disassembly And Assembly
Paper EJ Frame Assy
Left Frame Support Plate
2
Tabs
See Figure 4-68.
See Figure 4-68.
Figure 4-68
Disassembling the Printer Mechanism
7. Remove the foot of Left PG Torsion Spring from tab A, and remove the coil
section from tab B to remove Left PG Torsion Spring from the Main Frame.
Left PG Torsion Spring
Tab B
Figure 4-69. Removing the Left PG Torsion Spring
8. Remove the foot of Right PG Torsion Spring from tab A, and remove the coil
section from tab B to remove the Right PG Torsion Spring from the Main Frame.
Tab A
Figure 4-70. Removing the Right PG Torsion Spring
Revision E
Tab A
Right PG Torsion Spring
Tab B
