EPSON Stylus Photo R1900/R2880/R2000
Occurrence
Phenomenon Detail
Timing
At operation At the time of paper ejection, the
PF Roller advances the paper but
cannot eject it completely.
Paper is not ejected completely
and causes a jam near the Paper
Eject Frame.
Troubleshooting

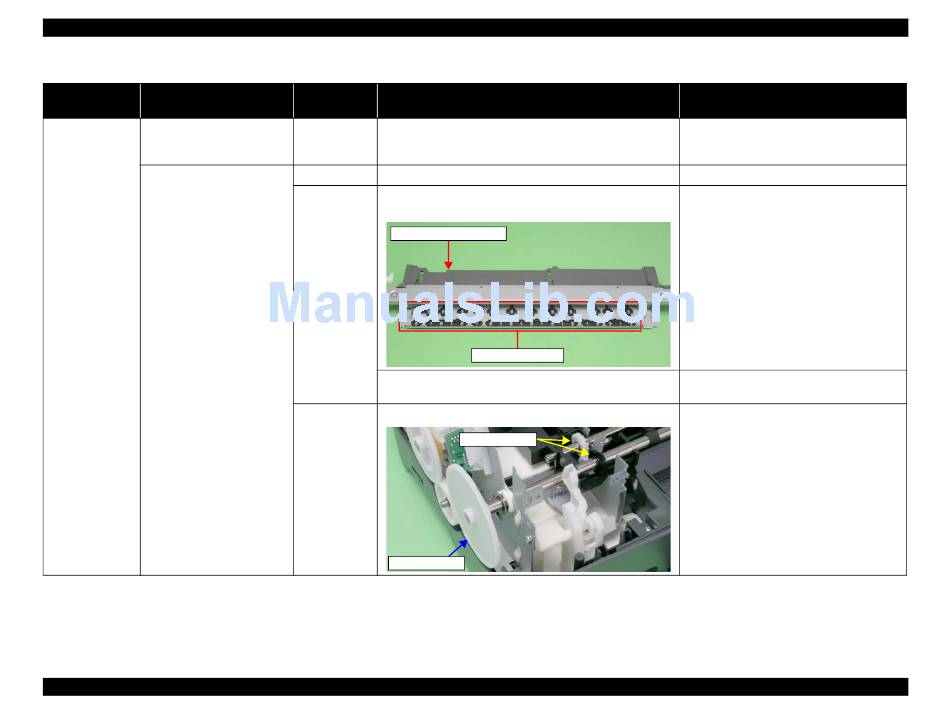

Table 3-6. Troubleshooting of Paper Jam Error
Faulty Part/
Part Name
– 1. Check that the size of the fed paper is not larger than that of the
paper specified by the driver.
ASF Assy. 1. Check that the paper is fed along the Right Edge Guide.
Paper EJ Frame 1. Check that the Star Wheel Units have not come off the Paper EJ
Assy. Frame Assy.
Paper EJ Frame Assy.
2. Check the Paper EJ Frame Assy for deformation or damages.
Spur Gear 68 1. Check the Spur Gear 68 or Spur Gear 16; B for damages.
Spur Gear 16; B
Spur Gear 16; B
Paper EJ Roller
Assy.(front/rear)
Spur Gear 68
Overview
Check Point
Star Wheel Units
Revision E
Remedy
1. Tell the user that the paper size specified by the
driver is not available for the printer.
1. Feed the paper along the Right Edge Guide.
1. Securely install the Star Wheel Units to the
Paper EJ Frame Assy.
2. Replace the Paper EJ Frame Assy with a new
one.
1. Replace the Front (or Rear) Paper EJ Roller
Assy with a new one.
