Stylus Photo R1900/R2880/R2000
 Upper Housing / Printer Cover
1. Remove the screws (C.B.P 3x10) (x6) that secure the Upper Housing, and
lift the Upper Housing/Printer Cover.
⑥
④
②

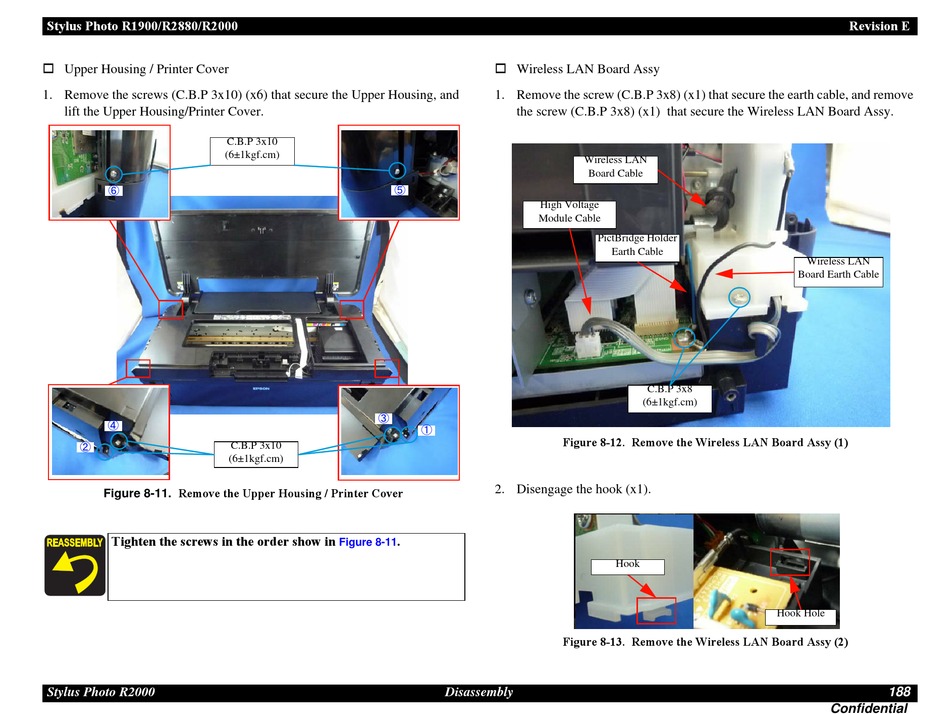

Figure 8-11. Remove the Upper Housing / Printer Cover
Tighten the screws in the order show in
Stylus Photo R2000
C.B.P 3x10
(6±1kgf.cm)
⑤
③
C.B.P 3x10
(6±1kgf.cm)
.
Figure 8-11
 Wireless LAN Board Assy
1. Remove the screw (C.B.P 3x8) (x1) that secure the earth cable, and remove
the screw (C.B.P 3x8) (x1) that secure the Wireless LAN Board Assy.
Wireless LAN
Board Cable
High Voltage
Module Cable
PictBridge Holder
①
Figure 8-12. Remove the Wireless LAN Board Assy (1)
2. Disengage the hook (x1).
Figure 8-13. Remove the Wireless LAN Board Assy (2)
Disassembly
Earth Cable
C.B.P 3x8
(6±1kgf.cm)
Hook
Hook Hole
