EPSON Stylus Photo R1900/R2880/R2000
Occurrence
Phenomenon Detail
Timing
The Paper Switch The CDR Tray moves toward the
was pressed at the ASF and the posterior edge of it
setting of the CDR reaches to the Driven Roller on
Tray. the Upper Paper Guide.Then the
CDR Tray tries to go farther, but
it is ejected.
Troubleshooting
Table 3-5. Troubleshooting of Paper Out Error
Faulty Part/
Part Name

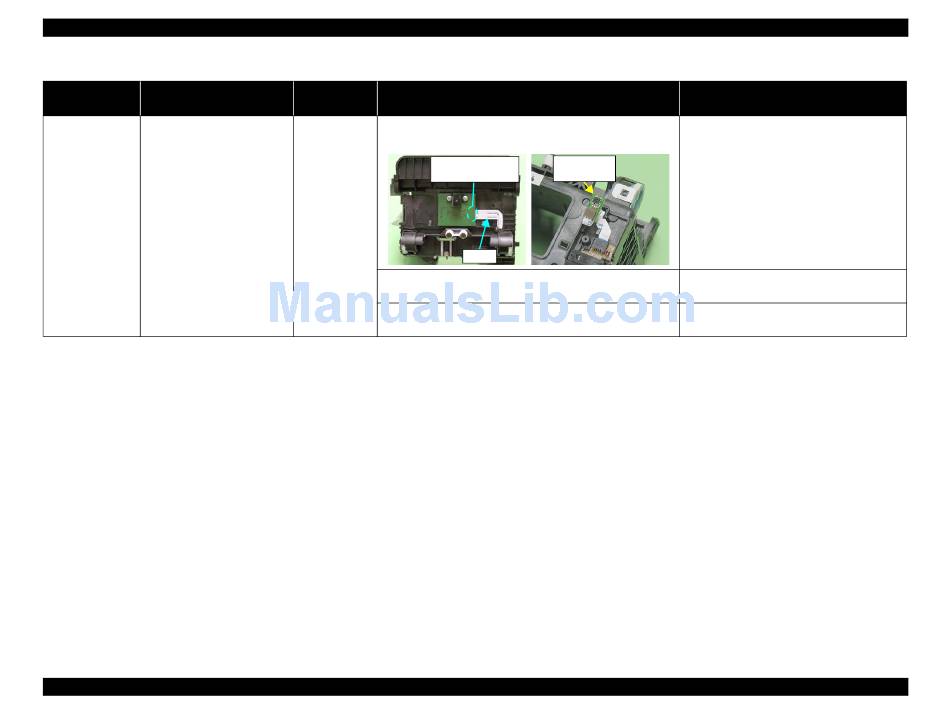

PW sensor 1. Check that the PW Sensor FFC is placed in the specified routing
positions and does not make contact with any parts.
CR Encoder Board
connector
FFC
2. Check that the PW Sensor FFC is connected to the CR Encoder
Board and PW Sensor connectors. Refer to the above photo.
3. Check the PW Sensor or PW Sensor FFC for damages.
Overview
Check Point
PW Sensor
connector
Revision E
Remedy
1. Place the PW Sensor FFC in the specified
routing positions correctly.
2. Connect the FFC to the CR Encoder Board and
PW Sensor connectors correctly.
3. Replace the PW Sensor (or the PW Sensor
FFC) with a new one.
