EPSON Stylus Photo R1900/R2880/R2000
The Hinge, Cover Cartridge can not be removed without damaging
C H E C K
P O I N T
it. Whenever replacing the Printhead, the Hinge, Cover Cartridge
must be also replaced with a new one.
Hinge, Cover
Cartridge

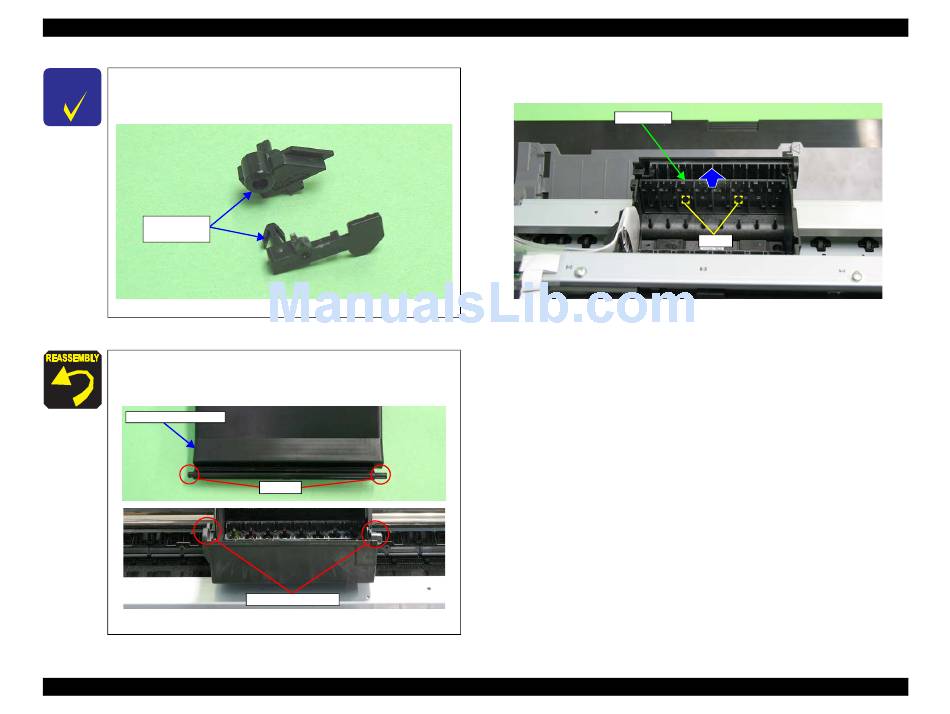

Figure 4-52. Hinge, Cover Cartridge
Engage the two dowels of the Ink Cartridge Cover with the
installation holes on the Carriage Unit and Hinge, Cover Cartridge
(one each).
Ink Cartridge Cover
Figure 4-53. Reinstalling the Ink Cartridge Cover
Disassembly And Assembly
Dowels Dowels
Installation holes
Disassembling the Printer Mechanism
7. Disengage the two hooks that secure the Ink Guide and remove the Ink Guide from
the Cartridge Unit.
Ink Guide
Figure 4-54. Removing the Ink Guide
Revision E
Hook
Confidential
93
