3. Hold the Carriage Unit, and while turning the Carriage Shaft clockwise and
counterclockwise, move the Carriage Unit to spread the grease evenly.

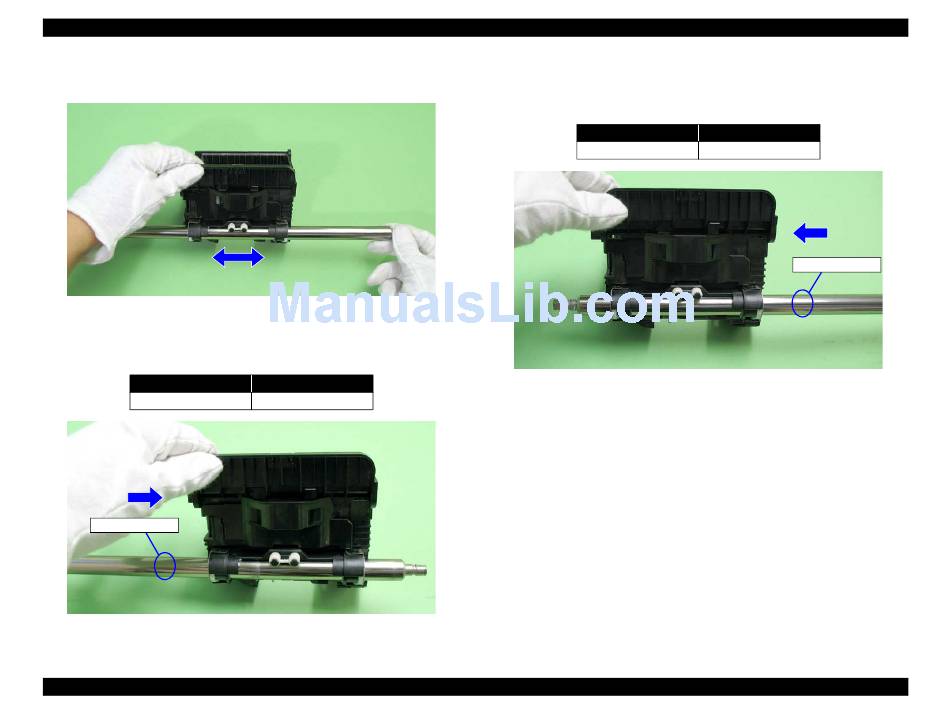

Figure 6-15. Lubricating the Carriage Shaft (2)
4. Move the Carriage Unit to the right end of the Carriage Shaft viewing the Unit
from the rear, and lubricate grease with the syringe at the point shown in
6-16.
Lubrication Type
G-71
Lubrication Point
Figure 6-16. Lubricating the Carriage Shaft (3)
Maintenance
Figure
Lubrication Amount
140mg
5. Hold the Carriage Unit, and while turning the Carriage Shaft, move the Carriage
Unit to the left end of the Carriage Shaft to lubricate the grease evenly.
6. Lubricate grease with the syringe at the point shown in
Lubrication Type
G-71
Figure 6-17. Lubricating the Carriage Shaft (4)
Overview
Revision E
Figure 6-17.
Lubrication Amount
140mg
