EPSON Stylus Photo R1900/R2880/R2000
Occurrence
Phenomenon Detail
Timing
Any time During manual double-sided
printing, multiple sheets are fed
at a time.
Occurrence
Phenomenon Detail
Timing
At operation or A message is displayed on the
during printing LED and STM3 during printing.
Occurrence
Phenomenon Detail
Timing
During printing A message is displayed on the
LED and STM3 after replacing
ink cartridge.
Troubleshooting

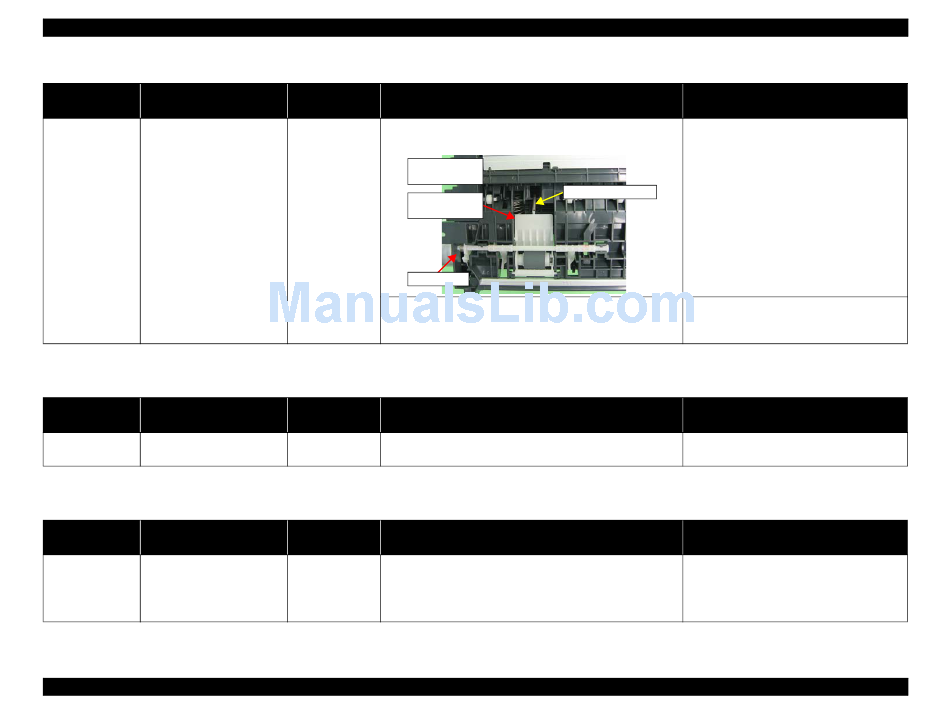

Table 3-8. Troubleshooting of Multi-feed error
Faulty Part/Part
Name
ASF Assy 1. Check that the Retard Roller Assy is moving properly during the
feeding operation.
Bottom of
the ASF Assy
Retard Roller
Assy
ASF Assy
2. Check that the position of the ASF Guide Roller LDs has been
adjusted correctly.
Table 3-9. Troubleshooting of Ink Low
Faulty Part/Part
Name
Ink Cartridge 1. Look at the remaining ink indication of the STM3 to check the
amount of the ink remaining in the Ink Cartridge.
Table 3-10. Troubleshooting of Ink Color Error (Stylus Photo R2880 only)
Faulty Part/Part
Name
Ink Cartridge 1. Check if the installed black ink cartridge is different in color
(photo or matte) from the previous one.
2. Check if the installed cartridge is nearly empty by checking the
ink level displayed on the STM3.
Overview
Check Point
Extension Spring
Check Point
Check Point
Revision E
Remedy
1. Attach the Extension Spring on the back side
of the Retard Roller Assy correctly.
2. Adjust the position of the ASF Guide Roller
LDs.
Refer to Chapter 4 ASF Assy (P.106).
Remedy
1. Prepare a new Ink Cartridge.
Remedy
1. Install the same type of black ink cartridge as
the one previously used.
2. Prepare a new Ink Cartridge.
