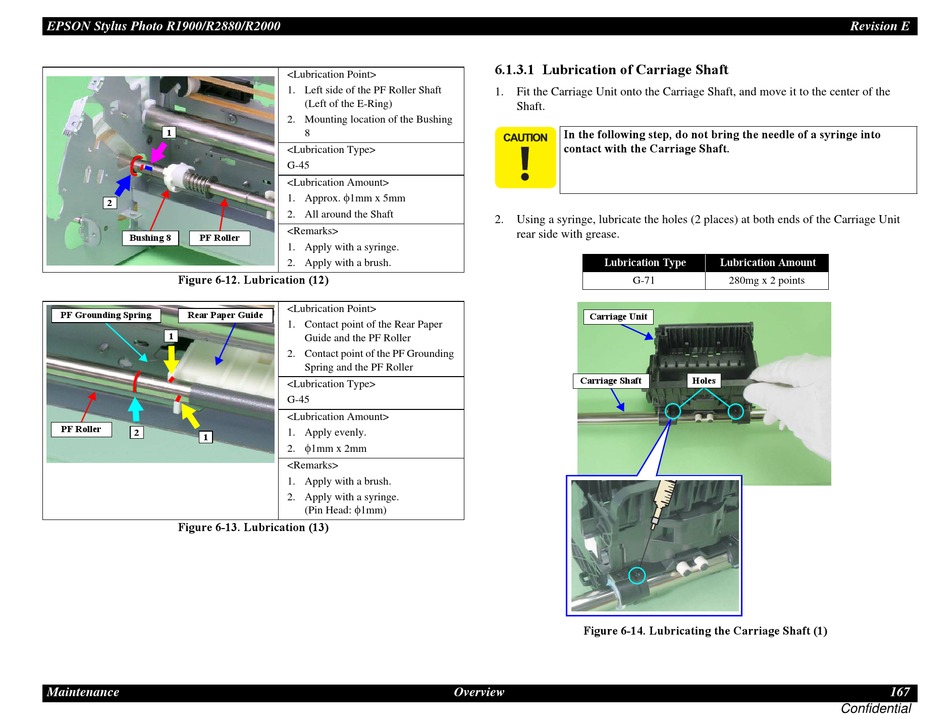

Epson Stylus Photo R1900 Service Manual page 167

EPSON Stylus Photo R1900/R2880/R2000
1
2
Bushing 8
PF Roller
Figure 6-12. Lubrication (12)
PF Grounding Spring Rear Paper Guide
1
PF Roller
2
1
Figure 6-13. Lubrication (13)
Maintenance
<Lubrication Point>
1. Left side of the PF Roller Shaft
(Left of the E-Ring)
2. Mounting location of the Bushing
8
<Lubrication Type>
G-45
<Lubrication Amount>

1. Approx. 1mm x 5mm
2. All around the Shaft
<Remarks>
1. Apply with a syringe.
2. Apply with a brush.
<Lubrication Point>
1. Contact point of the Rear Paper
Guide and the PF Roller
2. Contact point of the PF Grounding
Spring and the PF Roller
<Lubrication Type>
G-45
<Lubrication Amount>
1. Apply evenly.

2. 1mm x 2mm
<Remarks>
1. Apply with a brush.
2. Apply with a syringe.

(Pin Head: 1mm)
Overview
6.1.3.1 Lubrication of Carriage Shaft
1. Fit the Carriage Unit onto the Carriage Shaft, and move it to the center of the
Shaft.
In the following step, do not bring the needle of a syringe into
C A U T I O N
contact with the Carriage Shaft.
2. Using a syringe, lubricate the holes (2 places) at both ends of the Carriage Unit
rear side with grease.
Lubrication Type
G-71
Carriage Unit
Carriage Shaft
Figure 6-14. Lubricating the Carriage Shaft (1)
Revision E
Lubrication Amount
280mg x 2 points
Holes
Confidential
167
