Stylus Photo R1900/R2880/R2000
 Operation Buttons & LEDs Functions

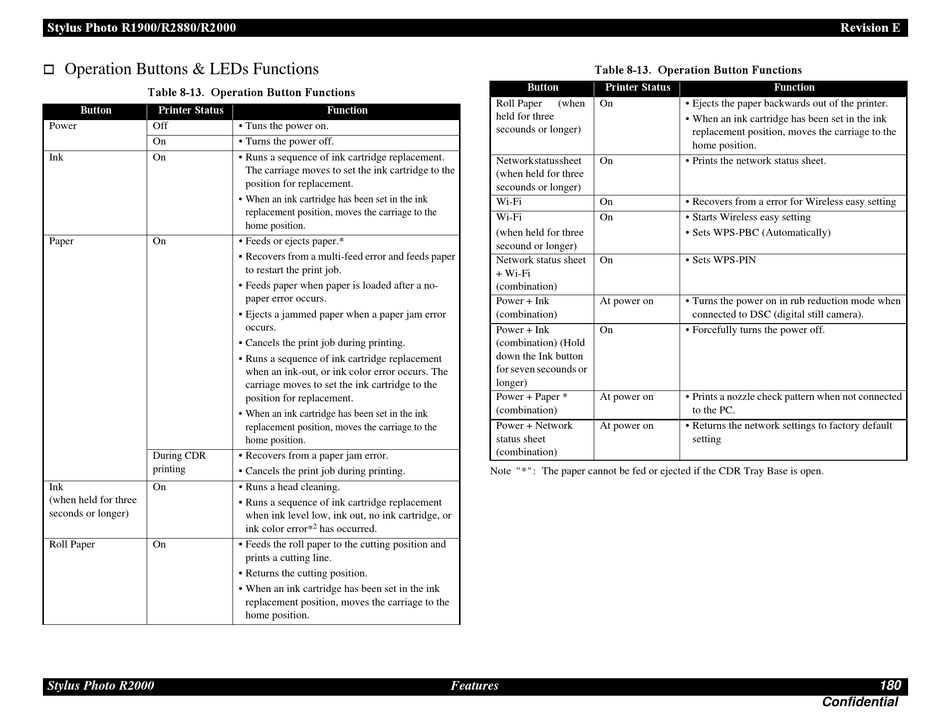

Table 8-13. Operation Button Functions
Button Printer Status
Power Off
On
Ink On
Paper On
During CDR
printing
Ink On
(when held for three
seconds or longer)
Roll Paper On
Stylus Photo R2000
Function
• Tuns the power on.
• Turns the power off.
• Runs a sequence of ink cartridge replacement.
The carriage moves to set the ink cartridge to the
position for replacement.
• When an ink cartridge has been set in the ink
replacement position, moves the carriage to the
home position.
• Feeds or ejects paper.*
• Recovers from a multi-feed error and feeds paper
to restart the print job.
• Feeds paper when paper is loaded after a no-
paper error occurs.
• Ejects a jammed paper when a paper jam error
occurs.
• Cancels the print job during printing.
• Runs a sequence of ink cartridge replacement
when an ink-out, or ink color error occurs. The
carriage moves to set the ink cartridge to the
position for replacement.
• When an ink cartridge has been set in the ink
replacement position, moves the carriage to the
home position.
• Recovers from a paper jam error.
• Cancels the print job during printing.
• Runs a head cleaning.
• Runs a sequence of ink cartridge replacement
when ink level low, ink out, no ink cartridge, or
2
ink color error* has occurred.
• Feeds the roll paper to the cutting position and
prints a cutting line.
• Returns the cutting position.
• When an ink cartridge has been set in the ink
replacement position, moves the carriage to the
home position.
Table 8-13. Operation Button Functions
Button Printer Status
Roll Paper (when On
held for three
secounds or longer)
Network status sheet On
(when held for three
secounds or longer)
Wi-Fi On
Wi-Fi On
(when held for three
secound or longer)
Network status sheet On
+ Wi-Fi
(combination)
Power + Ink At power on
(combination)
Power + Ink On
(combination) (Hold
down the Ink button
for seven secounds or
longer)
Power + Paper * At power on
(combination)
Power + Network At power on
status sheet
(combination)
Note "*": The paper cannot be fed or ejected if the CDR Tray Base is open.
Features
Revision E
Function
• Ejects the paper backwards out of the printer.
• When an ink cartridge has been set in the ink
replacement position, moves the carriage to the
home position.
• Prints the network status sheet.
• Recovers from a error for Wireless easy setting
• Starts Wireless easy setting
• Sets WPS-PBC (Automatically)
• Sets WPS-PIN
• Turns the power on in rub reduction mode when
connected to DSC (digital still camera).
• Forcefully turns the power off.
• Prints a nozzle check pattern when not connected
to the PC.
• Returns the network settings to factory default
setting
