EPSON Stylus Photo R1900/R2880/R2000
3. Pull off the connector of the electrode cable from its terminal on the High Voltage
Module Board with long-nose pliers or the like.
4. Disconnect the High Voltage Module cable from connector CN1 on the High
Voltage Module Board.
5. Remove the C.B.P. M3 x 8 screw and remove the High Voltage Module Board.
4) C.B.P. M3x8
High Voltage
Module cable
Hook

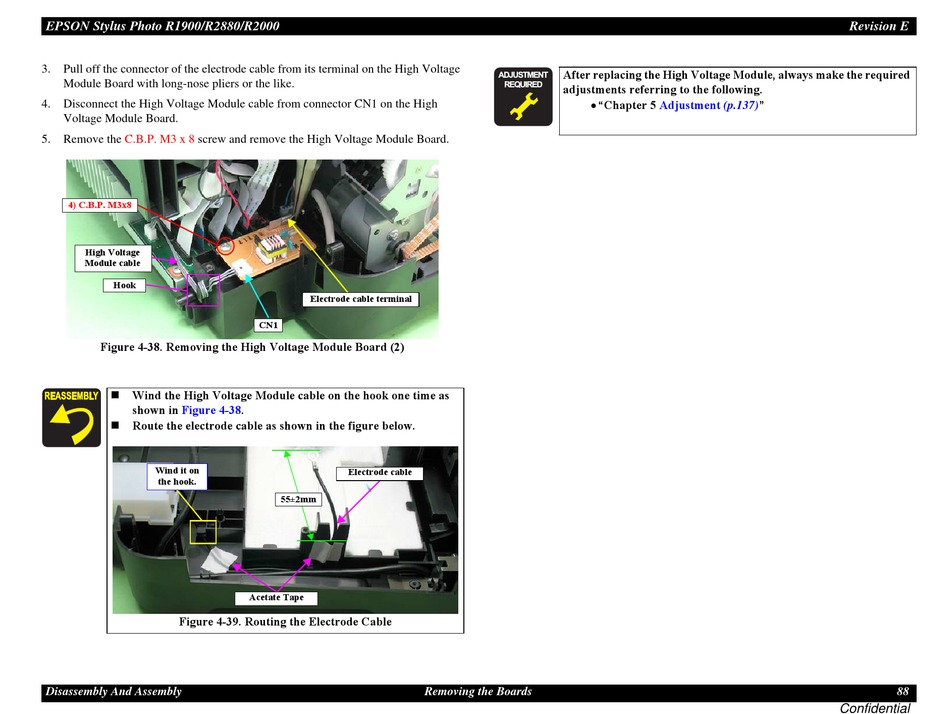

Figure 4-38. Removing the High Voltage Module Board (2)
 Wind the High Voltage Module cable on the hook one time as
shown in Figure 4-38.
 Route the electrode cable as shown in the figure below.
Wind it on
the hook.
Figure 4-39. Routing the Electrode Cable
Disassembly And Assembly
Electrode cable terminal
CN1
Electrode cable
55±2mm
Acetate Tape
Removing the Boards
After replacing the High Voltage Module, always make the required
A D J U S T M E N T
R E Q U I R E D
adjustments referring to the following.
 "Chapter 5
Adjustment
Revision E
(p.137)"
