Epson Stylus Photo R1900 Service Manual page 187

Stylus Photo R1900/R2880/R2000
 Decoration Plate Left/Right
1. For Decoration Plate Right, Disengage front of the hook (x1) , and lift the
Decoration Plate Right while disengaging bottom of the hooks (x2).
2. In the same way, remove the Decoration Plate Left.
□

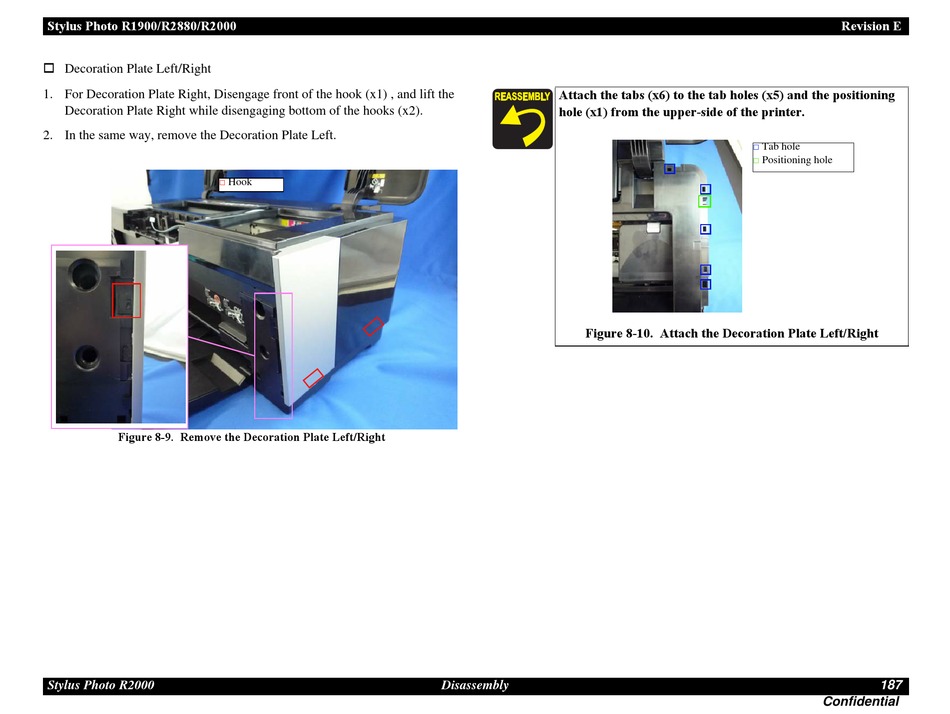

Figure 8-9. Remove the Decoration Plate Left/Right
Stylus Photo R2000
Hook
Attach the tabs (x6) to the tab holes (x5) and the positioning
hole (x1) from the upper-side of the printer.
Figure 8-10. Attach the Decoration Plate Left/Right
Disassembly
Revision E
□
Tab hole
□
Positioning hole
187
