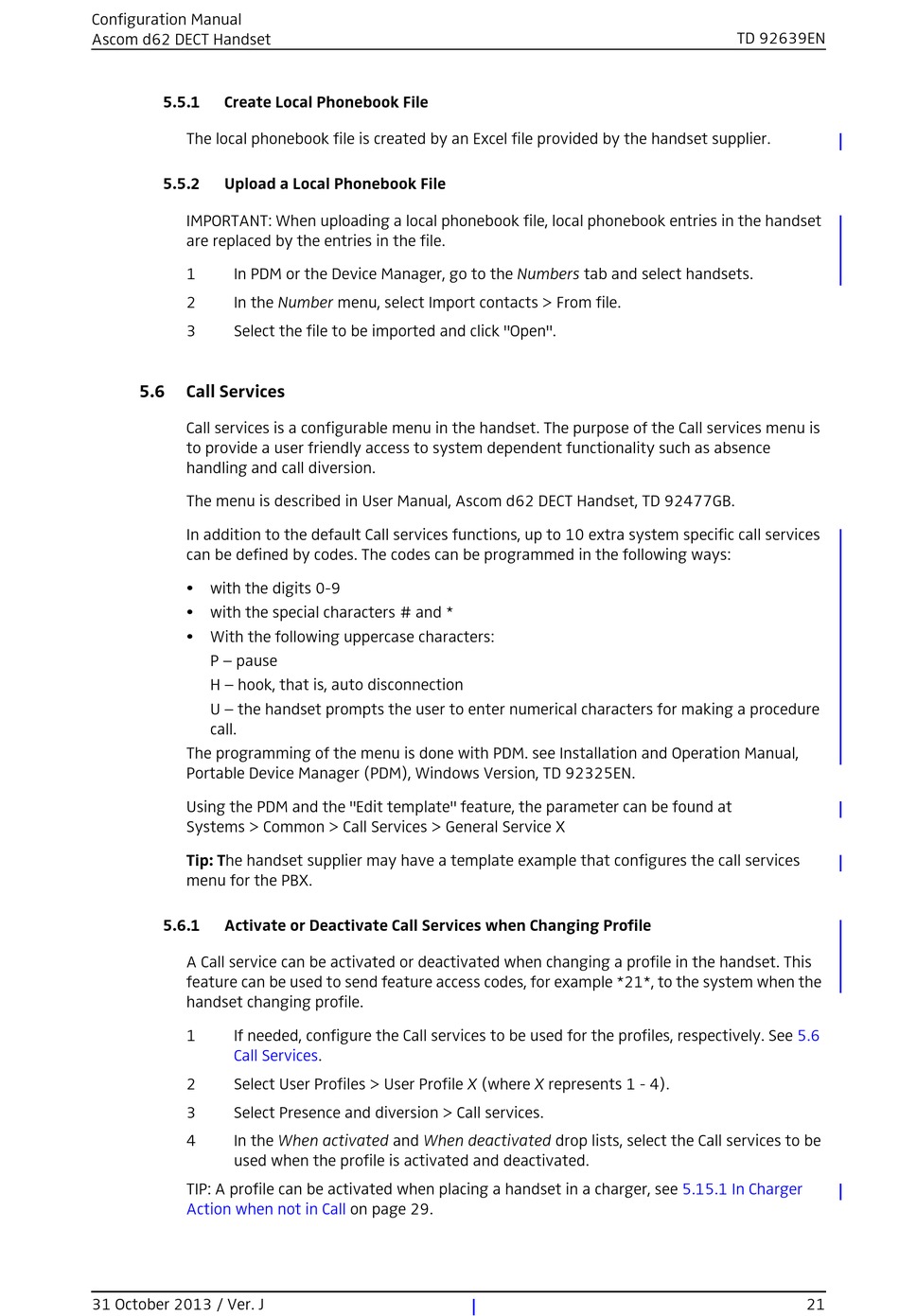

Configuration Manual
Ascom d62 DECT Handset
5.5.1

Create Local Phonebook File

The local phonebook file is created by an Excel file provided by the handset supplier.
5.5.2

Upload a Local Phonebook File

IMPORTANT: When uploading a local phonebook file, local phonebook entries in the handset
are replaced by the entries in the file.
1
In PDM or the Device Manager, go to the Numbers tab and select handsets.
2
In the Number menu, select Import contacts > From file.
3
Select the file to be imported and click "Open".
5.6

Call Services

Call services is a configurable menu in the handset. The purpose of the Call services menu is
to provide a user friendly access to system dependent functionality such as absence
handling and call diversion.
The menu is described in User Manual, Ascom d62 DECT Handset, TD 92477GB.
In addition to the default Call services functions, up to 10 extra system specific call services
can be defined by codes. The codes can be programmed in the following ways:
• with the digits 0-9
• with the special characters # and *
• With the following uppercase characters:
P – pause
H – hook, that is, auto disconnection
U – the handset prompts the user to enter numerical characters for making a procedure
call.
The programming of the menu is done with PDM. see Installation and Operation Manual,
Portable Device Manager (PDM), Windows Version, TD 92325EN.
Using the PDM and the "Edit template" feature, the parameter can be found at
Systems > Common > Call Services > General Service X
Tip: The handset supplier may have a template example that configures the call services
menu for the PBX.
5.6.1

Activate or Deactivate Call Services when Changing Profile

A Call service can be activated or deactivated when changing a profile in the handset. This
feature can be used to send feature access codes, for example *21*, to the system when the
handset changing profile.
1
If needed, configure the Call services to be used for the profiles, respectively. See
Call
2
Select User Profiles > User Profile X (where X represents 1 - 4).
3
Select Presence and diversion > Call services.
4
In the When activated and When deactivated drop lists, select the Call services to be
used when the profile is activated and deactivated.
TIP: A profile can be activated when placing a handset in a charger, see
Action when not in Call
31 October 2013 / Ver. J
Services.
on page 29.
TD 92639EN
5.6
5.15.1 In Charger
21
