ASCOM d63 User Manual

User Manual

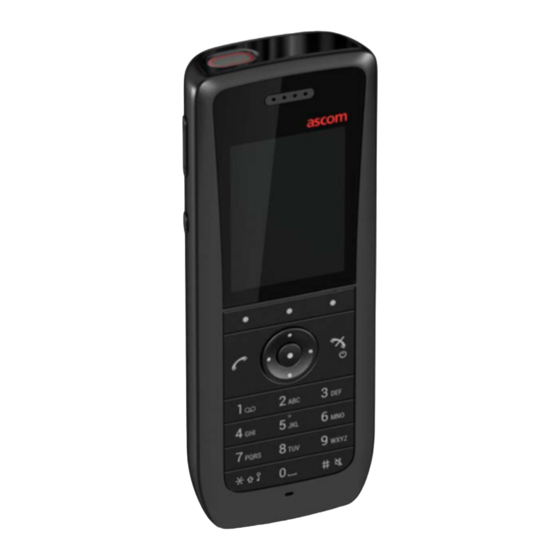

Ascom d63 DECT Handset
After the old handset has been in the charger, the new handset needs to be placed in the
charger regardless if the replacement was successful or not. Failing to do so may result in
malfunction that requires the new handset to be returned for service.
1
Figure 17. Easy Replacement via DC4 Advanced Desktop Charger.
1 On the new handset, press and hold
Note: Do not release
2 Put the new handset in the charger.
3 When the text "Start phone replacement?" is displayed, release
Press "Yes" (left soft key).
The text "Follow the instructions. Each step can take several minutes." appears in the
display. Press "OK"(left soft key).
4, 5 When the text "Please insert old phone in charger" is displayed, replace the new
handset with the old handset. The handset can either be switched on or off.
NOTE: The left charging slot in the CR3 Charging Rack has to be used for both
handsets.
The handset is restarted and after a few seconds, the text "Saving settings. Do not
remove phone from charger" appears. The charger LED changes to slow orange
flashing. It may take several minutes.
IMPORTANT: If the old handset cannot communicate with the charger, put the new
handset in the charger to restore its settings (that is, the handset's IPDI). If this step
is not performed, the new handset must be sent for service. The old handset's
settings might be transferred to the new handset by using WinPDM. See the
Configuration Manual for the handset (TD number: See
page 91).
6, 7 When the text "Please insert new phone in charger" is displayed, replace the old
handset with the new handset. The text "Restoring settings" is displayed.
IMPORTANT: Do not remove the handset while the text "Restoring settings" is
displayed.
28 June 2016 / Ver. PA5
New
New
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
2
3
ABC
GHI JKL
PQRS TUV
until you are instructed to do so.
New Old
ABC DEF
GHI JKL MNO GHI
PQRS TUV WXYZ PQRS
4, 8 7 5
DEF
MNO
WXYZ
17 Related Documents
TD 93119EN
ABC DEF
JKL MNO
TUV WXYZ
6
.
on
86
