TD 93119EN
User Manual

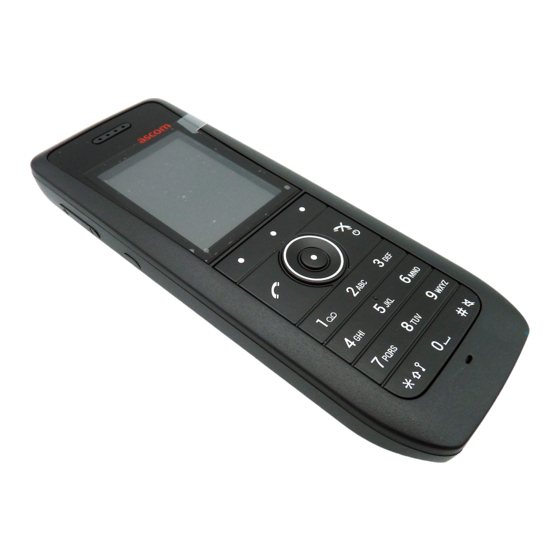

Ascom d63 DECT Handset
28 June 2016 / Ver. PA5

Advertisement

Table of Contents
loading

Related Manuals for ASCOM d63

Summary of Contents for ASCOM d63

  • Page 1 TD 93119EN User Manual Ascom d63 DECT Handset 28 June 2016 / Ver. PA5...
  • Page 2 User Manual TD 93119EN Ascom d63 DECT Handset About this document Safety Precautions IMPORTANT: Read the Safety Precautions in Appendix B.Safety Precautions before using the handset. Save this manual. It includes important Safety Precautions and operating instructions. Save all instructions for future reference.

  • Page 3: Table Of Contents

    User Manual TD 93119EN Ascom d63 DECT Handset Contents 1 Introduction........................1 1.1 Abbreviations and Glossary ...................... 1 1.2 Functions and Accessories ......................2 2 Descriptions ........................4 2.1 The DECT Handset ........................5 2.2 Chargers ............................6 2.2.1 DC3 Desktop Charger and DP1 Desktop Programmer ..........6 2.2.2 CR3 Charging Rack ......................
  • Page 4 User Manual TD 93119EN Ascom d63 DECT Handset 3.10 Customizing the Menu Tree ....................21 4 Basic Operation ....................... 22 4.1 Switch the Handset On and Off .....................22 4.2 Log a Shared Phone On and Off .....................22 4.3 Turn the Audible Signal On or Off ..................23 4.4 Lock and Unlock the Keypad ....................23...
  • Page 5 User Manual TD 93119EN Ascom d63 DECT Handset 5.4.16 DTMF ..........................32 5.4.17 DECT Info .........................33 5.4.18 Send Data ........................33 5.5 Loudspeaking Function ......................33 5.6 Call Diversion ..........................33 5.7 Emergency Calls .........................34 6 Messaging ........................35 6.1 Mini Messaging ..........................35 6.2 Message List ..........................35 6.3 Receive a Message ........................35...
  • Page 6 User Manual TD 93119EN Ascom d63 DECT Handset 6.14.3 One Key Voicemail Access ...................45 7 Alarm Operation......................46 7.1 Push-button Alarm ........................46 7.2 Acoustic Location Signal ......................46 7.3 Test Alarm ...........................46 7.4 Alarm with Location Information ..................46 7.4.1 Alarm with Data .......................46 7.5 Automatic Call after Alarm .....................47...
  • Page 7 User Manual TD 93119EN Ascom d63 DECT Handset 8.7 Contacts ............................65 8.7.1 Call Contact ........................66 8.7.2 Add Contact ........................66 8.7.3 Edit Contact ........................67 8.7.4 Set Ring Signal for a Contact ..................67 8.7.5 Delete Contact ........................67 8.7.6 Central Phonebook ......................67 8.8 Settings ............................68 8.8.1 Sound and Alert Settings ....................68...
  • Page 8 User Manual TD 93119EN Ascom d63 DECT Handset 15.4 Attach the Swivel-type Clip ....................88 15.5 Attach Cover for No Clip ......................88 16. Energy Efficiency......................90 17 Related Documents....................... 91 18 Document History ......................92 Appendix A. Bluetooth Headset..................93 Appendix B. Safety Precautions..................99...

  • Page 9: Introduction

    Ascom d63 DECT Handset Introduction This document describes features and settings available for the d63 handset. The handset is a feature-rich handset with color display, telephony, messaging, and Bluetooth. It is designed to be used in medium demanding environment such as hospital environment, but also office environment.

  • Page 10: Functions And Accessories

    User Manual TD 93119EN Ascom d63 DECT Handset Functions and Accessories NOTE: Some functions are license/system dependent, or require configuration in handset via WinPDM/Device Manager. Functions General Easy registration Enhanced DECT Security Vibrator Headset connector Loudspeaking function 3 Programmable Soft keys...
  • Page 11 User Manual TD 93119EN Ascom d63 DECT Handset Functions Colored messaging Interactive messaging Patient ECG Waveform Monitoring Data with prefix Alarm Push button alarm Acoustic Location Signal (ALS) Alarm with data Location IR Location Location, base stations Accessories Desktop charger...

  • Page 12: Descriptions

    User Manual TD 93119EN Ascom d63 DECT Handset Descriptions PQRS WXYZ Figure 1. Description of the handset. Multifunction/Alarm button This button can be used as a shortcut to functions; long or double press modes. Depending on what model of handset that is used, the button can be used as a push button alarm or the button may be configured as a PTT button.

  • Page 13: The Dect Handset

    User Manual TD 93119EN Ascom d63 DECT Handset Voicemail access A quick access to the handset’s Voicemail. This is a system dependent feature. Key lock and Upper/Lower case Combined key lock and Upper/Lower Case Microphone Space To add space between text...

  • Page 14: Chargers

    User Manual TD 93119EN Ascom d63 DECT Handset Battery The battery is a rechargeable Li-pol battery, placed under a battery cover. See 15.1.4 Replace the Battery on page 84. The battery is fully charged within four hours. See 15.1.2 Charge the Battery on page 84.

  • Page 15: Icons And Text In The Display

    User Manual TD 93119EN Ascom d63 DECT Handset Icons and Text in the Display All functions and settings available to the user are shown as icons and text in the display. The icons and text in the display indicate functions and settings to which you have access.
  • Page 16 User Manual TD 93119EN Ascom d63 DECT Handset Icons “Signal strength” icon is visible in the upper left corner. The staples shown in display depends on the signal strength. “Full battery” icon is displayed in upper right corner. "Low battery warning” icon is shown when the battery has 10% or less remaining capacity left.
  • Page 17 "WinPDM/Device Manager communication" icon is visible when handset is communicating with WinPDM/Device Manager via advanced charger. "Profile active" icon "Talker" icon indicates that the handset is a d63 Talker model. "Messenger" icon indicates that the handset has a d63 Messenger product license.
  • Page 18 User Manual TD 93119EN Ascom d63 DECT Handset Menu icons The ”Contacts” menu contains all names/numbers in the Contacts list. In addition, a company phonebook* with up to 1000 entries can be downloaded to the handset via the WinPDM. A central phonebook* can also be accessed from the "Contact"...

  • Page 19: Keys And Buttons

    User Manual TD 93119EN Ascom d63 DECT Handset Keys and Buttons 2.4.1 Off-hook key This key is used for connecting calls. One short press in standby mode opens the call list. 2.4.2 On-hook and On/Off Key This key is used for disconnecting calls and returning to main screen.

  • Page 20: Soft Keys

    User Manual TD 93119EN Ascom d63 DECT Handset 2.4.7 Soft Keys soft keys Figure 4. Soft Keys. The three Soft keys are located just beneath the display and the functions of each Soft key is indicated by text in the display just above the keys.

  • Page 21: Alphanumeric Keys

    User Manual TD 93119EN Ascom d63 DECT Handset Alphanumeric Keys a b c à â ä æ ç 2 . , ? ! - ‘ ” 1 d e f é è 3 j k l 5 g h i î 4 m n o ñ...

  • Page 22: Accessories

    User Manual TD 93119EN Ascom d63 DECT Handset Accessories 2.6.1 Belt Clips Two belt clip options are available: • Hinge-type clip The clip on the back of the handset is used to fasten the handset to a belt or similar. The clip can also be changed to a swivel-type.

  • Page 23: Menu Tree

    User Manual TD 93119EN Ascom d63 DECT Handset Menu Tree Calls > —> • Call 7891 01:30 • Call list —> 7827 03:35 —> > • More • Time of call 7682 05:26 Edit number > • • Back 7845 20-Oct-03 >...

  • Page 24: Contacts

    User Manual TD 93119EN Ascom d63 DECT Handset Contacts • Call contact ——> • Search • From contact list > ——> • Add contact ——> • Name > • New • Work number > • From Call list > • Mobile number >...

  • Page 25: Messaging

    User Manual TD 93119EN Ascom d63 DECT Handset Messaging ——> ——> • Enter text > —> Message List —> • Inbox • Reply • View • More ——> > • Delete > • Forward • Close > • Call sender >...

  • Page 26: Shortcuts

    > Calls Multi press ---> Services > Connections Edit alarm data > Contacts *) Not applicable for d63 Advanced. Call PTT group** > Messaging **) Visible if defined in WinPDM/Device Manager. Services Profiles Settings Absence* Call services Tip: When configuring the Phone call function, a variable or character U can be added to the Enter number field that allows the user to enter additional numerical character(s) before calling the number.

  • Page 27: Connections

    User Manual TD 93119EN Ascom d63 DECT Handset Connections —> • Enable / Disable • Bluetooth • Add new > • Headset —> • Headset —> • Mic on boom • Mic on cable • Hearing Protection • System —>...

  • Page 28: Settings

    User Manual TD 93119EN Ascom d63 DECT Handset Settings Sound & Alerts ---> Volume > Internal call External call Ring signals —> Callback Message alert > Vibrator alert —> On if silent Key sound —> Click Tone Silent Locks --->...

  • Page 29: In Call

    User Manual TD 93119EN Ascom d63 DECT Handset In Call The In Call menu displays a list of functions that can be accessed during a call. To see the available functions, press the "More" soft key. Some functions are always provided and others may be made available by the administrator via the WinPDM/Device manager.

  • Page 30: Basic Operation

    User Manual TD 93119EN Ascom d63 DECT Handset Basic Operation Switch the Handset On and Off Switch on the Handset Press and hold . When pressing , the handset vibrates and the display lights up. Switch off the Handset Prerequisite: The handset is in idle mode: Tip: While in a menu, press to return to idle mode.

  • Page 31: Turn The Audible Signal On Or Off

    Turn the Audible Signal On or Off Note: If handset restrictions are enabled, you might not be able to turn off the audible signal. See Configuration Manual, Ascom d63 DECT Handset, TD 93151EN. A long press on the in idle mode, changes between ring signal on/off.

  • Page 32: Lock And Unlock The Handset

    User Manual TD 93119EN Ascom d63 DECT Handset Lock and Unlock the Handset The handset can be locked to prevent unauthorized use. If this function is activated, a PIN code has to be entered for example to switch on the handset, to answer an incoming call etc.

  • Page 33: Calling

    In addition, the headset button can be configured with a specific function, such as post-dial, dial last called number, or dial a predefined number. See Configuration Manual, Ascom d63 DECT Handset, TD 93151EN for more information. Other answering methods can also be set in the Settings menu, see 3.8 Settings...

  • Page 34: Outgoing Call

    User Manual TD 93119EN Ascom d63 DECT Handset Outgoing Call 5.3.1 Pre-Dial Enter the number and press to get the line. The number is displayed while dialling. The Soft key "Clear" can be pressed to erase the number if required. The navigation key can be used to step, add or delete digits from the middle of a number.

  • Page 35: Dial The Sender Of A Message

    User Manual TD 93119EN Ascom d63 DECT Handset 5.3.6 Dial the Sender of a Message You can call the sender of a message stored in the message list, from the Messaging menu. Open the menu by pressing the confirmation button, or the soft key "Menu".

  • Page 36: During A Call

    User Manual TD 93119EN Ascom d63 DECT Handset During a Call NOTE: Some of these functions are system dependent. The parameters are set up in the WinPDM/Device Manager, see the Configuration Manual for the handset (TD number: See Related Documents on page 91).

  • Page 37: Lock And Unlock The Keypad During A Call

    User Manual TD 93119EN Ascom d63 DECT Handset 5.4.5 Lock and Unlock the Keypad during a Call To prevent accidentally pressing keys, the keys can be locked during a call. This can be useful when a headset is used and the handset is attached to a pocket or belt.

  • Page 38: End A Call

    User Manual TD 93119EN Ascom d63 DECT Handset 5.4.9 End a Call Prerequisite, a new call has been started during conversation, see 5.4.7 Start a New Call during Conversation on page 29. NOTE: This option is only visible if configured in the handset. For more information, see the...

  • Page 39: Conference Call

    User Manual TD 93119EN Ascom d63 DECT Handset 5.4.12 Conference Call Prerequisite, a new call has been started during conversation, see 5.4.7 Start a New Call during Conversation on page 29. NOTE: This option is only visible if configured in the handset. For more information, see the...

  • Page 40: Answering Call Waiting

    User Manual TD 93119EN Ascom d63 DECT Handset 5.4.15 Answering Call Waiting Depending on system setup and configuration, this feature might be handled in one of two different ways: Method 1 During an ongoing conversation and a short tone for another incoming call appears, do as follows: Press the soft key "More"...

  • Page 41: Dect Info

    User Manual TD 93119EN Ascom d63 DECT Handset 5.4.17 DECT Info DECT info is an advanced function intended for an administrator using the handset to measure RF link and system parameters as part of a troubleshooting or site surveying procedure. This option is only visible if the Admin menu is activated as described in section 11.1 Admin Menu...

  • Page 42: Emergency Calls

    User Manual TD 93119EN Ascom d63 DECT Handset Emergency Calls If configured in the WinPDM/Device Manager, any one of up to five predefined emergency numbers can be called, even if the handset or keypad has been locked. For additional information, see sections 8.8.2 Keypad Lock Settings...

  • Page 43: Messaging

    User Manual TD 93119EN Ascom d63 DECT Handset Messaging Mini Messaging NOTE: The support for this feature is dependent on what model of handset that is used. For more information, see 1.2 Functions and Accessories on page 2. Depending of what model of handset that is used, it can receive text messages with a maximum of 12 characters.

  • Page 44: Read A Stored Message

    User Manual TD 93119EN Ascom d63 DECT Handset 6.3.1 Read a Stored Message Enter “Messaging” in the menu, see 3.4 Messaging on page 17. Select “Inbox”. Select stored message from the list. Press "View" to read the message. 6.3.2 Reply to a Message To reply when receiving a message, do as follows: Press “Reply”.

  • Page 45: Call A Number Included In A Message

    User Manual TD 93119EN Ascom d63 DECT Handset Select "Call sender". 6.3.6 Call a Number Included in a Message If the sender has written a number in the message, the number can be called without dialling. This option is only visible if the number consists of minimum 3 digits.

  • Page 46: Write And Send A Message

    User Manual TD 93119EN Ascom d63 DECT Handset • When the user is writing a message using the handset Messaging function without having to type a completely new message. See 6.3.9 Write and Send a Message on page The Templates Menu...

  • Page 47: Send To Another Destination

    User Manual TD 93119EN Ascom d63 DECT Handset Select message. Press "View" to read the message. 6.3.11 Send to Another Destination Enter “Messaging” menu, see 3.4 Messaging on page 17. Select “Inbox” or "Sent". Select message. Press "More". Select "Forward".

  • Page 48: Message Priority And Call Priority

    They are shown as unread in the message list and are not shown as read until they have been closed. See Configuration Manual, Ascom d63 DECT Handset, TD 93151EN for more information how to set the parameters.

  • Page 49: Message Indication Repetition

    User Manual TD 93119EN Ascom d63 DECT Handset Figure 6. Example of an interactive message Mobile data from the handset can initiate the application to send the interactive message, 6.13 Mobile Data on page 44. For more information, see the Function Description, Interactive Messaging (TD number: See 17 Related Documents on page 91).

  • Page 50: Decline A Call With A Predefined Message

    User Manual TD 93119EN Ascom d63 DECT Handset messages. In figure 7 on page 42, there are two colored messages, a new message and a read message, in the message inbox (left in the figure). The messages are indicated by a gradient color bar behind the envelopes.

  • Page 51: Calling While Reading A Text Message

    User Manual TD 93119EN Ascom d63 DECT Handset 6.12 Calling while Reading a Text Message A user can make a call while reading a text message to review and discuss the message with the called party. The called party may be either: •...

  • Page 52: Mobile Data

    User Manual TD 93119EN Ascom d63 DECT Handset Redisplay the Message and Terminate the Call Press . The call is terminated and the ongoing call summary details are replaced by the redisplayed text message. 6.13 Mobile Data NOTE: The support for this system dependent feature is dependent on what model of handset that is used.

  • Page 53: One Key Voicemail Access

    User Manual TD 93119EN Ascom d63 DECT Handset Press "Call". Voicemail is displayed with one entry in the message list regardless of the number of voicemail received. 6.14.3 One Key Voicemail Access A long press on digit key “1” in standby mode calls voicemail. If the extension number is not available a dialog window "Voicemail number not defined"...

  • Page 54: Alarm Operation

    User Manual TD 93119EN Ascom d63 DECT Handset Alarm Operation NOTE: The support for the following system dependent features are dependent on what model of handset that is used. For more information, see 1.2 Functions and Accessories page 2. See also the Configuration Manual for the handset (TD number: See...

  • Page 55: Automatic Call After Alarm

    User Manual TD 93119EN Ascom d63 DECT Handset Automatic Call after Alarm A handset can be setup to call a predefined number after an alarm has been sent. The number can also be dialled without sending an alarm by pressing a push-button that is not configured with alarm functionality.

  • Page 56: Menu Operation

    User Manual TD 93119EN Ascom d63 DECT Handset Menu Operation 12:19 Messaging Calls Connections Shortcuts Messaging Services Settings Profiles Contacts Select Back Figure 8. The main menu. Connections Enter the menu by pressing the “Menu” Soft key, or the confirmation button on the Navigation key.

  • Page 57: Headset

    User Manual TD 93119EN Ascom d63 DECT Handset If needed, enter PIN code, see user manual for the Bluetooth headset. Press "OK". The dialog Successful pairing appears if the pairing process was successful. The Bluetooth headset is also connected indicated by a colored square in front of the headset.

  • Page 58: System

    User Manual TD 93119EN Ascom d63 DECT Handset 8.1.3 System The handset can subscribe up to eight different systems. Change System Select “Automatic” or a specific system. If the handset is set to “Automatic” it selects a system according to the priority list, see Priority on page 51.

  • Page 59: In Charger Action When In Call

    User Manual TD 93119EN Ascom d63 DECT Handset Press "Next". An information text "Protection on?" is displayed. Select "Yes" if the new system is to be protected. NOTE: A protected system cannot be unsubscribed via the System menu. The unsubscribtion must be made via the Admin menu or the DECT system.

  • Page 60: In Charger Action When Not In Call

    User Manual TD 93119EN Ascom d63 DECT Handset 8.1.5 In Charger Action when not in Call The behaviour of the handset placed in charger when not in call can be set in one of the following ways: Select “In charger”.

  • Page 61: Call List

    User Manual TD 93119EN Ascom d63 DECT Handset 8.2.1 Call List The 25 last received, dialled or missed calls are stored in a call list. If a number occurs more than once the last time stamp, together with the total number of occurrences, is shown.

  • Page 62: Missed Calls

    User Manual TD 93119EN Ascom d63 DECT Handset 8.2.2 Missed Calls NOTE: The dialog window that appears for a missed call can be turned off. The handset can also be prevented from storing calls in the call list. The latter feature can for example be used to ensure privacy for users sharing the same handset.

  • Page 63: Accept An Invitation

    User Manual TD 93119EN Ascom d63 DECT Handset 8.2.5 Accept an Invitation Accept Invitation Received as Incoming Call (PTT Basic) A PTT invitation received as an incoming call is indicated by the icon. In the dialogue window, a message containing maximum 24 characters can also be shown. See figure Figure 9.
  • Page 64 User Manual TD 93119EN Ascom d63 DECT Handset Figure 10. Incoming Invitation Received as a Message Press "Accept". The handset may accept the invitation automatically, start in inverted mute and loudspeaking mode, depending on the configuration of the received invitation.

  • Page 65: Decline A Ptt Invitation

    User Manual TD 93119EN Ascom d63 DECT Handset NOTE: Depending on the priority of the invitation, the ongoing call might be disconnected immediately or after 10 seconds. If the user rejects the invitation, it can be re-joined later on, see 8.2.8 Re-join a Group...
  • Page 66 User Manual TD 93119EN Ascom d63 DECT Handset Absence Handling The reason for being absent and the return time can be specified here. Select "Call services". Select "Absence". Select the applicable absence reason in the list. The number of absence reasons (for example “Lunch”, “Meeting”, “Trip”...

  • Page 67: Shortcuts

    User Manual TD 93119EN Ascom d63 DECT Handset The handset sends a diversion reason code to the system by establishing a call. The code is defined when configuring the diversion reason in the handset. For more information, see the Configuration Manual for the handset (TD number: See 17 Related Documents on page 91).

  • Page 68: Define Hot Keys

    User Manual TD 93119EN Ascom d63 DECT Handset 8.3.2 Define Hot Keys Select "Hot keys". Select "0", "2" to "9". Select "Function", and press "Select" to select function for the Hot key. Select function from list, and press "Back". Select "Value" (only for some of the functions), and press "Select". Enter a value for example a handset number.

  • Page 69: Add Services

    User Manual TD 93119EN Ascom d63 DECT Handset Select in the menu, and press the confirmation button or the Soft key "Select". 8.4.1 Add Services Select "Add new" from the "Services" menu. Choose an appropriate name for the service and enter the name in the "Name" field.

  • Page 70: Inbox

    User Manual TD 93119EN Ascom d63 DECT Handset 8.5.1 Inbox Select "Inbox" to view the message list. Select a message by pressing up and down on the navigation key. Reply to Sender Select "View". Select "Reply". Enter text. Select "Send".

  • Page 71: Write New Messages

    User Manual TD 93119EN Ascom d63 DECT Handset Enter name for the contact. Press "OK". Press "Save". The number is saved in the contact list. 8.5.2 Write New Messages Select "Write new message". Enter text, and press "Send". See also 6 Messaging on page 35....

  • Page 72: Profiles

    User Manual TD 93119EN Ascom d63 DECT Handset Profiles An own profile can be set up for incoming calls, message alerts, message volume, vibrating alerts, key sound etc. This can be useful when there are many users on the same handset who require different sound profiles.

  • Page 73: Contacts

    User Manual TD 93119EN Ascom d63 DECT Handset Activate Profile Enter the menu by pressing the “Menu” Soft key, or the confirmation button on the Navigation key. Select in the menu. Select profile from list. When a profile is activated, the icon and the name of the profile are displayed in idle mode.

  • Page 74: Call Contact

    User Manual TD 93119EN Ascom d63 DECT Handset Enter the menu by pressing the “Menu” Soft key, or the confirmation button on the Navigation key. Select in the menu, see 3.2 Contacts on page 16. 8.7.1 Call Contact Select "Call contact".

  • Page 75: Edit Contact

    User Manual TD 93119EN Ascom d63 DECT Handset 8.7.3 Edit Contact Select "Edit contact". Select contact, and press "Edit" twice. Enter new name/number, and press "OK". Tip: A variable or the character U can be added to the Work/Mobile/Other number field to allow the user to enter additional numerical characters before calling the number.

  • Page 76: Settings

    User Manual TD 93119EN Ascom d63 DECT Handset View Last Search Result Select "Last result". Only the last result is displayed. Settings Enter the menu by pressing the “Menu” Soft key, or the confirmation button on the Navigation key. Select in the menu, see 3.8 Settings...

  • Page 77: Keypad Lock Settings

    User Manual TD 93119EN Ascom d63 DECT Handset Turn the Vibrator On or Off If the vibrator is activated, it vibrates on incoming calls and messages. In addition, the vibrator can also be activated when receiving a message during a call. For more information,...

  • Page 78: Phone Lock Settings

    User Manual TD 93119EN Ascom d63 DECT Handset Activate the Automatic Key Lock The user activates the automatic key lock and sets the Auto lock time from the handset "Settings" menu in the following way: Select “Locks”. The "Locks" menu is displayed.

  • Page 79: Display Settings

    User Manual TD 93119EN Ascom d63 DECT Handset Enter PIN code. Press "OK". Press the "Back" soft key twice to return to the "Locks". Select "Auto lock time". Select the required lock time. If the PIN code has been forgotten, it can be removed by the handset distributor.

  • Page 80: Time And Date Settings

    User Manual TD 93119EN Ascom d63 DECT Handset Brightness Select “Display”. Select “Brightness”. Select “Normal” or “Power save”. Press "Back". Rotate display text Select “Display”. Select “Rotate display text”. Select “Normal” or “Inverted”. Press "Back". Font style Select “Display”. Select “Font style”.

  • Page 81: Answering

    User Manual TD 93119EN Ascom d63 DECT Handset • MMM DD YYYY, for example, Sep 17 2016 • DD MMM YY, for example, 17 Sep 16 • DD.MM.YYYY, for example, 17.09.2016 • DD-MM-YYYY, for example, 17-09-2016 Press "Select" to save the setting.

  • Page 82: Change Owner Id

    User Manual TD 93119EN Ascom d63 DECT Handset 8.8.9 Change Owner ID The Owner ID is set to identify the handset. Select "Owner ID". Enter identity. Press "Save". 28 June 2016 / Ver. PA5...

  • Page 83: Procedure Call

    User Manual TD 93119EN Ascom d63 DECT Handset Procedure Call When configuring the functions Call services, In Call menu, Contacts, or a shortcut or service to the Phone call function, the data added in these functions is static. When entering the...

  • Page 84: System Profiles

    User Manual TD 93119EN Ascom d63 DECT Handset System Profiles NOTE: The support for this feature is dependent on what model of handset that is used. For more information, see 1.2 Functions and Accessories on page 2. A system profile can be used when certain settings in a handset are required that the user is not allowed to change.

  • Page 85: Advanced Functions

    User Manual TD 93119EN Ascom d63 DECT Handset associated with the activation and deactivation of a system profile, refer to the system administrator. Advanced Functions 11.1 Admin Menu The handset has a hidden menu for system administrators. See the Configuration Manual...

  • Page 86: System Handling

    User Manual TD 93119EN Ascom d63 DECT Handset System Handling 12.1 Software Upgrade and Additional Features Software and parameters in the handset can be upgraded by using the WinPDM or the Device Manager. See the Installation and Operation Manual for the Portable Device Manager (WinPDM) Windows Version, or the Installation and Operation Manual for the Device Manager.
  • Page 87 User Manual TD 93119EN Ascom d63 DECT Handset When the update is complete, a "Handset is updated" message is displayed to indicate that the handset is available for use, as shown in figure 15. Select the "OK" soft key to close the message.

  • Page 88: Troubleshooting

    User Manual TD 93119EN Ascom d63 DECT Handset Troubleshooting This section contains information on how to solve common operational problems, and warnings you may receive. Go through the following lists if you encounter any problems. If this checklist does not solve the problem, contact your system administrator.
  • Page 89 User Manual TD 93119EN Ascom d63 DECT Handset Fault Probable cause Action or comment 2) The IP-DECT system is not 2) Subscribe the handset configured for Easy Registration. manually, see Subscribe Handset in DECT System Manually on page 50, configure the system to...
  • Page 90 User Manual TD 93119EN Ascom d63 DECT Handset SERVICE NEEDED Easy replacement procedure not Send the handset for service. Invalid IPDI followed correctly or failure during easy replacement procedure. Note: This display message is only shown in English. Enter PIN code The handset’s lock is activated.

  • Page 91: Operation Notice

    User Manual TD 93119EN Ascom d63 DECT Handset Operation Notice 14.1 Accessibility and Voice Quality The base network is not always available. If you do not get in contact with your system, contact your system administrator. For best voice quality, avoid positioning near computer, radio or similar equipment.

  • Page 92: Maintenance

    User Manual TD 93119EN Ascom d63 DECT Handset Maintenance 15.1 Maintenance of Batteries 15.1.1 Battery Warnings The "Low battery" icon is displayed when the battery has 10% or less remaining capacity left. In addition; a warning signal sounds every minute and the dialog window "Battery low.

  • Page 93: Easy Replacement Of Handset

    15.2.1 Before Starting Easy Replacement Procedure Check that both the old handset to be replaced and the new replacement handset are of the same device type (d63). NOTE: The Easy Replacement procedure can be used if the old and new handsets have different product licenses, that is, Talker, Messenger, and Protector.
