2.9.4 Identifying the VoIP Intercom Connectors

See the following figures and tables to identify the connectors and functions of the Intercom.
Operations Guide
J7 J6
J9
Connector Function
J2 Call Button LED Interface
J6 Microphone Interface
J7 Speaker Interface
J8 Keypad Interface — Not Used
J9 Auxiliary Strobe Connector — Not Used
J10 Proximity Sensor Interface — Not Used
JP10 Disables the intrusion sensor when installed.

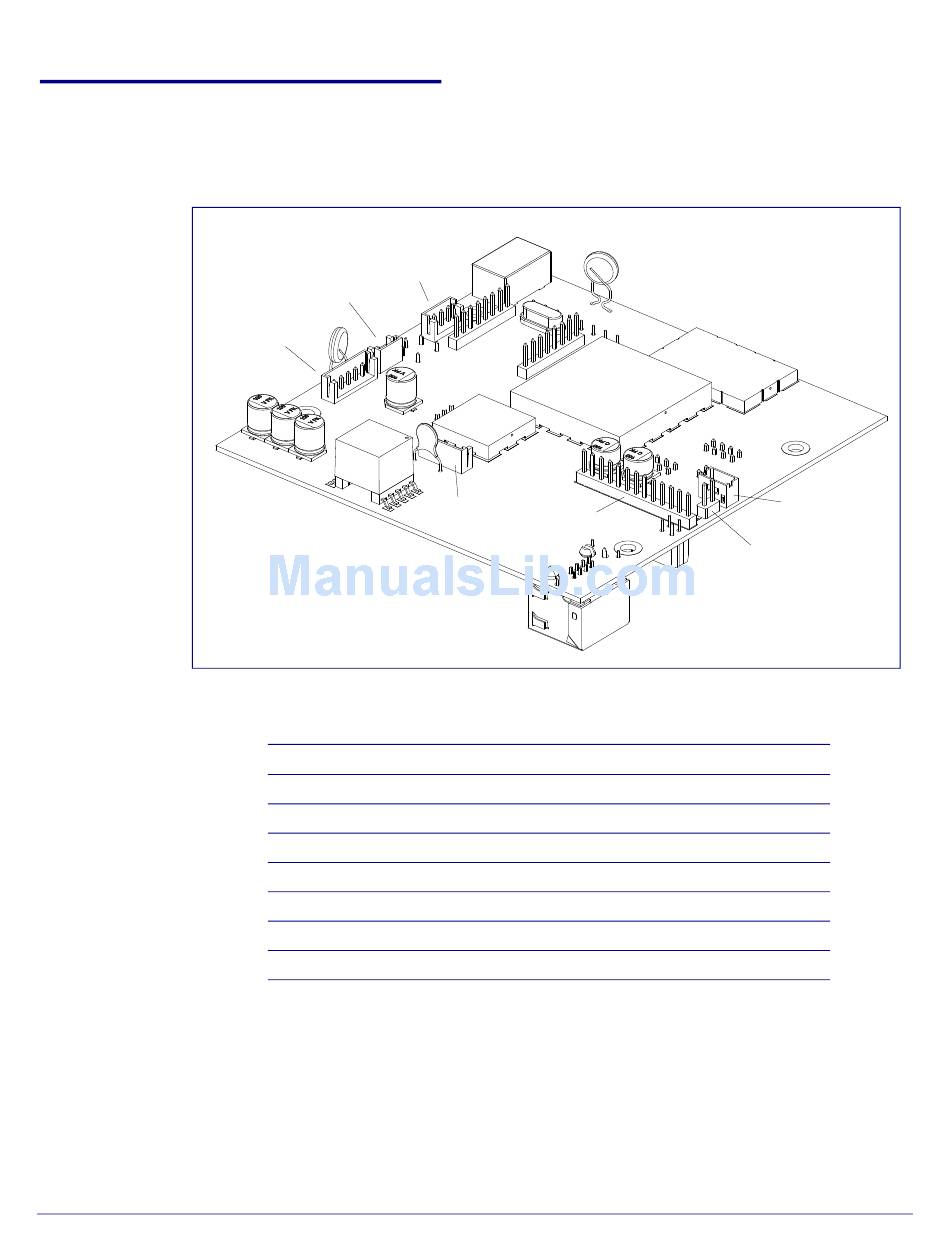

Figure 2-7. Connector Locations
J2 J8
Table 2-2. Connector Functions
