CyberData 011304 Installation Quick Reference

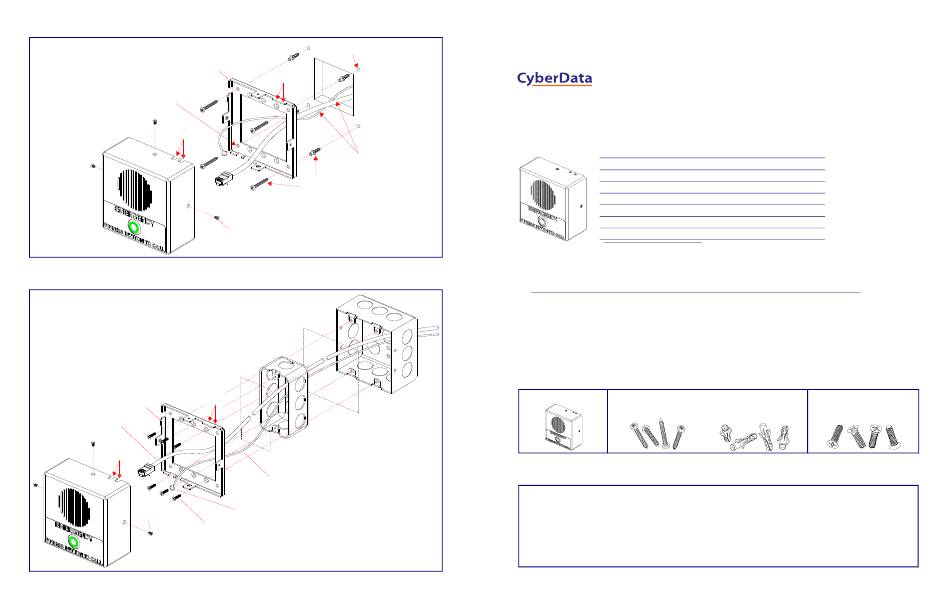

Wall Mounting Options
Backplate
Pick One of Four Mounting Hole
for Ground Wire Connection
Cable
Entry
Slot
Gang Box Mounting Options
Closed
Backplate
Network Cable
(Not Provided)
Cable
Entry
Slot
Mounting
Screw (3x)
121002B
Screw Accessory Kit
Two Gang Box use four
Single Gang Box use two
© 2014, CyberData Corporation, ALL RIGHTS RESERVED 930945A
Pre Drill Holes
(4 Places) on Wall
Cable
Slots
Closed
Wall
Cutout
Network Cable &
Ground Wire
(Not Provided)
121001A
Screw
Accessory Kit
Mounting
Screw (3x)
Wall Cutout
Wall Cutout
Cable
Slots
Backplate accept
Single Gang Box
or Two Gang Box
Ground Wire
(Not Provided)
Ground Wire Connect to
Any Available Mounting Hole
Quick Reference
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Installation Quick Reference
The IP Endpoint Company
Singlewire-enabled
VoIP Emergency Intercom
011304
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Getting Started
• Download the Operations Guide PDF file from the following web page:
http://www.cyberdata.net/products/voip/digitalanalog/singlewireemergencyintercom/docs.html
• Create a plan for the locations of your Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Intercom Assembly (1) Wall Mounting Kit
(4) Sheet Metal Screw
Contacting CyberData
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
(1) Gang Box Mounting Kit
(4) Plastic Ribbed Anchor
(4) #6-32 FlatHead Countersunk
Machine Screw
930945A © 2014, CyberData Corporation, ALL RIGHTS RESERVED
