2.8 Intercom Components

Figure 2-1

2.8.1 Call Button and the Call Button LED

2.8.1.1 Calling with the The Call Button
•
•
•
•
2.8.1.2 Call Button LED Function
•
•
•
Operations Guide
shows the components of the Intercom.
You may initiate a call by pressing the Call button.
An active call is indicated by the Call Button LED blinking at one second intervals.
The Intercom can automatically answer an incoming call.
You can press the Call button to terminate an active call whether the call was an incoming call or
a call that was initiated by you.
Upon initial power or reset, the Call Button LED will illuminate.
When the software has finished initialization, the Call Button LED will blink twice.
When a call is established (not just ringing), the Call Button LED will blink.

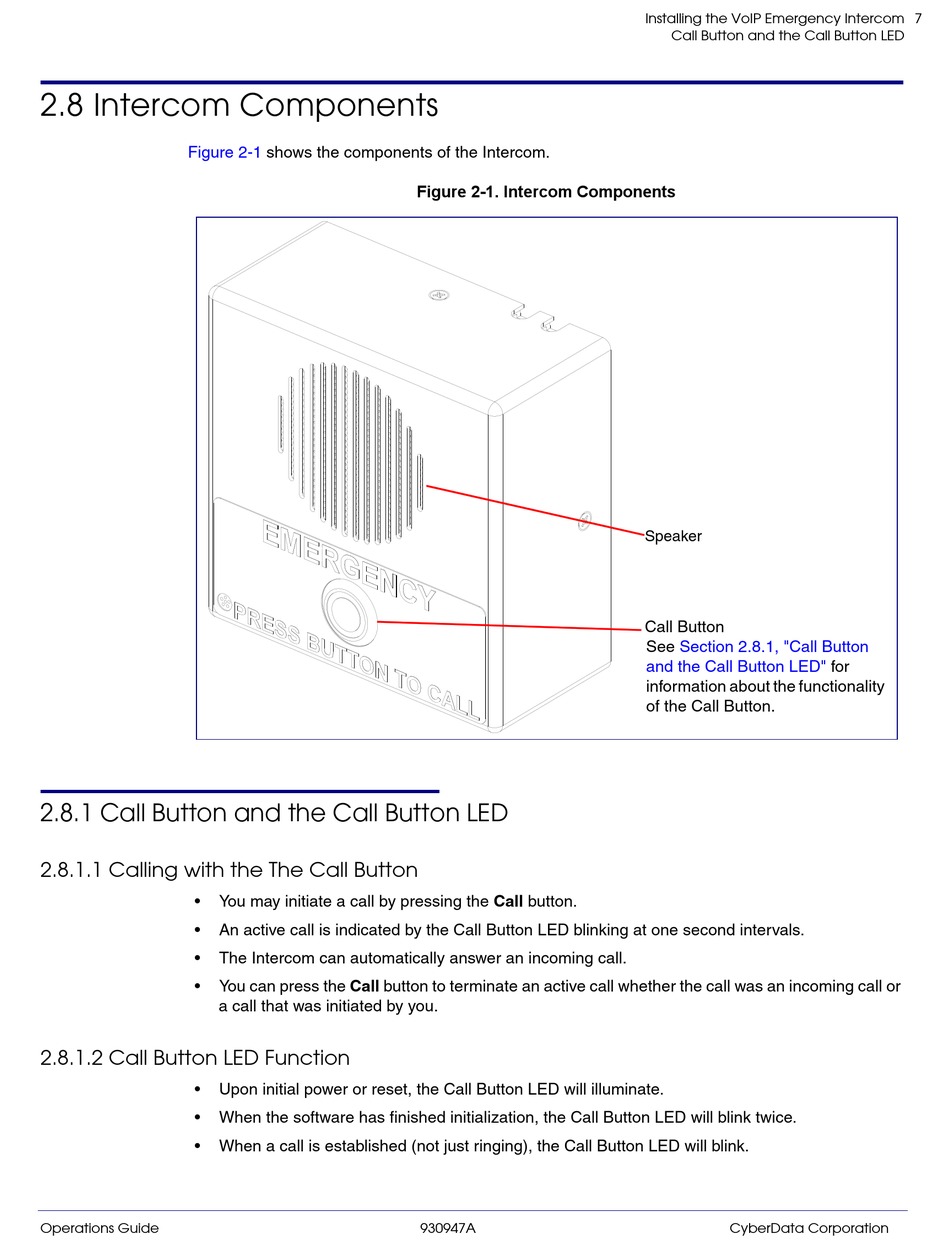

Figure 2-1. Intercom Components
930947A
Installing the VoIP Emergency Intercom
Call Button and the Call Button LED
Speaker
Call Button
See Section 2.8.1, "Call Button
and the Call Button LED"
information about the functionality
of the Call Button.
