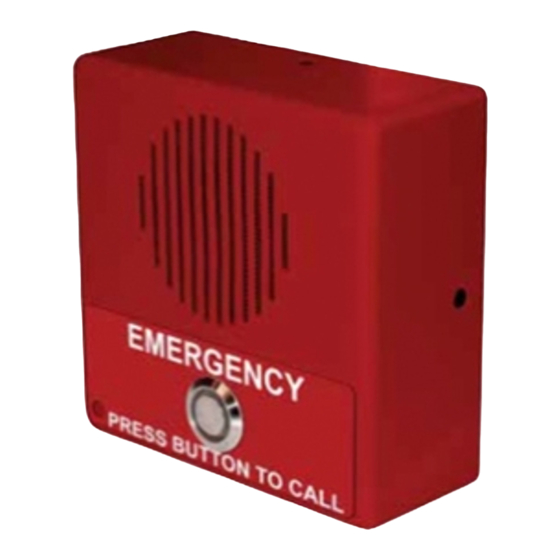

Singlewire-enabled voip emergency intercom
Hide thumbs Also See for 11304:
Table of Contents

Advertisement

Quick Links

Download this manual
The IP Endpoint Company
Singlewire-enabled
VoIP Emergency Intercom

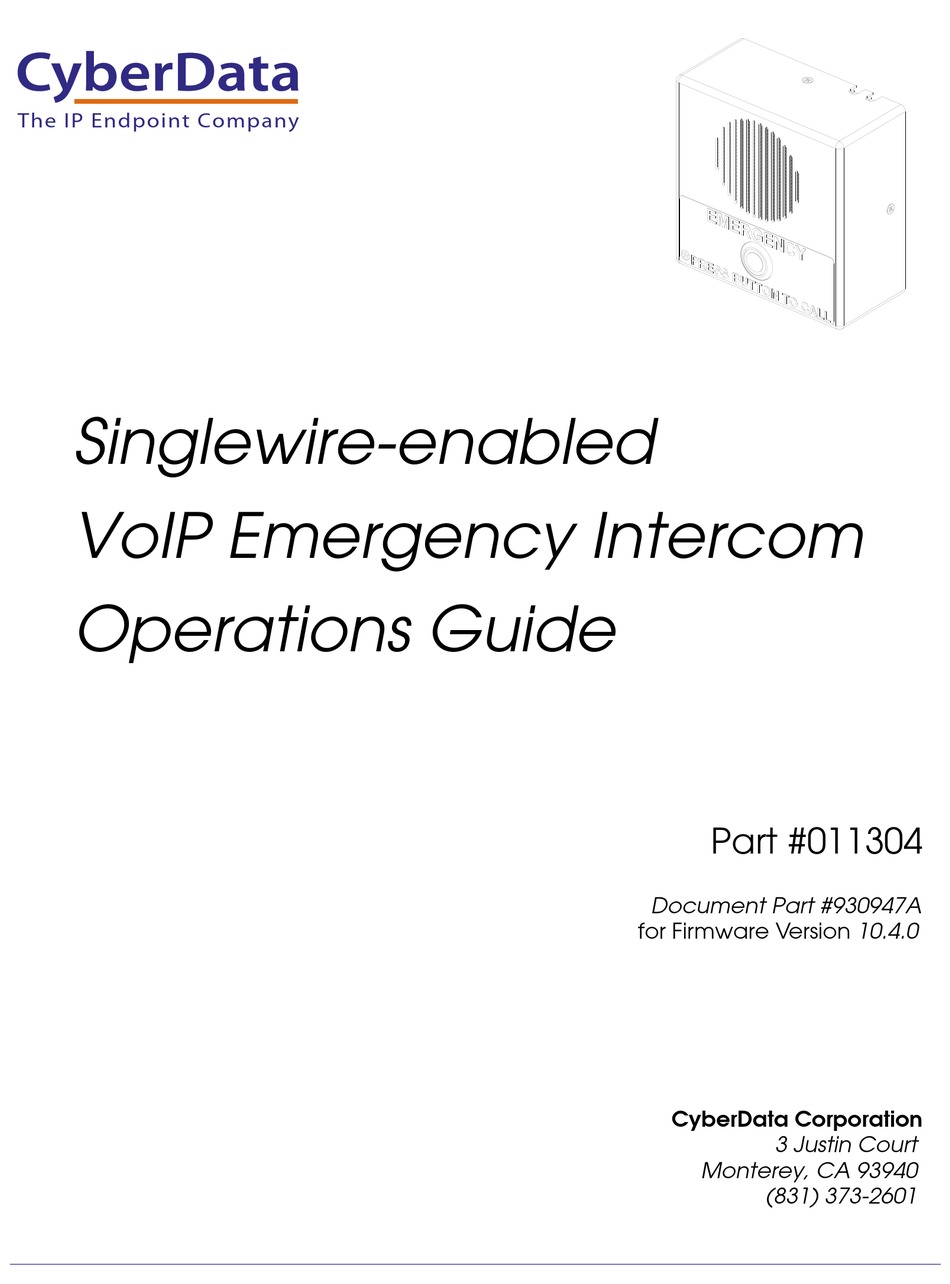

Operations Guide
Part #011304
Document Part #930947A
for Firmware Version 10.4.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601
