Figure A-3

Note

Operations Guide

shows a 1-Gang Box and a 2-Gang Box mounting option.

Be sure to connect the VoIP Emergency Intercom to the Earth Ground.

Backplate

Network Cable

(Not Provided)

Cable

Entry

Slot

Mounting

Screw (3x)

930947A

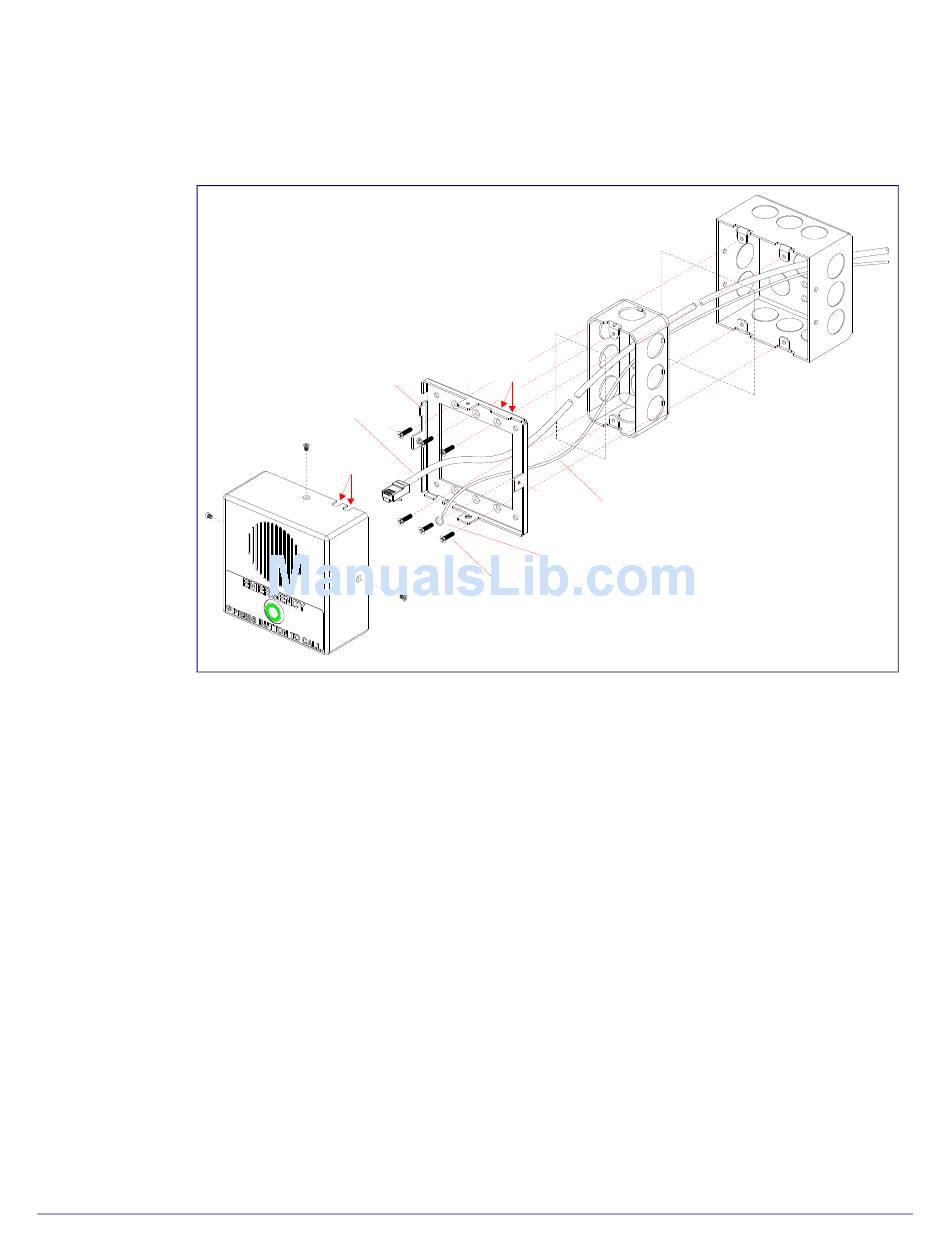

Figure A-3. Gang Box Mounting

Wall Cutout

Cable

Slots

Closed

Ground Wire

(Not Provided)

Ground Wire Connect to

Any Available Mounting Hole

121002B

Screw Accessory Kit

Two Gang Box use four

Single Gang Box use two

Mounting the Indoor Intercom

Wall Mounting Components

Backplate accept

Single Gang Box

or Two Gang Box

CyberData Corporation
