NAT ping
(check box if PBX is not local)
Disable rport Discovery
Call Disconnection
Terminate call after delay (in seconds) Type the desired number of seconds that you want to transpire
RTP Settings
RTP Port (even)
Dial Out Settings
Dial Out Extension
Extension ID
Note
2.10.6.1 Dial Out Extension Strings and DTMF Tones (using rfc2833)
On the
pauses and sending additional DTMF tones (using rfc2833). The first comma will pause three
seconds after a call is first established with a remote device. Subsequent commas will pause for 2
seconds. A pause of one second will be sent after each numerical digit.
Extension String
302
302,2
302,25,,,4,,1
Note
Operations Guide

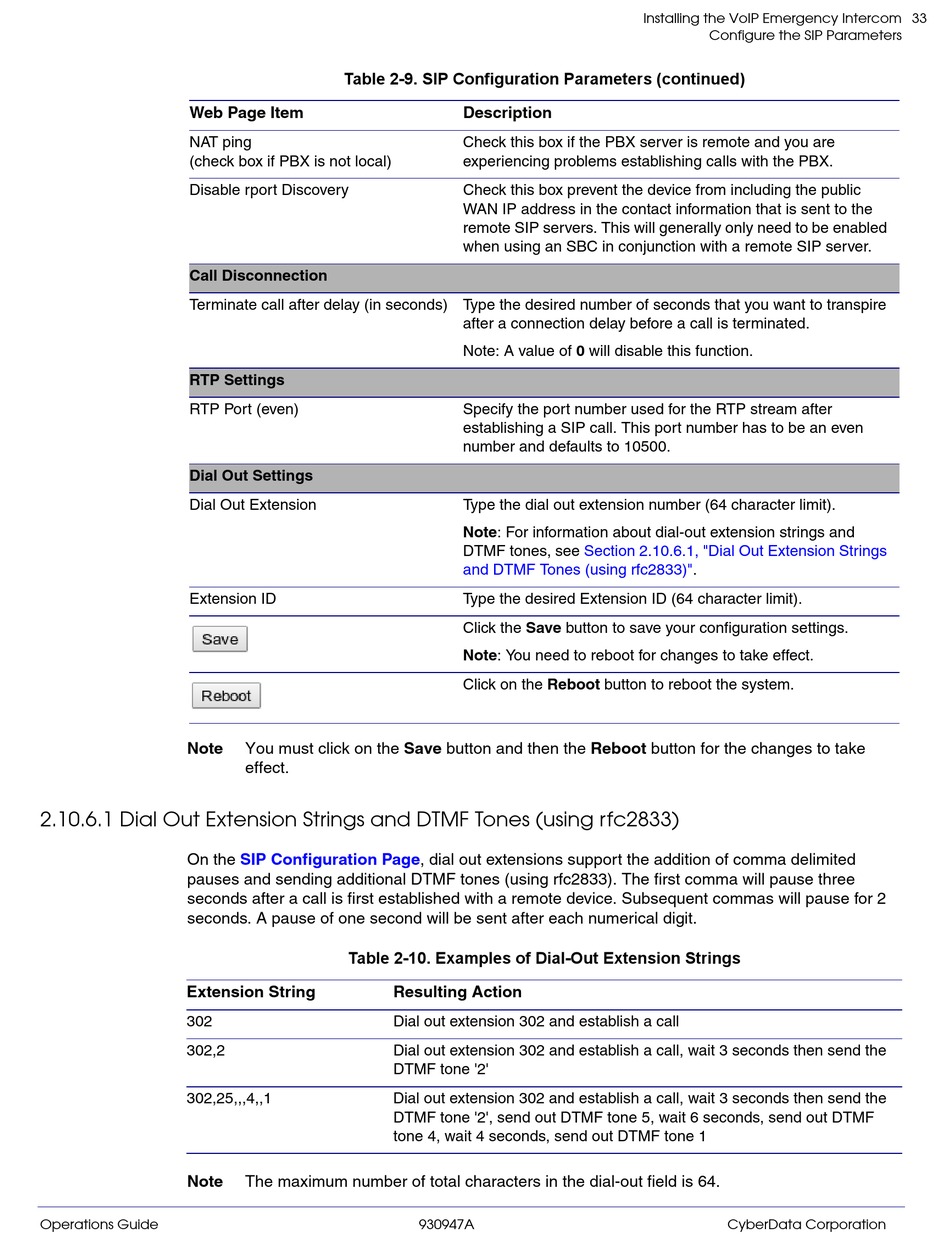

Table 2-9. SIP Configuration Parameters (continued)
You must click on the Save button and then the Reboot button for the changes to take
effect.
SIP Configuration
Page, dial out extensions support the addition of comma delimited
Table 2-10. Examples of Dial-Out Extension Strings
Resulting Action
Dial out extension 302 and establish a call
Dial out extension 302 and establish a call, wait 3 seconds then send the
DTMF tone '2'
Dial out extension 302 and establish a call, wait 3 seconds then send the
DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF
tone 4, wait 4 seconds, send out DTMF tone 1
The maximum number of total characters in the dial-out field is 64.
Description
Check this box if the PBX server is remote and you are
experiencing problems establishing calls with the PBX.
Check this box prevent the device from including the public
WAN IP address in the contact information that is sent to the
remote SIP servers. This will generally only need to be enabled
when using an SBC in conjunction with a remote SIP server.
after a connection delay before a call is terminated.
Note: A value of 0 will disable this function.
Specify the port number used for the RTP stream after
establishing a SIP call. This port number has to be an even
number and defaults to 10500.
Type the dial out extension number (64 character limit).
Note: For information about dial-out extension strings and
DTMF tones, see
Section 2.10.6.1, "Dial Out Extension Strings
and DTMF Tones (using
Type the desired Extension ID (64 character limit).
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
930947A
Installing the VoIP Emergency Intercom
Configure the SIP Parameters
rfc2833)".
CyberData Corporation
33
