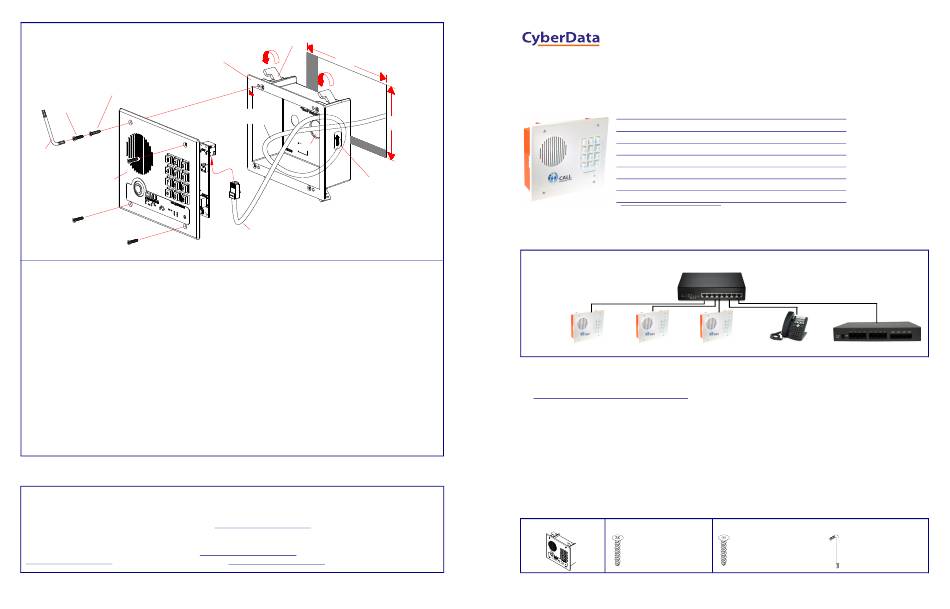

CyberData 011308 Installation Quick Reference

Mounting Options
Fold Down all Flagnuts
Before Insert the Backbox
into the Wall
Mounting
Screws
Mounting
(Phillip Drive)
Screws
(Security
Torx Drive)
Torx Key
Faceplate
Assembly
To mount the Intercom:
1. Make a wall cutout as shown in the picture.
2. Use a flat blade screwdriver to remove the knockout (KO) of the gang box.
3. Feed the ground wire (shown in the "Ground Connection" section) and the network cable from the wall cutout through the
knockout hole of the gang box.
4. Create a service loop for both the ground wire and network cable.
5. Plug the network cable into the J1 connector.
6. Make sure that the arrow labels on the sides of the gang box are pointing up. This will ensure that the intrusion sensor
functions properly.
7. Fold down all of the flagnuts, and then insert the gang box into the wall cutout.
8. Tighten the flagnuts with a size #2 Phillips screwdriver.
9. Use either a size #2 Phillips screwdriver or a Torx Driver Bit to secure the Intercom faceplate assembly to the gang box
with either Phillips drive screws or security Torx drive screws.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
Flagnuts
(4 Places)
6.03 inches
[153mm]
Wall
Cutout
Create Service Loop
Inside Gang Box
Knockout
J1
Arrow Labels must
Point Upward.
This will Ensure
the Intrusion Sensor
Function Properly.
Network Cable
to J1
Ground Wire &
Network Cable are
Not Provided
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931642B Quick Reference
The IP Endpoint Company
5.28 inches
[134mm]
Typical System Installation
*More installation and mounting
options are available in the
Operations Guide.
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011308
• Create a plan for the locations of your Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Intercom Parts
Tool required for assembly: A size #2 Phillips screwdriver
(1) Intercom Assembly
Quick Reference
Installation Quick Reference

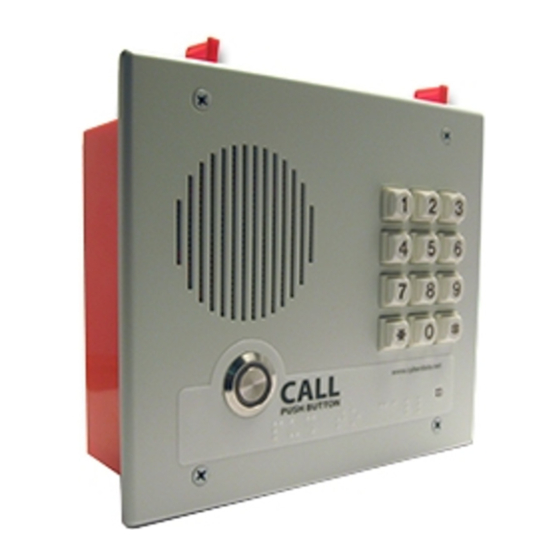

InformaCast Enabled Indoor
Intercom with Keypad, Flush Mount
011308
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Switch
Intercom Intercom Intercom
(1) Mounting Kit (1) Optional Mounting Kit
(4) #6 X 3/8-inch,100 Deg., (4) #6 X 3/8-inch,100 Deg.,
Flat Head, Self-Tapping Screw Flat Head T15 Security Pin Torx
Screw
931642B
IP Phone InformaCast Server
(1) T15 Security Pin Torx Key
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
