2.2 Intercom Components

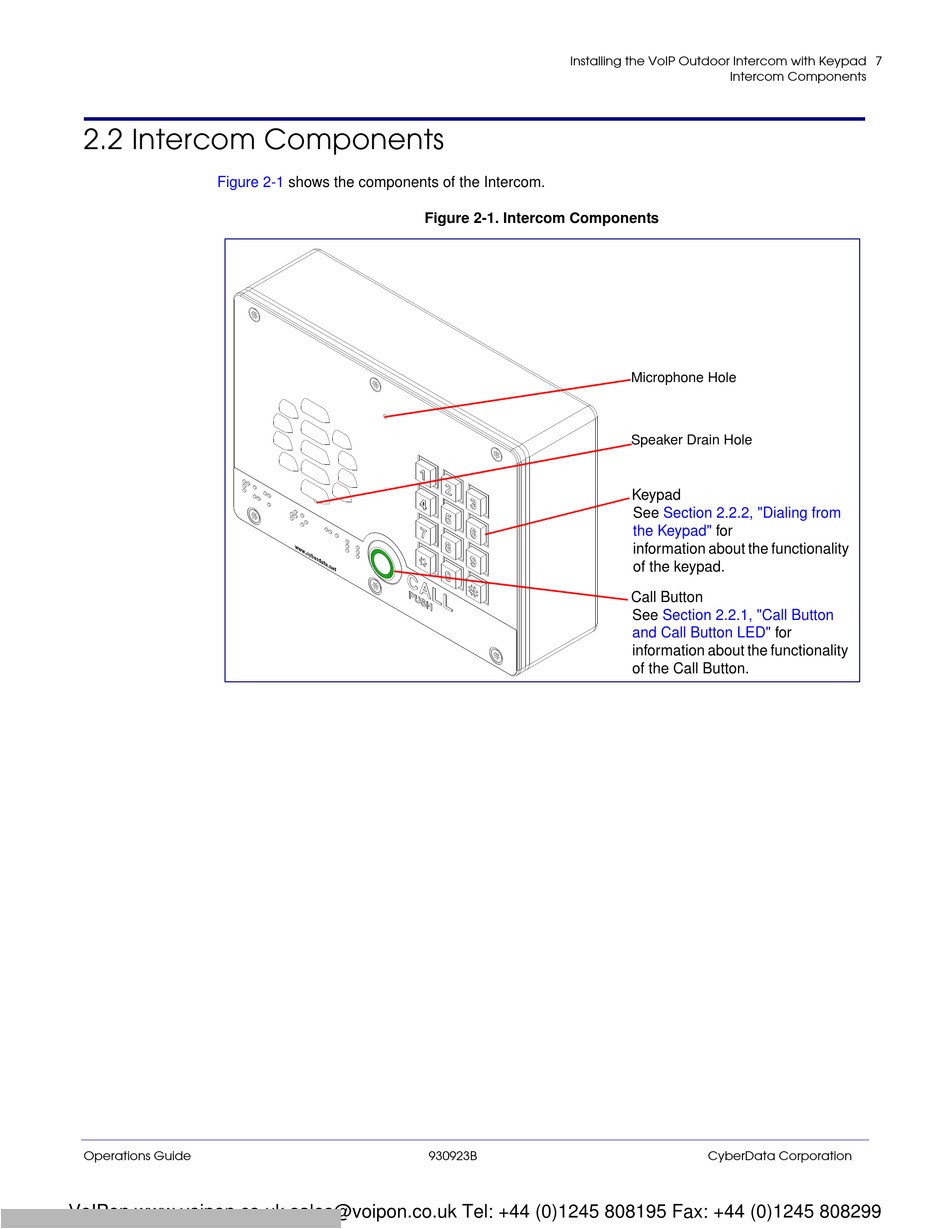

Figure 2-1
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
shows the components of the Intercom.
Figure 2-1. Intercom Components
930923B
Installing the VoIP Outdoor Intercom with Keypad
Intercom Components
Microphone Hole
Speaker Drain Hole
Keypad
See Section 2.2.2, "Dialing from
for 
the Keypad"
information about the functionality
of the keypad.
Call Button
See Section 2.2.1, "Call Button
and Call Button LED"
information about the functionality
of the Call Button.
CyberData Corporation
7
for 
