2.2 Intercom Components
Figure 2-1
Operations Guide
shows the components of the Intercom.

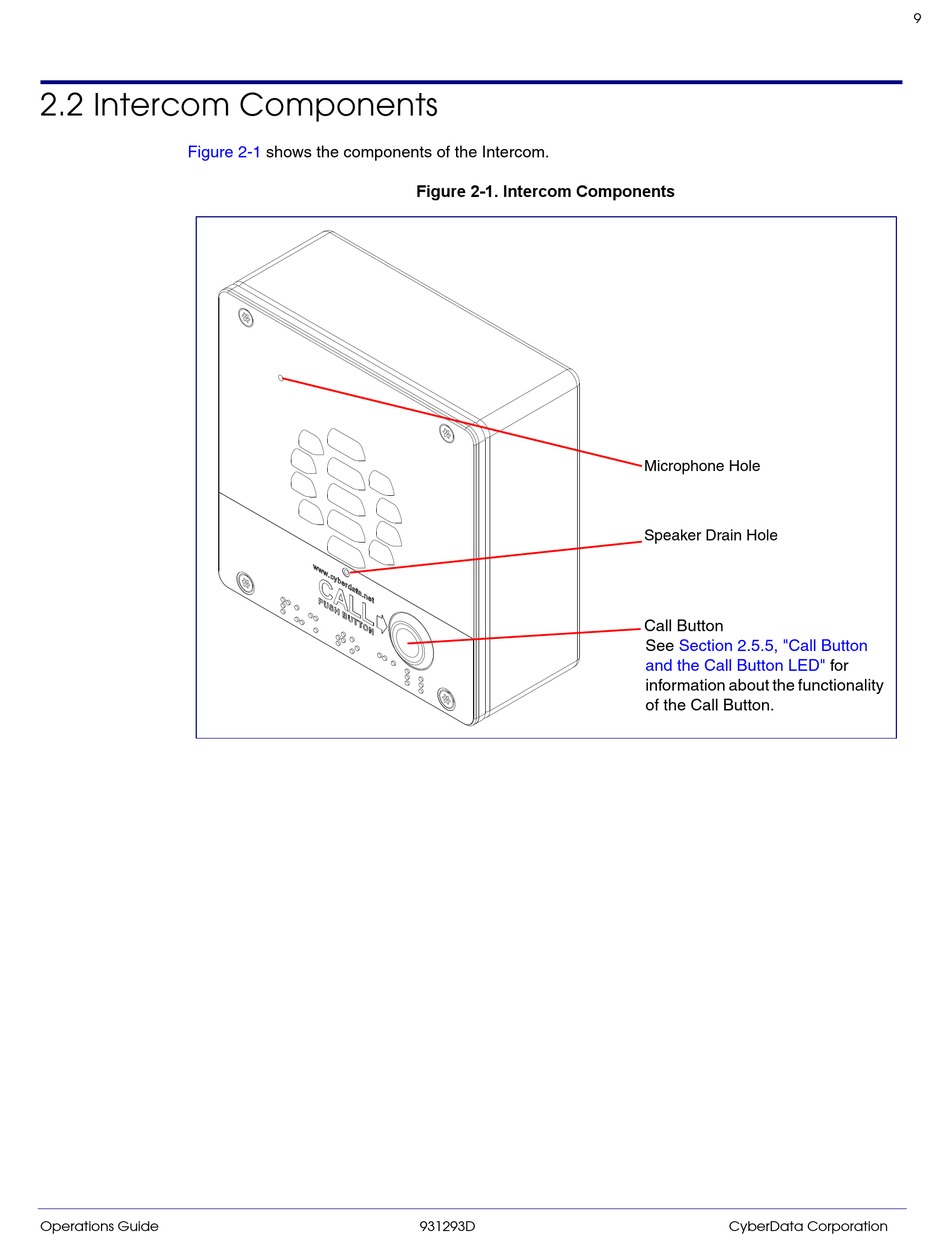

Figure 2-1. Intercom Components
931293D
Microphone Hole
Speaker Drain Hole
Call Button
See
Section 2.5.5, "Call Button
and the Call Button LED"
information about the functionality
of the Call Button.
CyberData Corporation
9
