Recipe/Extended Memory Editor
The Recipe/Extended Memory Editor is an application that allows you to create, view, and modify recipe (*.rcp)
files and Extended Memory (*.emi) files. You can also use this editor to import/export recipe and extended memory
files to CSV formatted files which can then be shared by other applications.
To create a new Recipe/Extended Memory file:
From the Project Manager application, click Recipe/Extended Memory Editor:

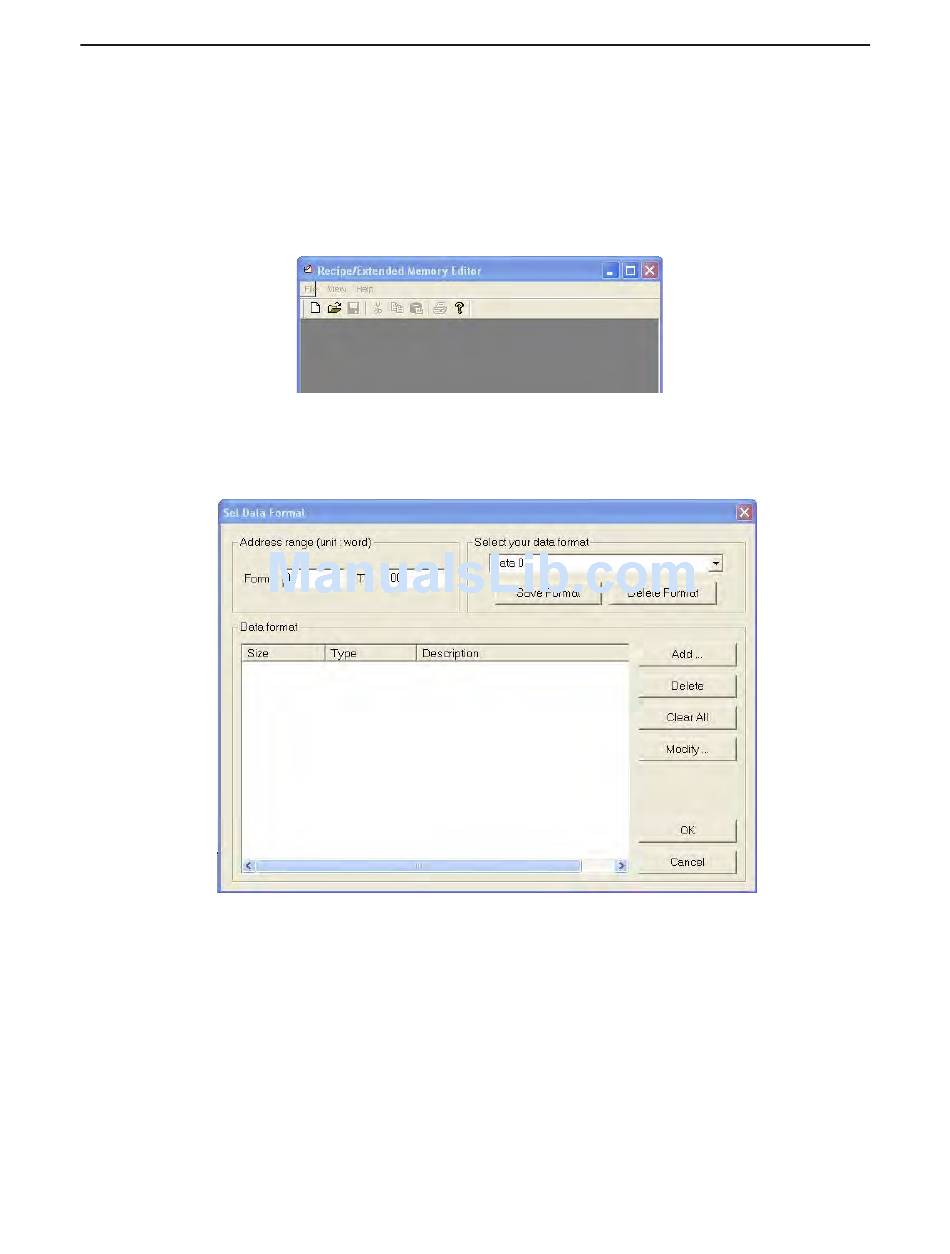

1. Click File . . . New. The following dialog box appears:
2. Address range (unit:word) frame -- use this frame to select the total number of RW (recipe word) registers or
EMx (Extended Memory) registers that are used for the recipe or extended memory file. In the example above,
RW0 thru RW100 will be used.
3. Data format frame- use this area to enter how each data register element is be interpreted by the OIT. The data
collected and stored in recipe/extended memory files is in binary format and does not contain any information about
how each data should be interpreted by the OIT (for example, is the data in 16-bit signed integer format or BCD?).
Therefore, the data format is used to define how each data element is formatted (ie. Signed vs Unsigned, 16-bit vs
32-bit, Float, String, etc.).
