History Data Display
The History Data Display shows data captured by the Data Sampling object (for more information on using the Data
Sampling object, see Chapter 12: Bar Graphs, Meters and Trends, Section 'Creating Trend Displays & Data
Sampling Objects').

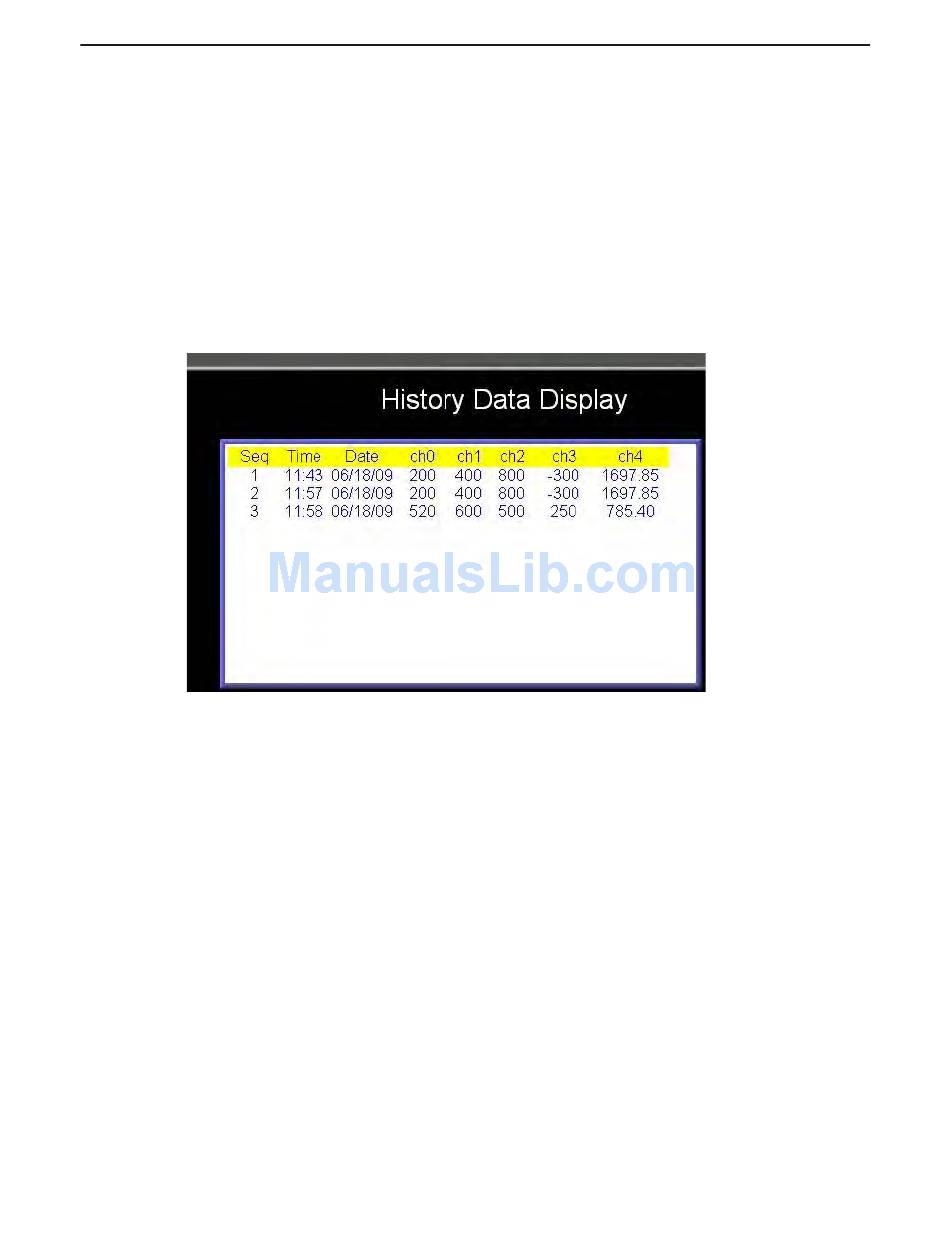

Data is displayed in tabular format with option to show the time and/or date of when data was captured. A control
register is used to determine which historical data record is displayed (i.e. most recent, yesterday, etc.) based upon
date of capture:
The OIT reads from the Sampling Object datalog file (*.dtl) immediately after the screen that contains the History
Data Display object is displayed. Note: the data is only read and updated whenever the screen is first displayed.
Data recorded to the datalog file (*.dtl) after the History Data Display object is shown will not appear on the History
Data Display object until the screen is refreshed (closed, then opened again). A maximum of 20 channels can be
displayed.
