Panel Prep A Ra Tion - Maple Systems Silver Series Installation And Operation Manual

12

Panel Prep a ra tion

A metal panel or mounting surface with a minimum thickness of 15 gauge (0.059 inch/3.3mm) if cold-rolled steel or
hardened steel, or 10 gauge (0.101 inch/2.6mm) if aluminum alloy (6061-T6 preferred) is required. Thinner panels
or surfaces may bow between the mounting clamps and not form a seal with the gasket.
The area of the panel or mounting surface where the gasket comes into contact must be flat and free of scratches,
pits, and other features that prevent the gasket from sealing properly. If the panel or mounting surface is not
uniform, thick, flat, stiff, or smooth enough, then a sealant such as silicone may be required.
Clean and deburr the panel cutout before the OIT is installed.
1010-1007W, Rev 06

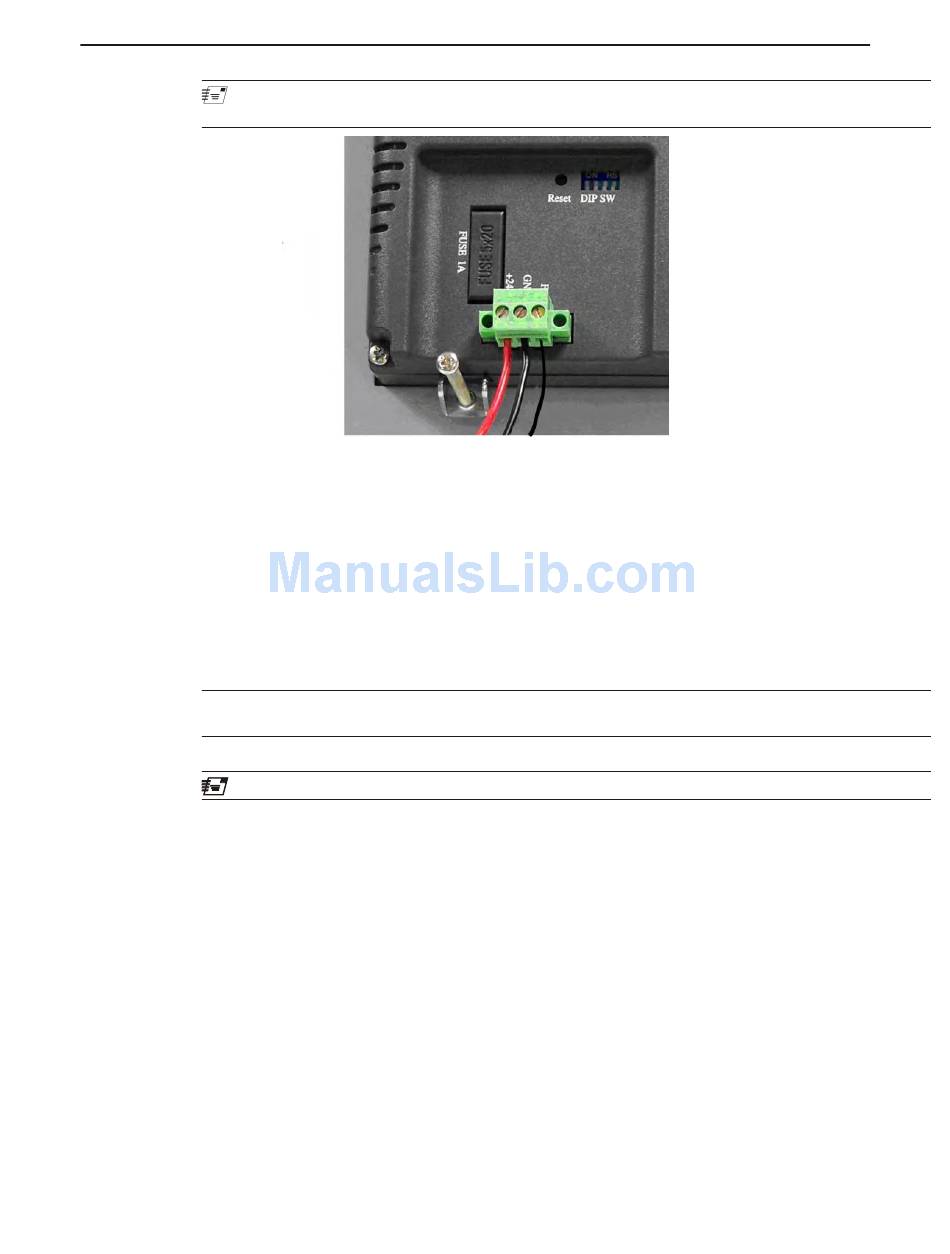

The power connector on the Silver Series is a terminal block with wire clamps. Lugs
are not required.
Typ i cal Power Wir ing
WARNING: The OIT requires a stiff, flat, smooth mounting surface free of blemishes
to seal properly to NEMA 4.
Sil ver Se ries In stal la tion & Op er a tion Man ual
