Attaching and Adjusting the Articulating Support Bracket

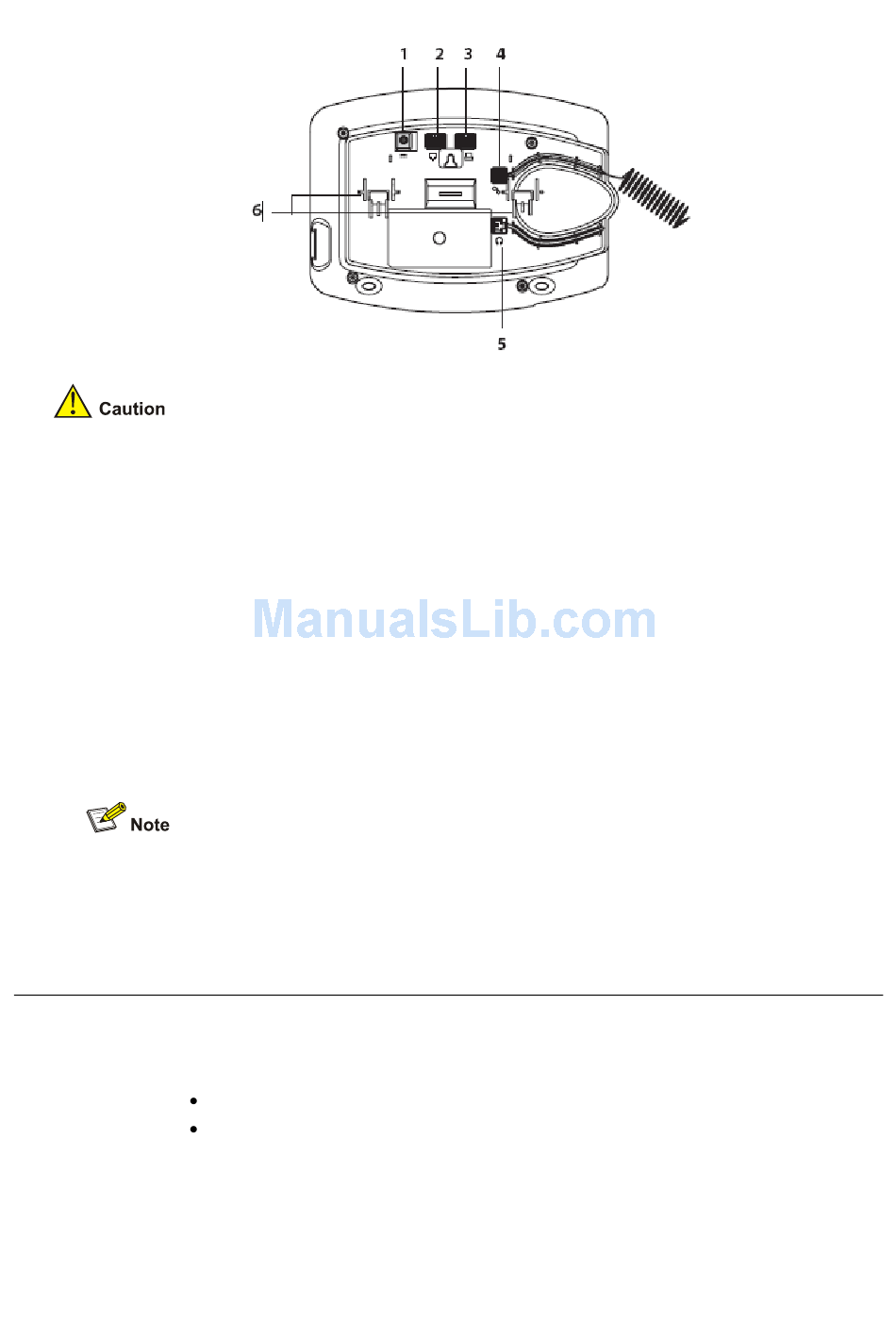

Figure 5 Underside of the VCX 3102 Business Telephone
The VCX system operates over the LAN, not through traditional telephone wiring.
Your telephone connects to the VCX system through an RJ-45 LAN connector instead
of an RJ-11 telephone connector. Your telephone will not work unless it is connected
properly. Ask your administrator if you have questions about your telephone
connection.
The underside of an VCX telephone or attendant console includes:
2) AC power adapter connection
3) Ethernet connector for connection to the LAN
4) Ethernet connector for an optional connection to your desktop computer.
5) Handset connector
6) Headset connector (3102 and 3103 only)
7) Tabs for the support bracket
For information about the underside of each VCX Telephone, and for information
about how to connect any VCX Telephone or Attendant Console to a Power over
Ethernet source, see the packing sheet that comes with the device.
Strain relief clamps are built into the 3101/3102/3105 support bracket.
The articulating support bracket is common to the following devices:
3Com 3105 Attendant Console
3Com 3101 and 3101SP Basic Telephones
Figure 6, Figure 7, and Figure 8 show a 3102 Telephone. The instructions apply to all
telephones.
