VCX Business Telephone — Model 3102

Buttons and Controls

A button's function depends on the option selected. The buttons are, left to right:
This chapter describes the buttons, controls, and features on the 3Com® VCX™
Model 3102 Business Telephone.
This chapter includes the following topics:
Buttons and Controls
Access Buttons
Status Lights
Assigning Model 3102 Access Button Functions Using the TUI
For information about the 3105 Attendant Console, see Chapter3.
To verify the model number of your telephone, refer to the label under the telephone.

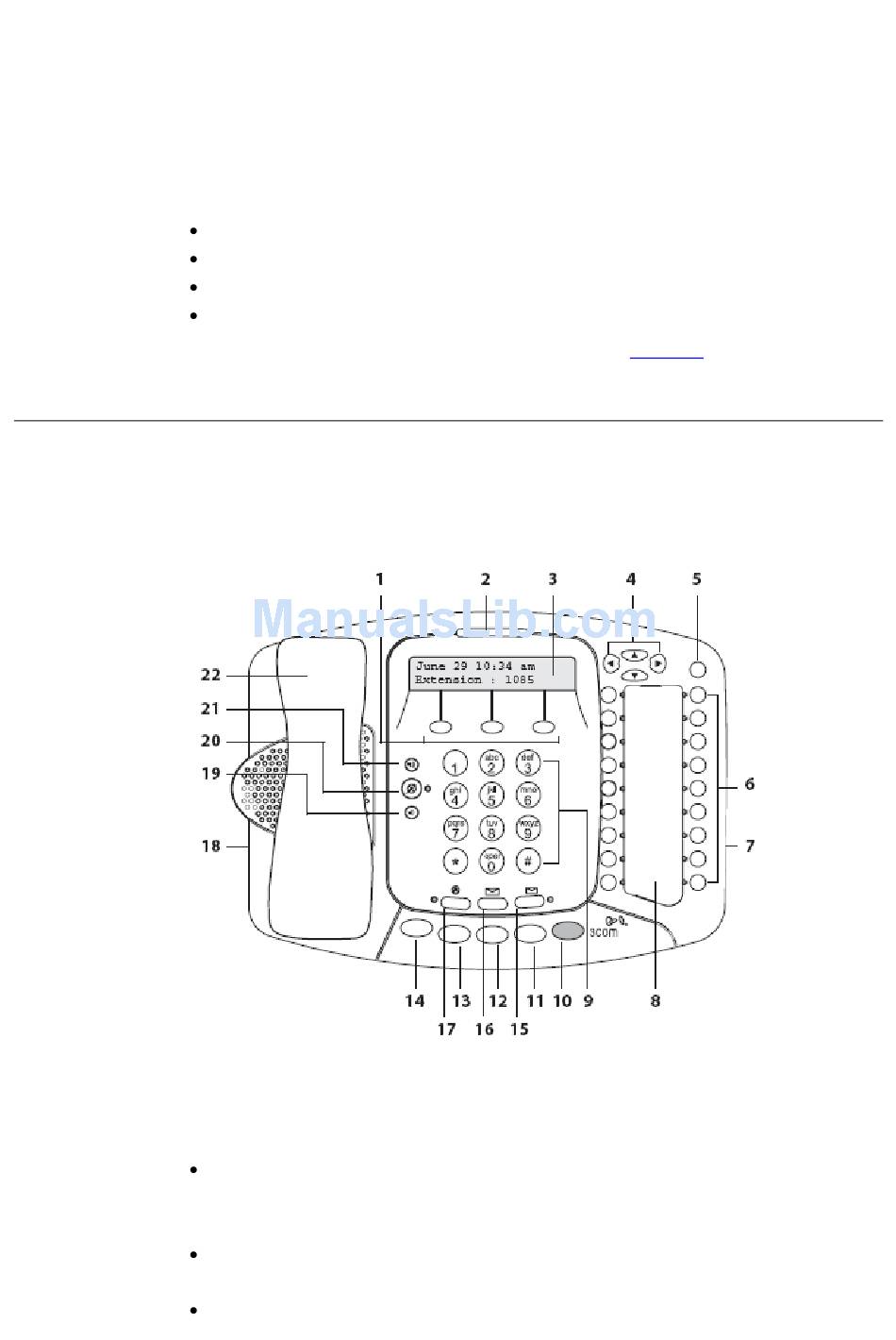

Figure 1 shows the buttons and controls on the VCX Model 3102 Business Telephone.
Figure 1 VCX Model 3102 Business Telephone
1) Soft buttons — Use the soft buttons to navigate through Display Panel options.
Slct (Select) — Use this button to select a displayed item. For example, you can
use this button to automatically dial a previously placed or received call or a missed
call.
Back — Use this button to move the cursor backwards one space and delete the
current space). You can also use this button to sort displayed items.
Exit — Use this button to exit the currently displayed option.
