In this example, the keypad is powered
by ENVIROMUX and the tamper switch
will break the circuit to the electric
strike if opened.
Through the ENVIROMUX firmware,
the closure of OUTPUT 1 on the keypad
will cause an alert message and can close
the OUTPUT RELAY 1 normally open switch,
powering the electric strike.
On the sensor configuration page,
the tamper can be configured to
block the closure of OUTPUT RELAY 1.
Note: Up to two keypads may be connected
to the RJ45 sensor ports provided only 1 is
connected per row of ports. (i.e. one keypad
may be connected to any port 1-8, and one
may be connected to any port 9-16).
DIGITAL IN terminals 1-7 are
rated at 50mA max.current
DIGITAL IN terminal 8 is rated
at 650mA max. current.
Connect to any
on the Digital IN block
= Point in drawing where wires cross but
DO NOT intersect

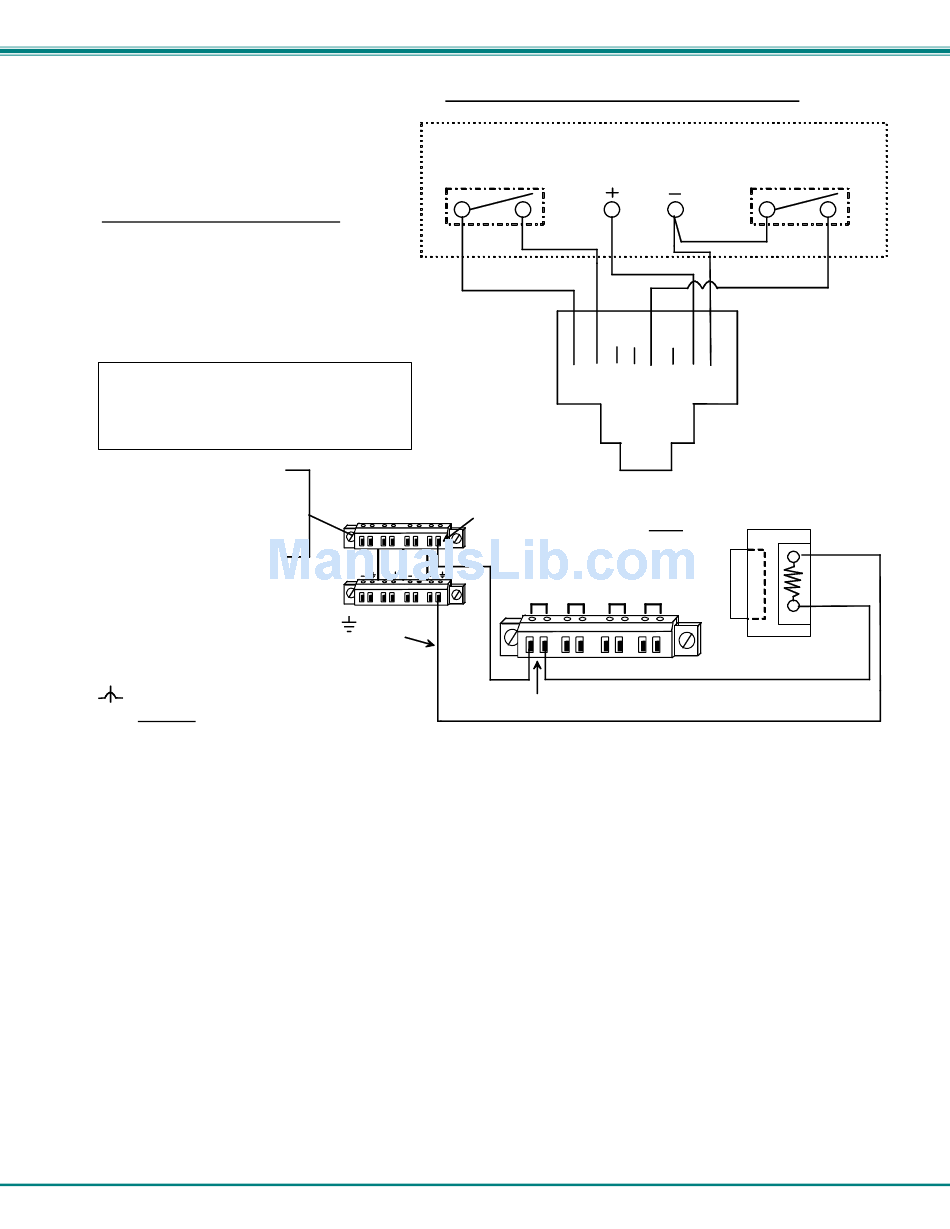

Schematic for wiring Keypad to RJ45 Socket
OUTPUT 1
COM N.O.
orange
wht/orange
For 5VDC keypad,
substitute pin 4(5VDC)
for pin 7(12VDC).
DIGITAL IN
Electric Strike (ENVIROMUX-EDR-SCR
5 6 7 8
+ 12V + 12V + 12V + 12V
or ENVIROMUX-EDR-SF) must
be connected to DIGITAL IN 8.
OUTPUT RELAYS
1
terminal
(Output Relay 1 is set to a N.O. state.)
75
Keypad
12VDC
wht/brown
brown
1 2 3 4 5 6 7 8
Pins 3,4, and 6
are not used
here
View looking into RJ45 Socket
2 3 4
ENVIROMUX-EDR-SCR
TAMPER
(N.C.)
wht/blue
Fail Secure
Electric Strike
