NTI SERVER ENVIRONMENT MONITORING SYSTEM

WIRING METHODS

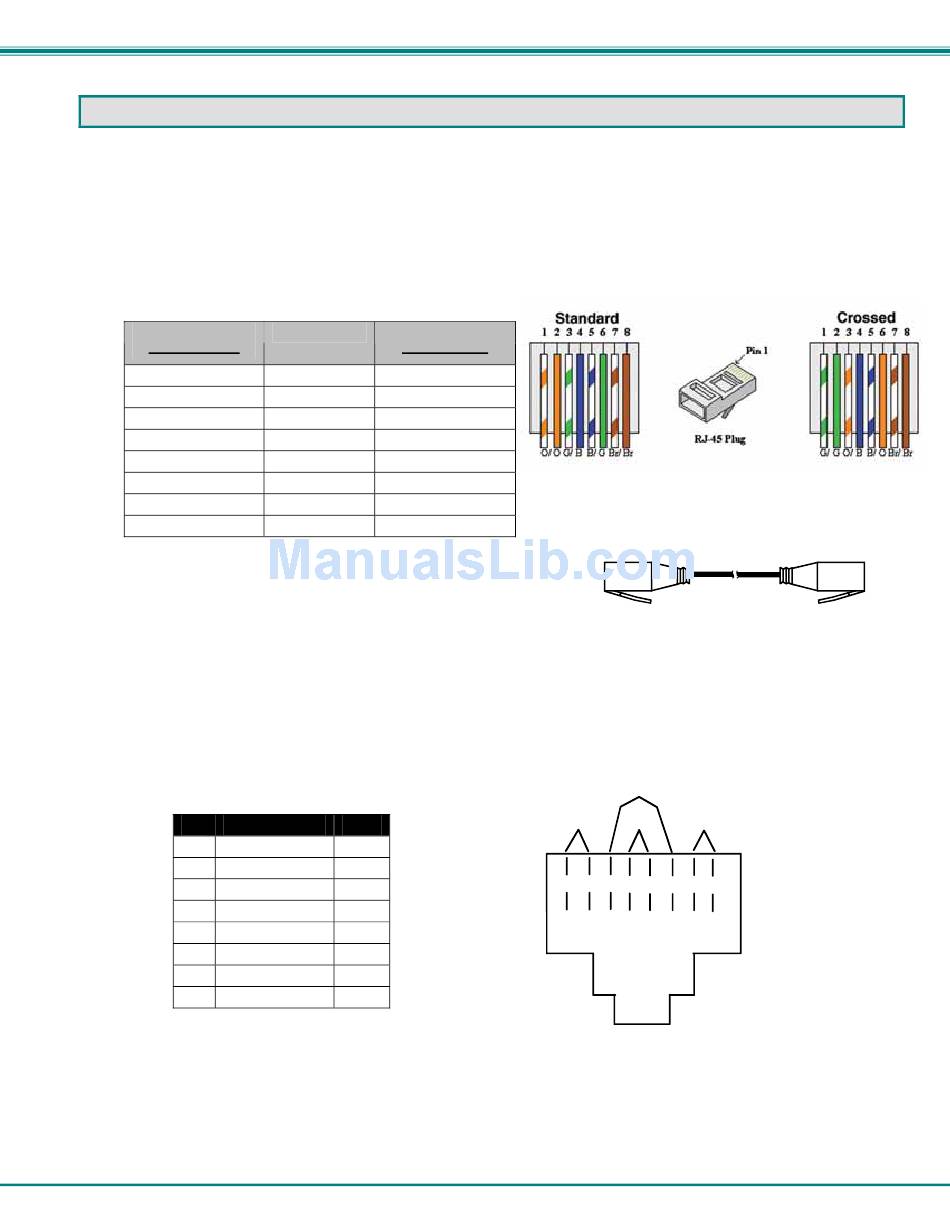

PC-to ENVIROMUX Crossover Cable

In order to make a direct connection between a PC and the ETHERNET connector of the ENVIROMUX-SEMS, a crossover cable
must be used. The cable is made with CAT5 cable terminated with RJ45 connectors and wired according to the chart below.
Pin assignment at
Standard End
1
2
3
4
5
6
7
8

RS485 Sensor Cable

The CAT5 connection cable between the ENVIROMUX and the external RS485 Sensors (page 10) is terminated with RJ45
connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is as per the table and drawing below.
Pin Wire Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
Wire Color Pin assignment at
Crossed End
White/Orange 3
Orange 6
White/Green 1
Blue 4
White/Blue 5
Green 2
White/Brown 7
Brown 8
Pair
2
2
3
1
1
3
4
4
Standard
End
Pair 3
Pair 2 Pair 1
T
T R R T
3
1 2 4
5
+ - +
-
+
(View Looking into RJ45 Socket)
72
Crossed
End
Crossover Cable
Pair 4
R T R
8
6 7
+ -
-
