FRONT PANEL LED INDICATORS

Front Panel LED Status Chart
LED Label Status
Pwr OFF
Solid ON
Blinking slowly
(once /second)
Blinking rapidly
Low Batt OFF
Solid ON
Blinking
Check Log OFF
ON
Int Alert OFF
ON
Ext Alert OFF
ON

System Reset Button

A reset button is located on the front of the ENVIROMUX-SEMS-16 (see Figure 58). The button can be used to reboot/restart the
firmware of the ENVIROMUX. Pressing this button supersedes the use of the power on/off switch and battery backup to allow the
firmware to easily reboot in the event of a system lockup. To activate a reset, momentarily press the button with a pen or other
small pointed object. The ENVIROMUX will reboot and be ready for login within its usual start-up time period.
Low
Check
Pwr
Batt Log
Reset

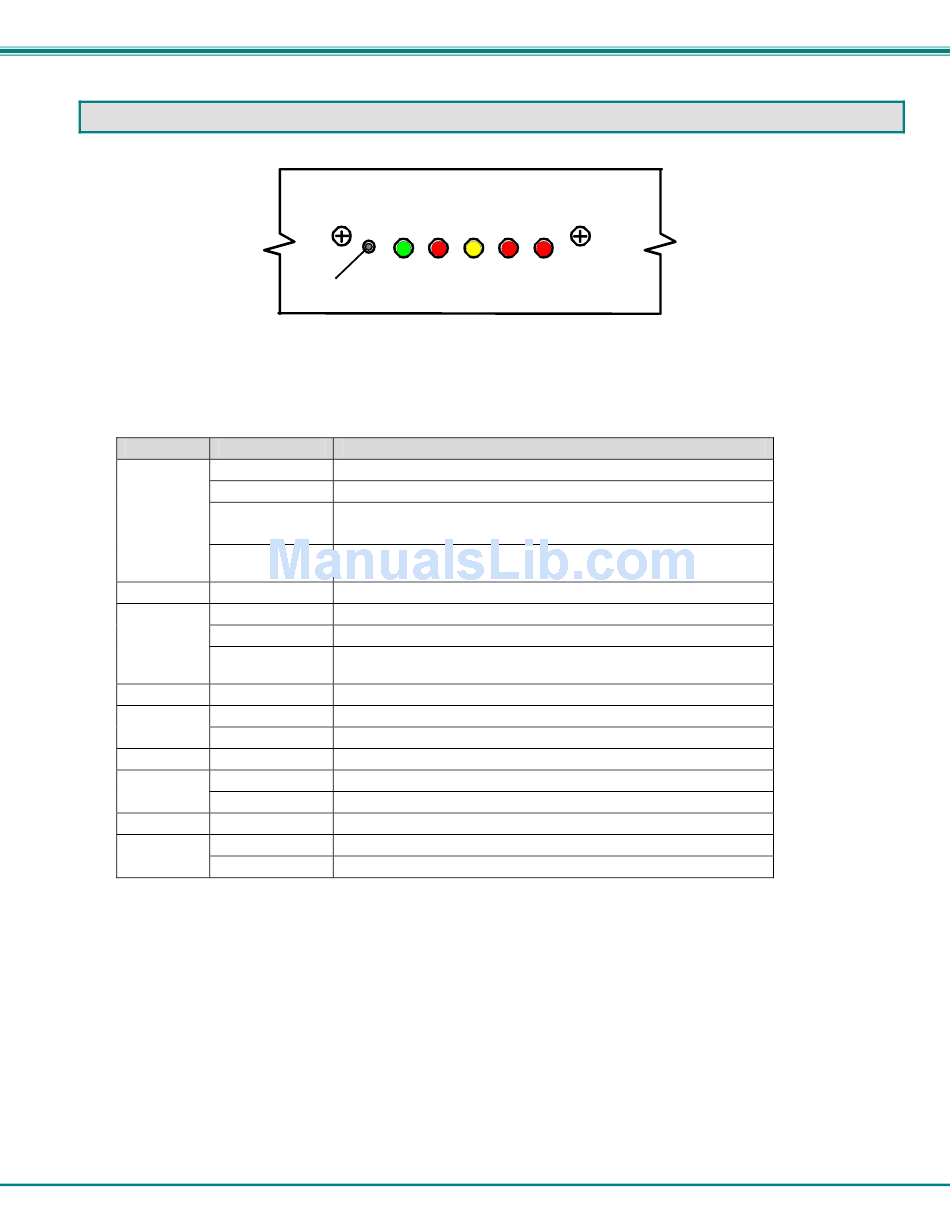

Figure 58- Front panel LED indicators

Meaning
No Power
AC Power is ON
AC Power has failed, Battery backup (pg. 65) is ON
(The LED will not blink if the unit is powered OFF by the switch.)
Discovery Tool (pg. 20) is in use and communicating with the
ENVIROMUX
Battery is OK, AC power is ON
Battery is below 12V and charging (no action required)
Battery has been disconnected (battery is below 10.7V), requires
attention, contact NTI
No new messages in Data Log since last viewing
New message in Data Log-not an alert
No new alert message in Event Log re: internal sensors
New alert message in Event Log re: internal sensors
No new alert message in Event Log re: external sensors
New alert message in Event Log re: external sensors
Int Ext
Alert Alert
