INSTALLATION

Rack Mounting Instructions

The ENVIROMUX was designed to be mounted in a rack. It includes a rack mount kit to make attachment easy.
1. Attach the ears to the ENVIROMUX using the #6-32x3/16" flat Phillips-head screws (6) provided as shown in the
illustration below.
2. The holes in the ears should line up with pre-threaded holes in the sides of the ENVIROMUX.
securely.
3. Install 4 cage nuts to the rack in locations that line up with the holes in the mounting ears on the ENVIROMUX.
4. Secure the ENVIROMUX to the rack using four #10-32x3/4" screws and cage nuts (provided). Be sure to tighten all
mounting screws securely.
Note: Do not block power supply vents in the ENVIROMUX case.
behind the ENVIROMUX.

Figure 3- Mount ENVIROMUX in a rack

5. Attach all cables securely to the ENVIROMUX and where necessary supply adequate means of strain relief for
cables.
ENVIROMUX-SEMS-16
Front of Switch

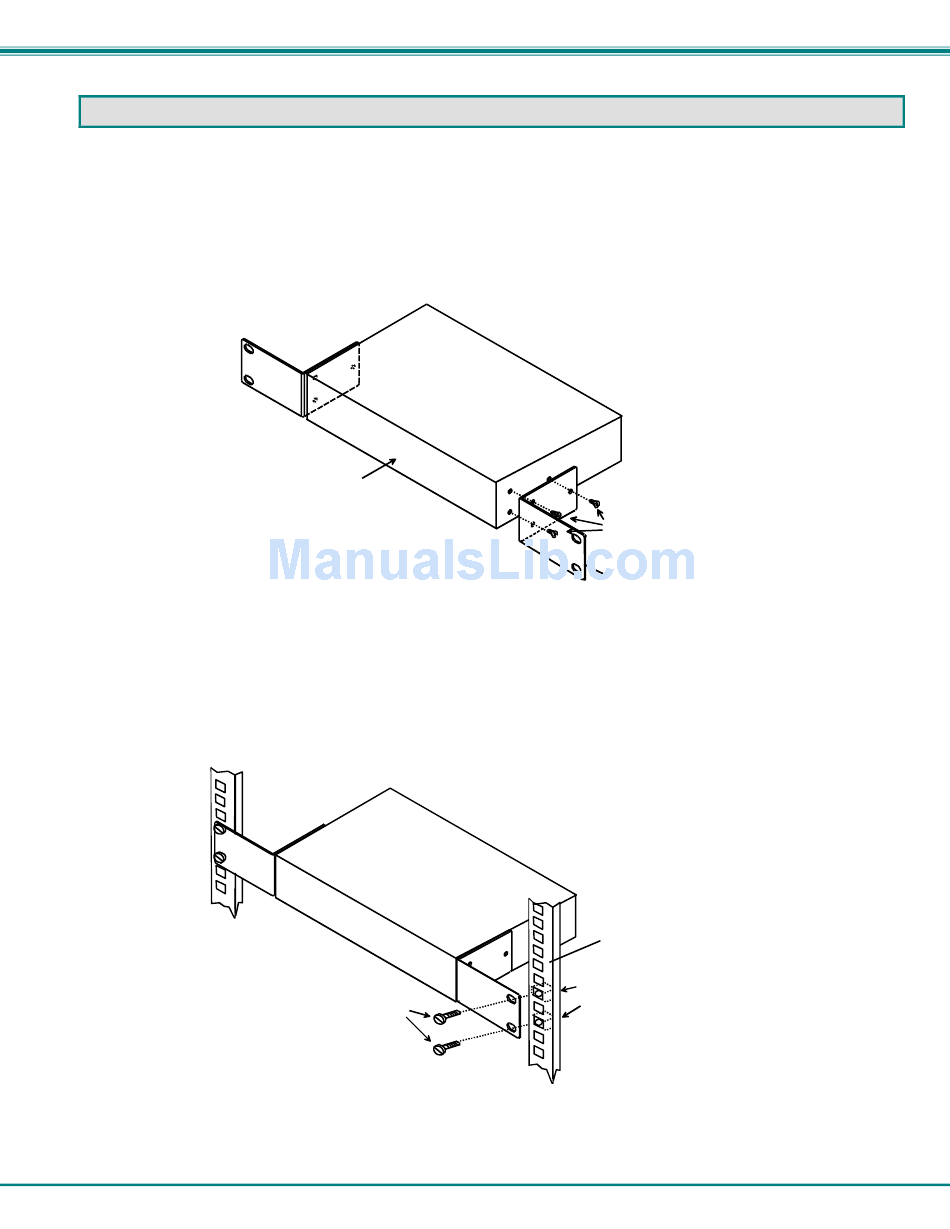

Figure 2- Secure rack mount ears to ENVIROMUX-SEMS-16

ENVIROMUX-SEMS-16
#10-32 x 3/4" Screws
(provided)
6-32x3/16"
Flat Head
Screws
(Provided)
Rackmount Ear
Be sure to enable adequate airflow in front of and
Rack
Cage Nuts
( provided)
9
Tighten the screws
