NTI SERVER ENVIRONMENT MONITORING SYSTEM

Settings-SNMP Agent

The SNMP Agent Setup page (Administration->Settings->SNMP Agent) is used to enable SNMP messages.
To enable the SNMP Agent, click on the associated checkbox.
To enable SNMP traps to be sent, click on the associated checkbox.
Apply names to the "Read-write Community Name" and "Read-only Community Name" as applicable.
Note: For changes to take effect, the ENVIROMUX must be rebooted. (See page 47 for "SHUTDOWN/REBOOT".)

Settings-Date and Time

The Date and Time of the ENVIROMUX (Administration->Settings->Date & Time) can be either manually setup to use an
onboard clock or set to be synchronized with an SNTP server.
To synchronize it, click on the checkbox "Synchronize with SNTP Servers" and enter the primary and secondary SNTP server IP
addresses (even if the primary is the same as the secondary). Enter the time zone that the ENVIROMUX should be set to.
To set it manually, click on the checkbox "Change Date/Time Manually".
box and enter the date. Select the format of the time of day (24 hours, AM, or PM) and enter the time accordingly.
In order to have the time change in accordance Daylight Saving Time rules, place a checkmark in the block "Automatically adjust
clock for daylight saving changes" and select the appropriate time zone in the box above.
Click on "Apply" when finished.

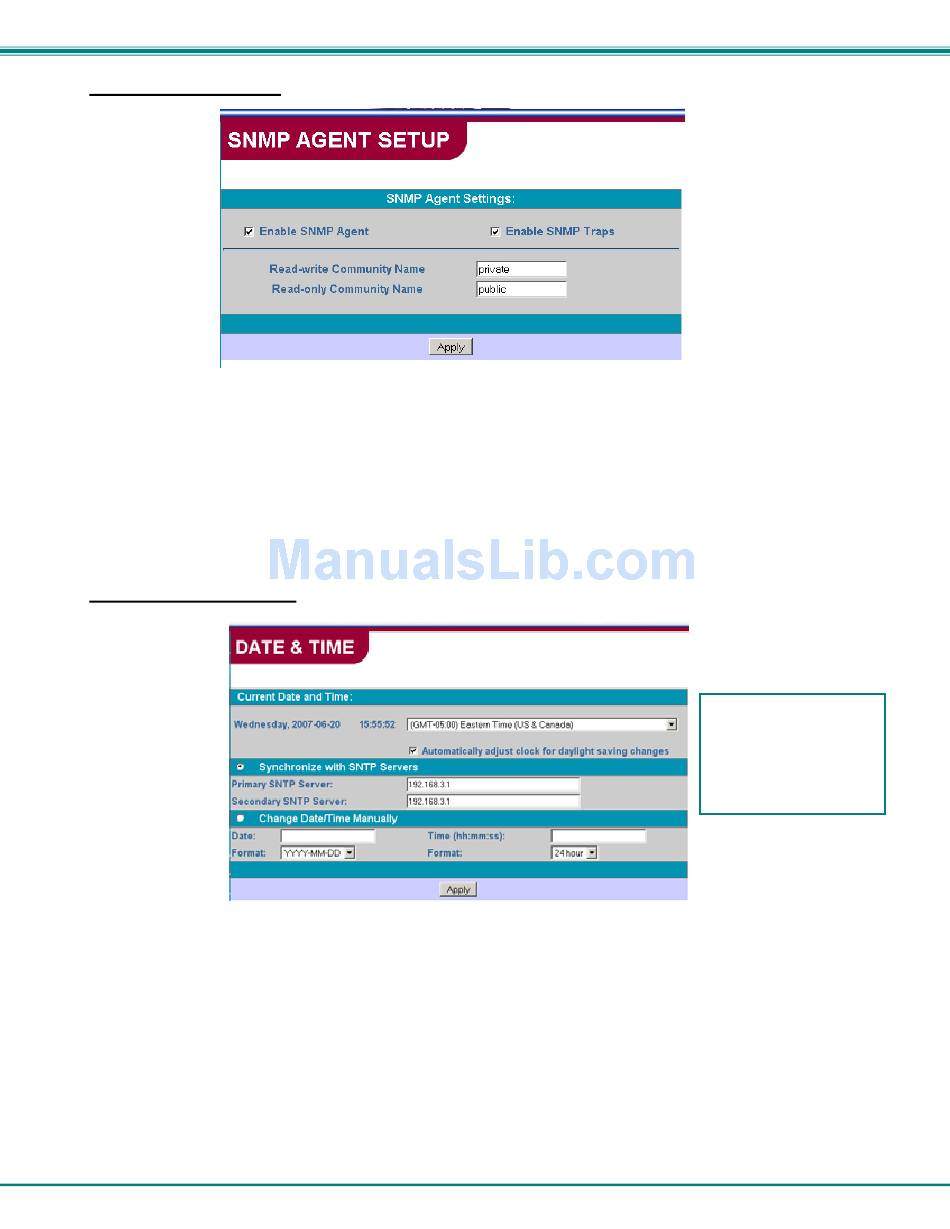

Figure 36- SNMP Agent Setup Page

Figure 37- Setup Date & Time
Select the desired date format from the drop-down
38
FYI-
The ENVIROMUX
complies with the new
U.S.-Daylight Saving
Time rules (passed in
2005).
