Connect Output Devices

For connection of additional output devices to be controlled by the ENVIROMUX, terminals labeled "Output Relays" have
been provided. The 4 pairs of contacts will work as switches to either close or open (switch ON or OFF) when used. The
switch position is configured on the Sensor Configuration page (page 26).
OUTPUT RELAY dry contact ratings must not be exceeded. Dry contact rating:
WARNING
DC 30V, 1A; AC 100V, 500mA. The OUTPUT RELAY contacts are not to be connected
directly to AC mains wiring.
OUTPUT RELAYS
1 2 3
Keypad

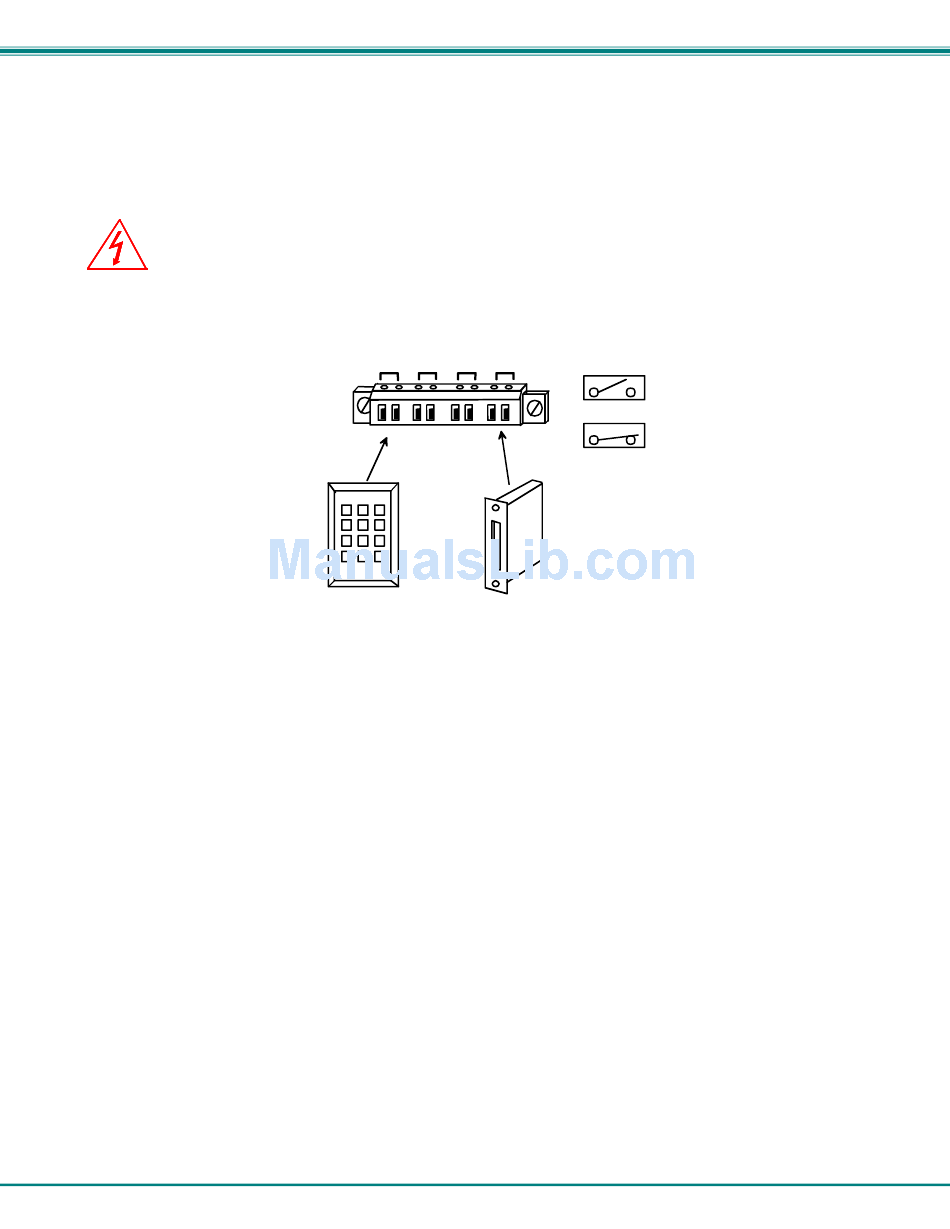

Figure 9- Install additional devices to output terminals

4
Contacts Open
Contacts Closed
