NTI SERVER ENVIRONMENT MONITORING SYSTEM

If Ethernet slaves are connected,

1. Each Ethernet slave must be given a unique IP address (page 37)

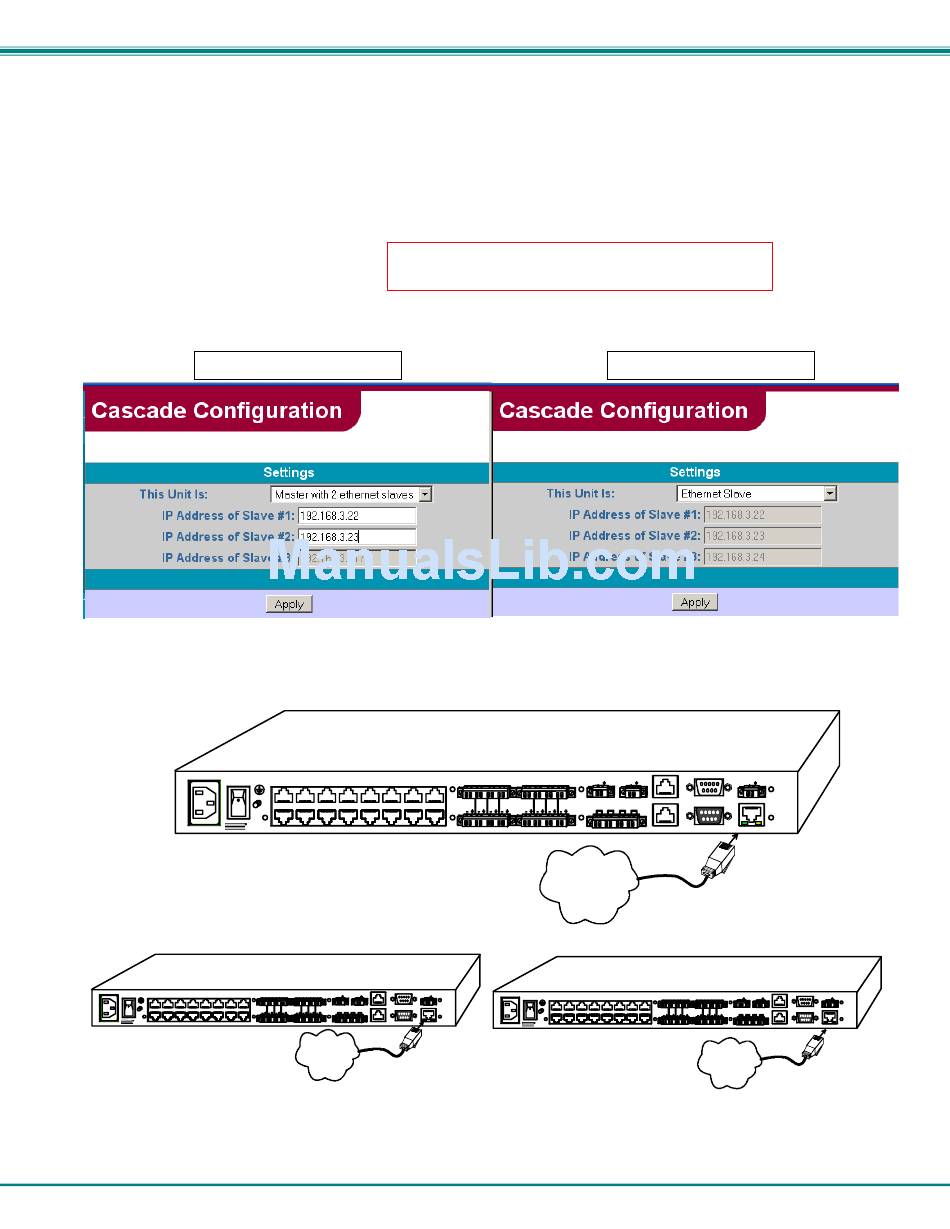

2. Go to the Cascade Configuration page for each ENVIROMUX and using the choices in the drop down box , select the

position unit will hold in the cascaded system (examples seen in Figure 45).

3. Press "Apply" to save the change.

4. After the position is selected for the master, the blocks below will be available to enter the IP address of each Ethernet

slave to be monitored by the master.

5. Press "Apply" to save the changes.

6. Power cycle each slave

7. Power cycle the master

Sensors attached to the connected slaves will appear when viewing the Summary Page for the master. The Beacon and Siren

connections of the slave units are not used.

MASTER CONFIGURATION

NTI

NETWORK TECHNOLOGIES INC

(Ethernet Slave #1 IP address 192.168.3.22)

REAR VIEW OF ENVIROMUX-SEMS-16

RJ45 SENSO RS

+ 12V + 12V

NTI

NETWORK TECHNOLOGIES INC

1275 Danner Dr, Aurora, OH 44202

Tel :330-562-7070

www. n etworktechinc. com

Note: The master and each slave must be power cycled

for changes to take effect.
