Monitoring; Summary Page; Figure 20- Summary Page - Network Technologies ENVIROMUX-SEMS-16 Installation And Operation Manual

NTI SERVER ENVIRONMENT MONITORING SYSTEM
From the initial Welcome page, the user can use the menu to the left to manage all the functions of the ENVIROMUX.
Function

MONITORING

ADMINISTRATION
LOG
LINKS
SUPPORT
REFRESH
LOGOUT
Monitoring
Under Monitoring, there are links to view the sensors, webcams, and IP address data being monitored by ENVIROMUX.
Link Description
Summary Lists all sensors , including their type, description, value, and status (below)
Internal Sensors Provides a link to view the status of specific Internal Sensors (page 25)
External Sensors Provides a link to view the status of specific External Sensors (page 27)
Digital Inputs Provides a link to view the status of each Digital Input (page 32)
Output Relays Provides a link to view the status of each Output Relay (page 33)
IP Devices Provides a link to view the status of each IP device defined- indicating an active connection or not (page 34)
Webcams Displays an image from up to 8 webcams with links to connect to each (page 35)

Summary Page

The Summary Page breaks the data reported into 6 categories:
Category
Power supplies
Internal Sensors
External Sensors
Digital Inputs
Outputs
IP Devices
Double-function
sensor (see page 25)
Description
Monitor all the sensor and data input received by the ENVIROMUX (below)
Configure all network and multi-user access settings (page 36)
View and configure the Event and Data Logs (page 48)
Provides a link to servers or website favorites for quick navigation (page 50)
Links for downloading a manual, the MIB file, or firmware upgrades
Refresh the image on the display to show the most current information available
Log the user out of the ENVIROMUX web interface
Description
Indicates the status of the power supply(s)
there are three inside the ENVIROMUX
sensors that connect to the RJ45 connectors
sensors that connect to the terminals "Digital In"
Relays that open or close depending on alert status
IP Addresses that can be monitored by ENVIROMUX

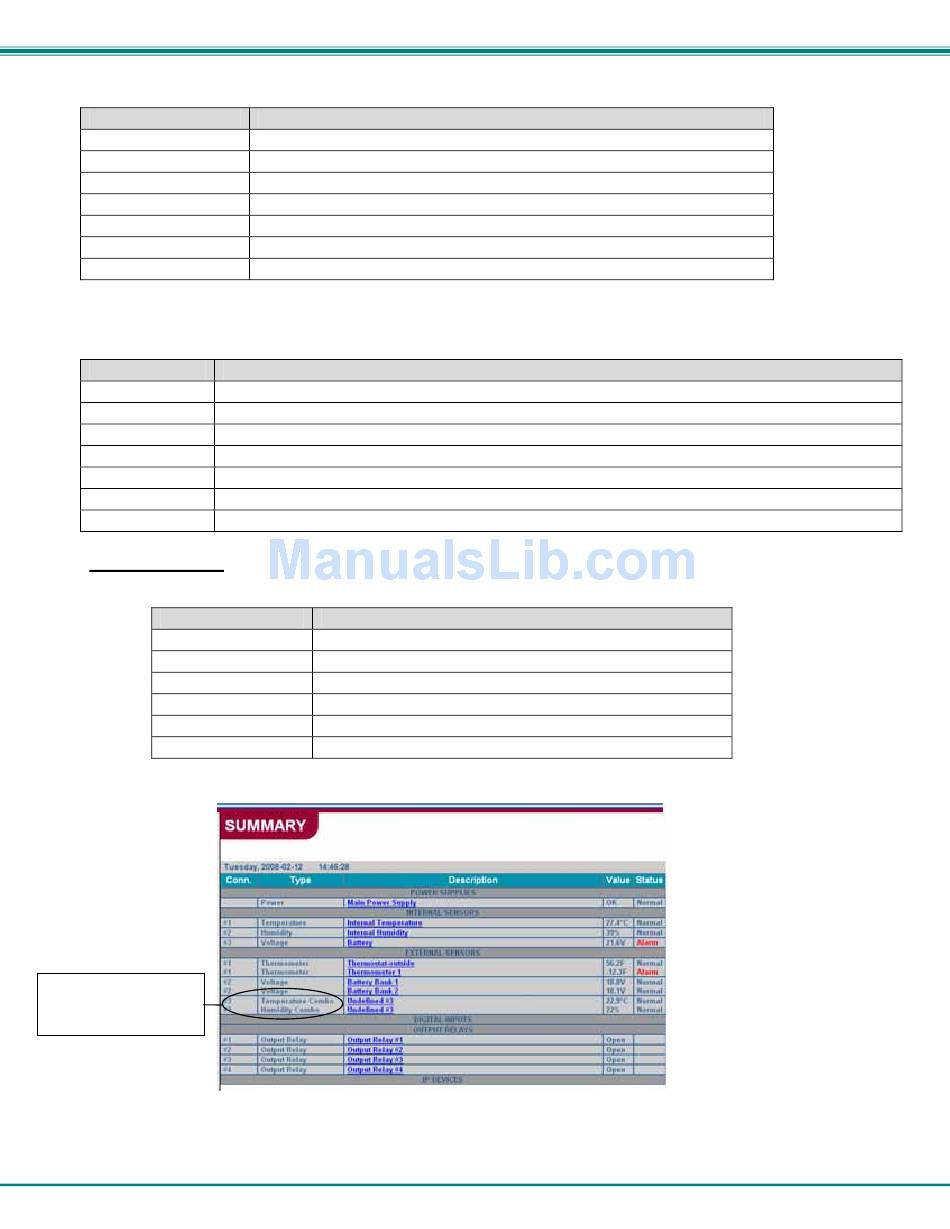

Figure 20- Summary Page

22
To see the settings of each
sensor, click on the link in the
description column for the desired
sensor. Click on the browser's
Back button to return to the
summary.
