Settings-Network Setup

From the Network Setup page (Administration->Settings-> Network) the administrator can either choose to have the IP
address and DNS information filled in automatically by the DHCP server, or manually fill in the fields.
Note: If you select "Obtain an IP address automatically", make sure a DHCP server is running on the network the
ENVIROMUX-SEMS-16 is connected to.
If the administrator chooses to have the DNS information filled in automatically, the SMTP server and port number still need to be
entered for e-mail alerts to work. If the SMTP server requires a password in order for users to send e-mails, the network
administrator must first assign a user name and password to the ENVIROMUX. Then apply the user name and password to the
"User" and "Password" fields on the Network Setup page. The ENVIROMUX must be power-cycled for changes to the SMTP
server to take effect.
Note: The SMTP server port number is shown in Figure 35 as "25". This is a common port number assigned, but not
necessarily the port number assigned to your SMTP server. For SMTP servers that support SSL, the common port
number is 465.
The administrator may assign a different HTTP Server Port than is used by most servers (80). This might be desired if the
administrator wants a secure connection.
Note: If the port number is changed and forgotten, to determine what it has been changed to connect the ENVIROMUX
for RS232 control (page 13) and review the Network Settings (page 53).
If the SMTP server supports SSL (user authentication), click the block next to "This server requires SSL" to place a check mark in
it.

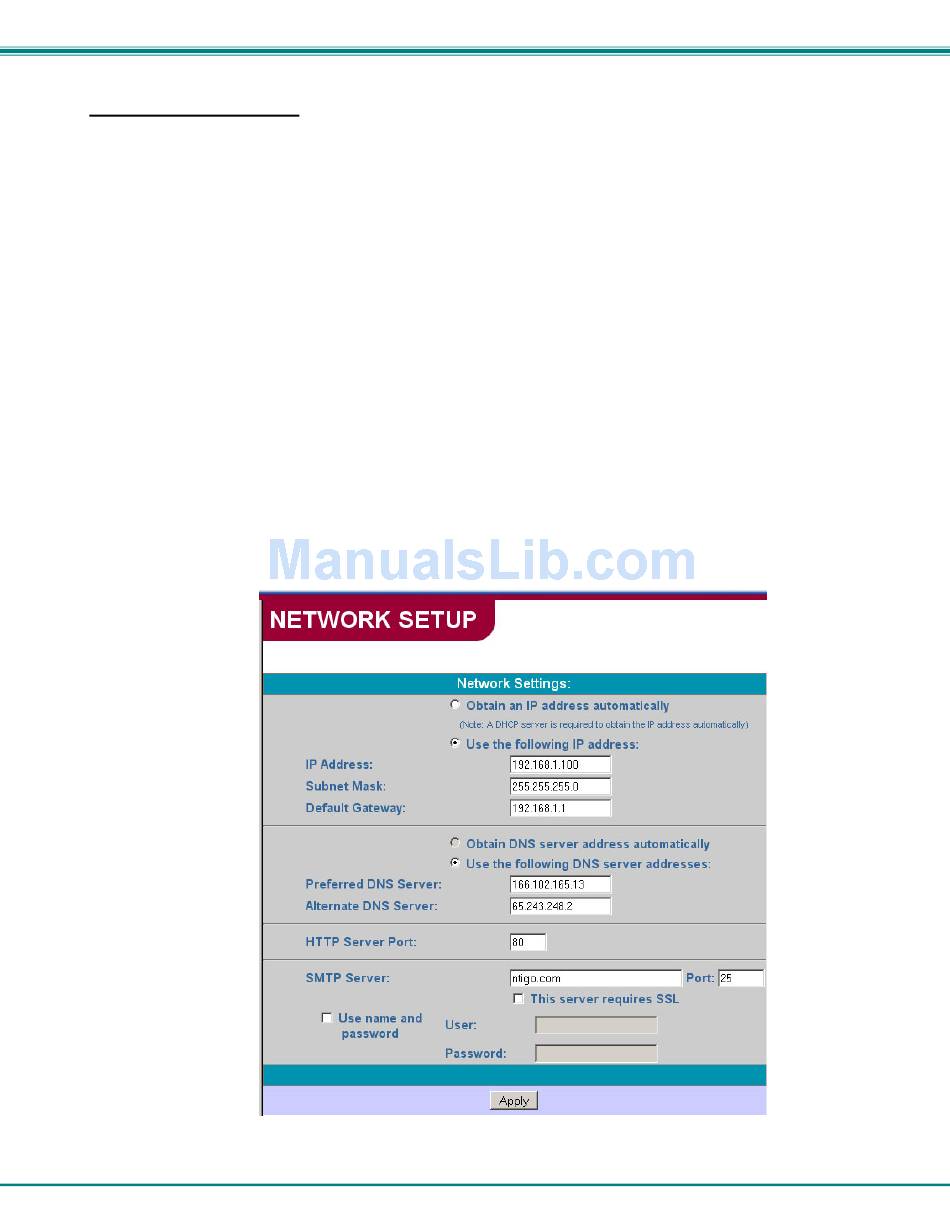

Figure 35- Network Setup Page

37
