NTI SERVER ENVIRONMENT MONITORING SYSTEM

USE AND OPERATION VIA WEB INTERFACE

A user may monitor and configure the settings of any device connected to the ENVIROMUX using the Web Interface via any web
browser (see page 2 for supported web browsers). To enable the Web Interface, connect the ENVIROMUX to the Ethernet
(page 13). Use the Device Discovery Tool (page 20) to setup the network settings. Then, to access the web interface controls,
the user must log in.
Note: In order to view all of the graphics in the Web Interface, the browser's JavaScript and Java must be enabled.

Log In and Enter Password

To access the web interface, type the current IP address into the address bar of the web browser. (The default IP address is
shown below):
http://192.168.1.21
A log in prompt requiring a username and password will appear:
Username = root
Password = admin
(lower case letters only)
Note: usernames and passwords are case
sensitive

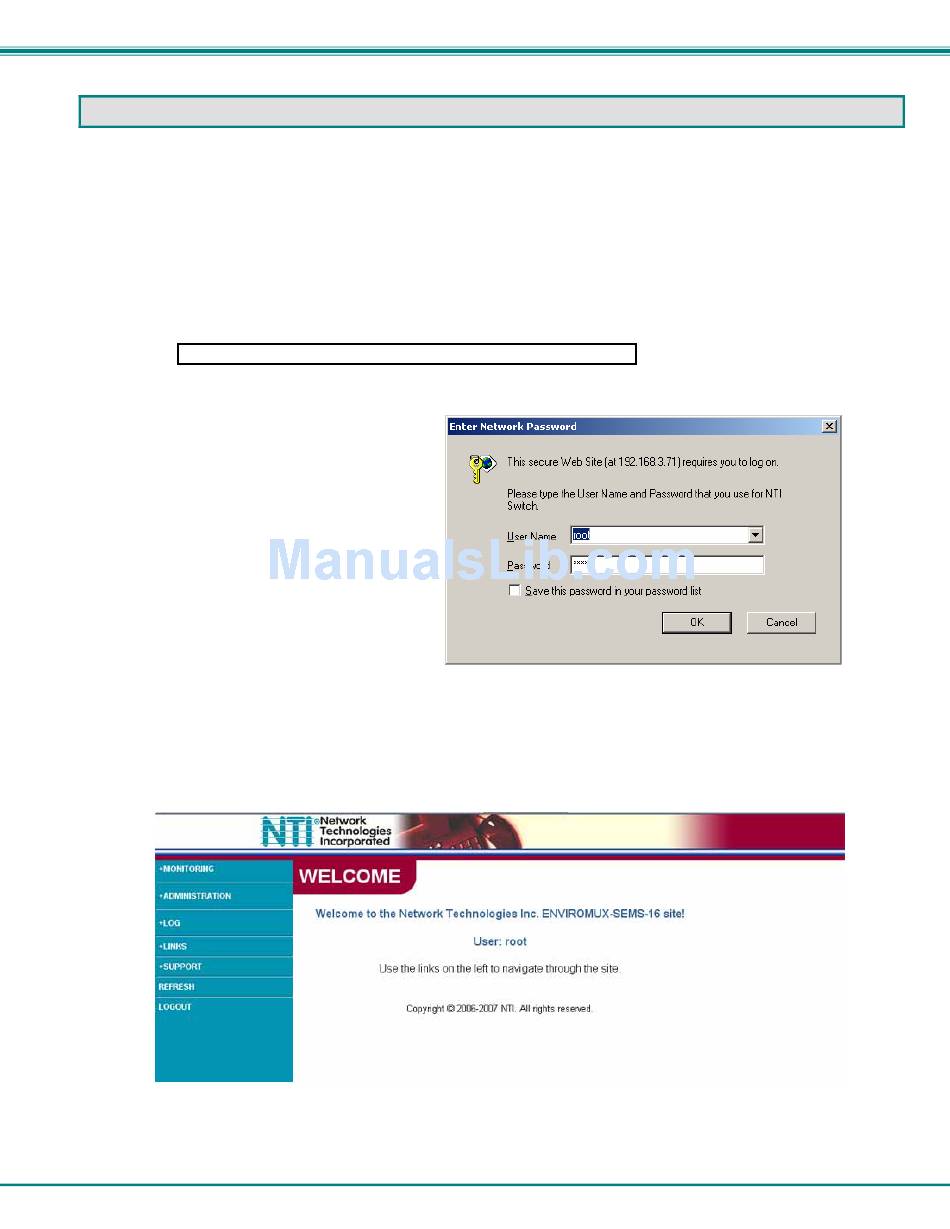

Figure 18- Login prompt to access web interface

With a successful log in, a screen similar to the following will appear:

Figure 19- Initial "Welcome" Page

21
