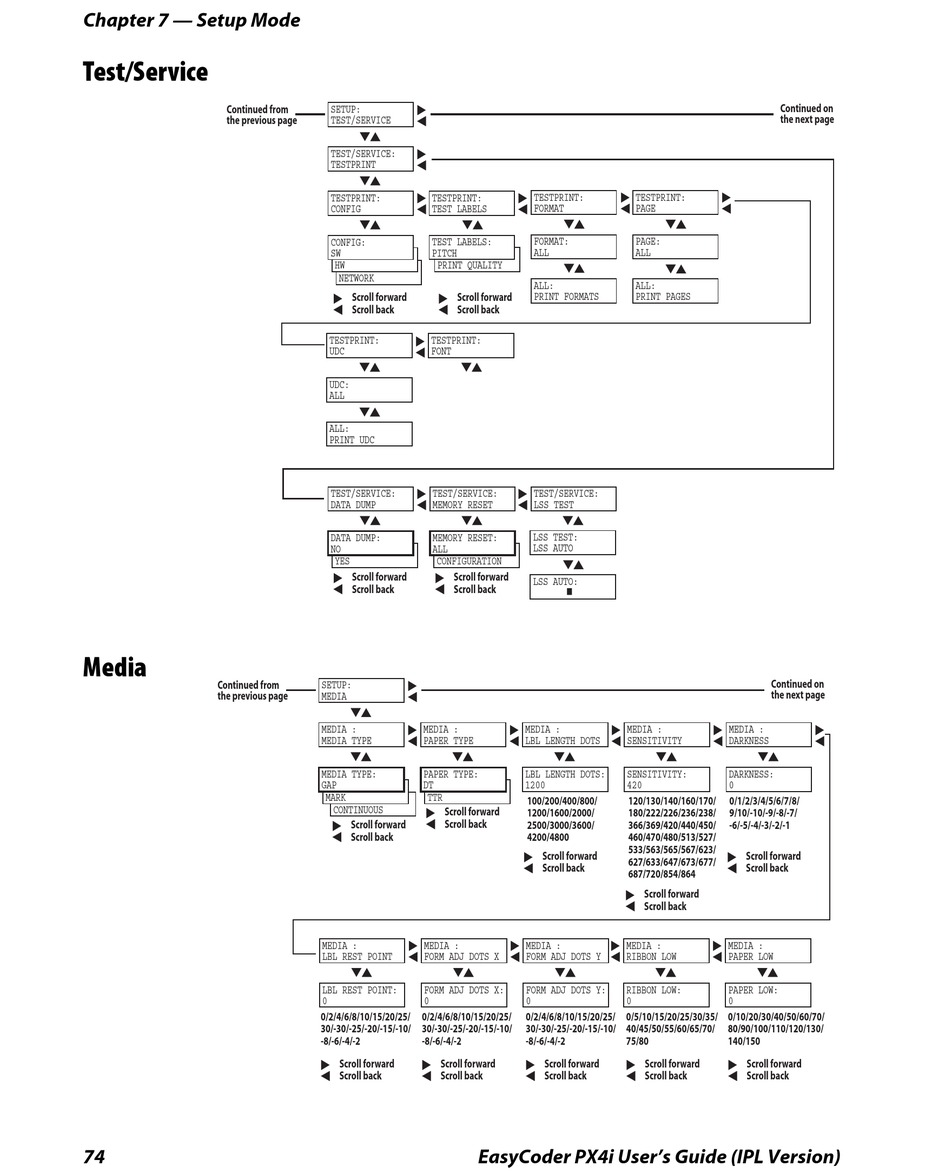

Chapter 7 — Setup Mode

Test/Service

Continued from
the previous page

Media

Continued from
the previous page
74
SETUP:
TEST/SERVICE
TEST/SERVICE:
TESTPRINT
TESTPRINT: TESTPRINT:
CONFIG TEST LABELS
CONFIG: TEST LABELS:
SW PITCH
CONFIG: TEST LABELS:
HW PRINT QUALITY
CONFIG:
NETWORK
Scroll forward Scroll forward
Scroll back Scroll back
TESTPRINT: TESTPRINT:
UDC FONT
UDC:
ALL
ALL:
PRINT UDC
TEST/SERVICE: TEST/SERVICE:
DATA DUMP MEMORY RESET
DATA DUMP: MEMORY RESET:
NO ALL
CONFIG: CONFIG:
YES CONFIGURATION
Scroll forward Scroll forward
Scroll back Scroll back
SETUP:
MEDIA
MEDIA : MEDIA :
MEDIA TYPE PAPER TYPE
MEDIA TYPE: PAPER TYPE:
GAP DT
CONFIG: CONFIG:
MARK TTR
CONFIG:
CONTINUOUS
Scroll forward
Scroll back
Scroll forward
Scroll back
MEDIA : MEDIA :
LBL REST POINT FORM ADJ DOTS X
LBL REST POINT: FORM ADJ DOTS X:
0 0
0/2/4/6/8/10/15/20/25/ 0/2/4/6/8/10/15/20/25/
30/-30/-25/-20/-15/-10/ 30/-30/-25/-20/-15/-10/
-8/-6/-4/-2 -8/-6/-4/-2
Scroll forward Scroll forward
Scroll back Scroll back
EasyCoder PX4i User's Guide (IPL Version)
TESTPRINT: TESTPRINT:
FORMAT PAGE
FORMAT: PAGE:
ALL ALL
ALL: ALL:
PRINT FORMATS PRINT PAGES
TEST/SERVICE:
LSS TEST
LSS TEST:
LSS AUTO
LSS AUTO:
MEDIA : MEDIA :
LBL LENGTH DOTS SENSITIVITY
LBL LENGTH DOTS: SENSITIVITY:
1200 420
100/200/400/800/ 120/130/140/160/170/
1200/1600/2000/ 180/222/226/236/238/
2500/3000/3600/ 366/369/420/440/450/
4200/4800 460/470/480/513/527/
533/563/565/567/623/
Scroll forward
627/633/647/673/677/
Scroll back
687/720/854/864
Scroll forward
Scroll back
MEDIA : MEDIA :
FORM ADJ DOTS Y RIBBON LOW
FORM ADJ DOTS Y: RIBBON LOW:
0 0
0/2/4/6/8/10/15/20/25/ 0/5/10/15/20/25/30/35/
30/-30/-25/-20/-15/-10/ 40/45/50/55/60/65/70/
-8/-6/-4/-2 75/80
Scroll forward Scroll forward
Scroll back Scroll back
Continued on
the next page
Continued on
the next page
MEDIA :
DARKNESS
DARKNESS:
0
0/1/2/3/4/5/6/7/8/
9/10/-10/-9/-8/-7/
-6/-5/-4/-3/-2/-1
Scroll forward
Scroll back
MEDIA :
PAPER LOW
PAPER LOW:
0
0/10/20/30/40/50/60/70/
80/90/100/110/120/130/
140/150
Scroll forward
Scroll back
