Chapter 4 — Media Load
38

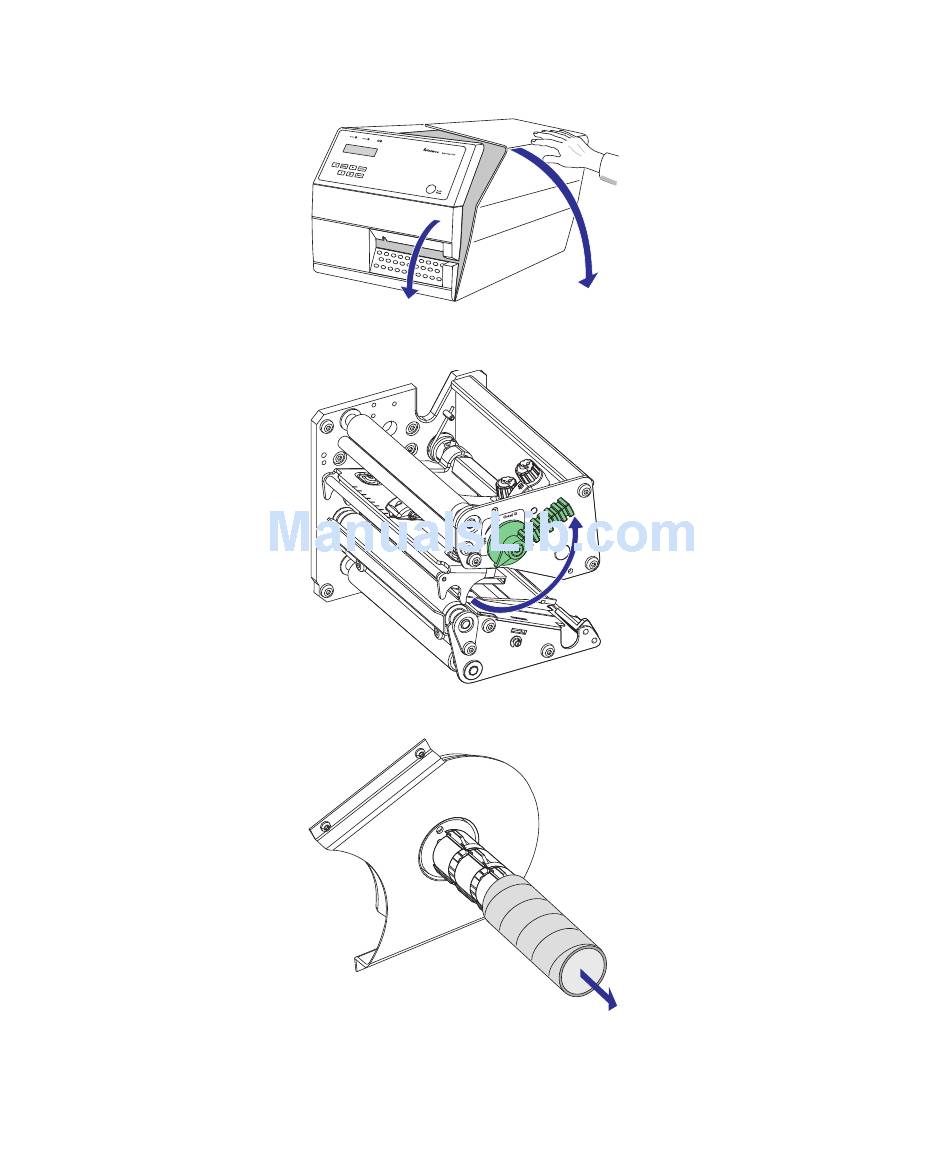

To load media for internal batch takeup operation:
1 Open the front and side doors.
2 Turn the printhead lift lever counter-clockwise to raise the
printhead.
3 Remove any empty core from the media supply hub.
