RS-232 Interface

Protocol For The Default Setup

Interface Cable

122
Baud rate: 9600
Character length: 8 bits
Parity:None
Stop bits:1
RTS/CTSDisabled
ENQ/ACK:Disabled
XON/XOFF:Disabled (both ways)
New Line:CR/LF
To change the interface settings, see Chapter 6,
Printer" on page 57.

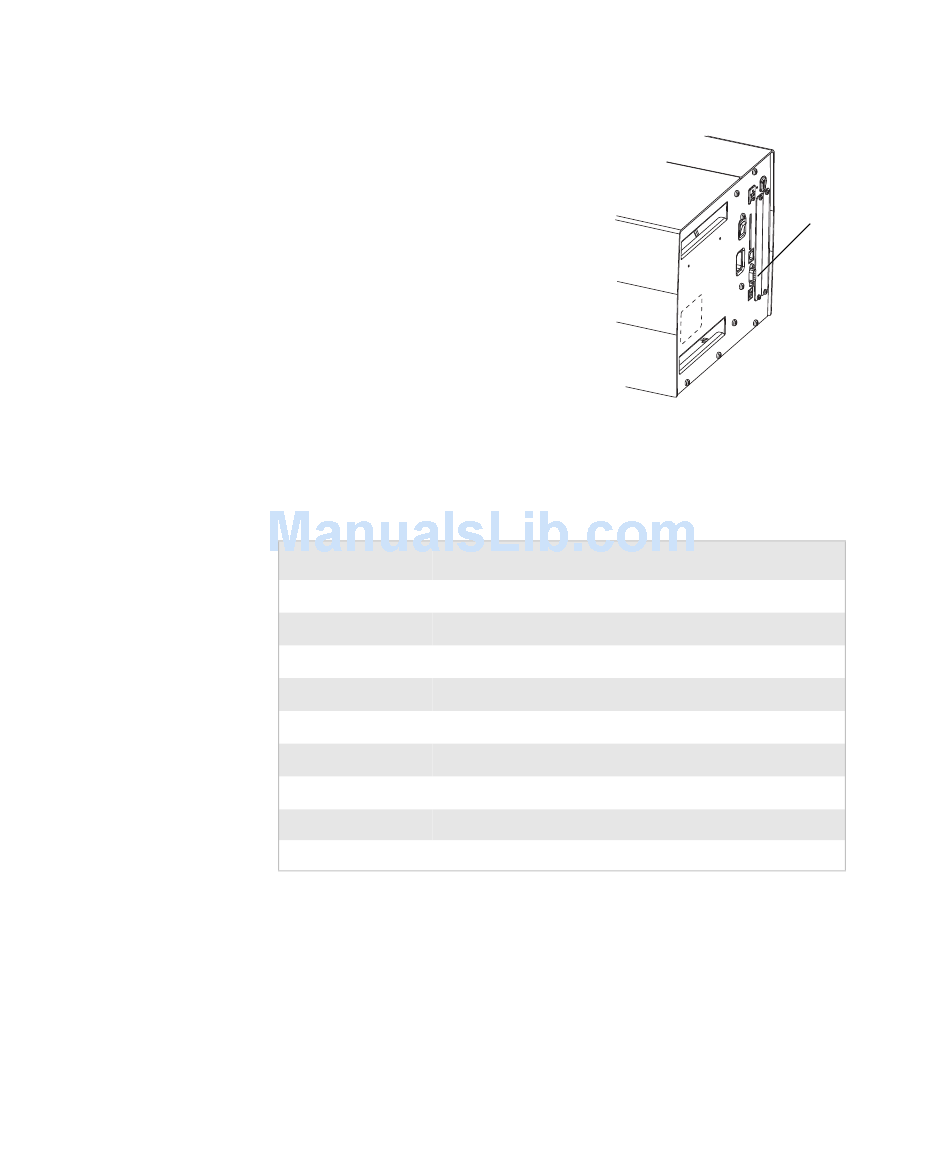

SIgnals On Printer's Serial Port
DB-9 Signal
1
2 TXD
3 RXD
4 DSR
GND
5
6 DTR
CTS
7
8 RTS
9 ---
*The external +5V is limited to 500 mA and is automatically
switched off at overload.
Computer end: Depends on computer model
Printer end: DB-9 plug
Meaning
External +5V DC*
Transmit data
Receive data
Data set ready
Ground
Data terminal ready
Clear to send
Request to send
Not Used
EasyCoder PX4i User's Guide (IPL Version)
RS-232
"Setting Up the
