Self-Adhesive Labels (Gap Stock)

118
a
c
d
Feed Direction
b
"Label Taken Sensor" on page
information, see
Maximum: 6,143 mm (241 inches), provided that there is a
sufficient amount of free SDRAM memory
(e) Label Gap
Recommended: 3.0 mm (0.12 inches)
Minimum: 1.27 mm (0.05 inches)
Maximum: 25.0 mm (0.98 inches)
The Label Stop Sensor must be able to detect the extreme front
edges of the labels. For more information, see
Sensor" on page 106.

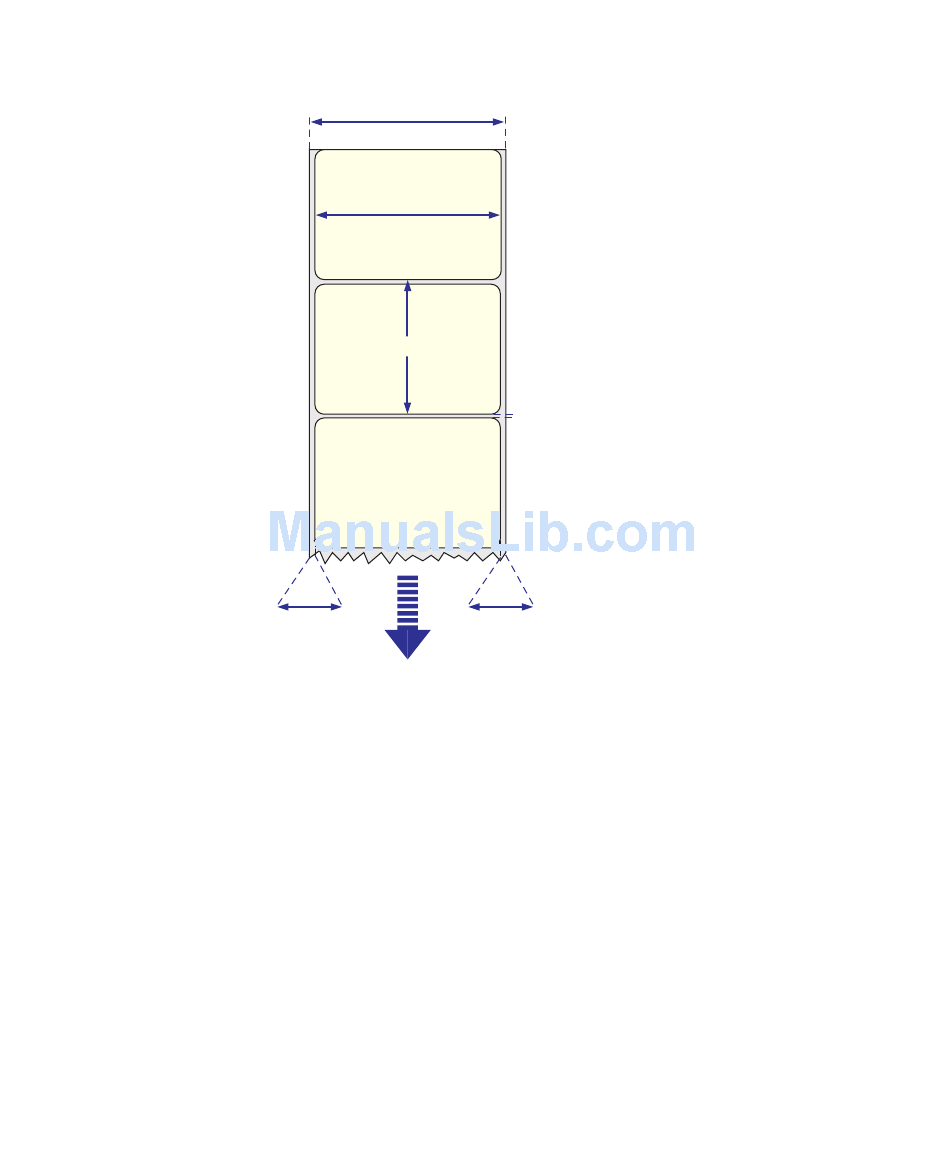

Media Type Setup: Gap Stock
(a) External Media Width
(including liner)
Minimum:25 mm(1.00 inches)
Maximum:120 mm(4.72 inches)
(b) Backing Width
The liner must not extend more
than a total of 1.6 mm (0.06
inches) past the edge of the face
material and should protrude
equally on both sides.
(c) Internal Media Width
e
(excluding backing)
Minimum:23.8 mm (0.94 inches
Maximum:118.4 mm (4.66
inches)
(d) Label Length
Minimum (without LTS): 8 mm
b
(0.32 inches)
Minimum (with LTS):12 mm
(0.47 inches) For more
EasyCoder PX4i User's Guide (IPL Version)
81.
"Label Stop
