Chapter 3 — Starting Up

Switching On the Printer

16
Before switching on the printer, make the necessary connections,
and check that the printhead is engaged.
Switch on the power using the On/Off switch on the rear plate.
The "Power" control lamp on the front panel lights up when the
power is on. Wait for a few moments while the printer loads the

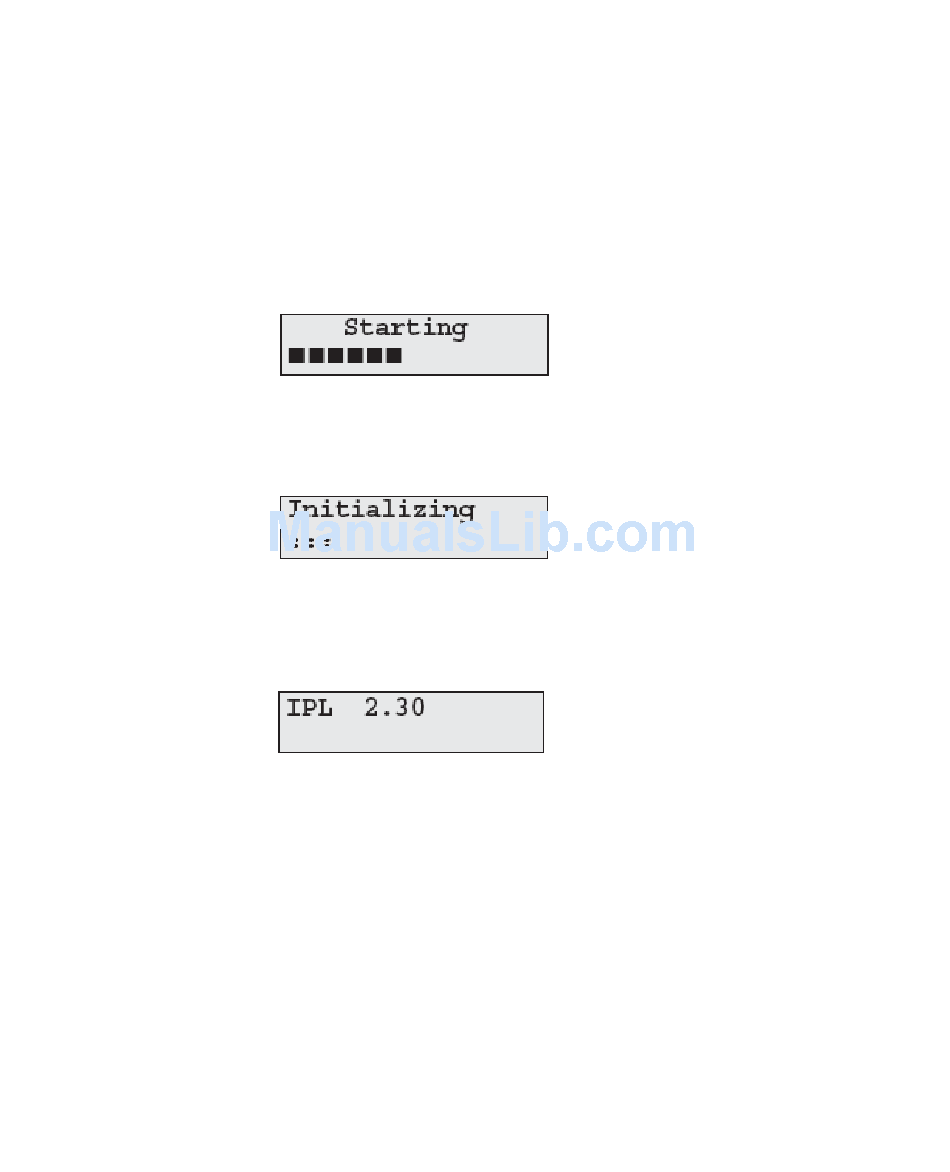

program and runs some self-diagnostic tests. The Display
Window will show the following progress indicator.
After a short time, the printer is initialized. The progress of the
initialization is indicated by an increasing number of colons on
the lower line in the display.
When the initialization is completed, a label is fed out. The
following message, which is the IPL version number, appears in
the Display Window, indicating that the printer is ready for
operation.
EasyCoder PX4i User's Guide (IPL Version)
