EasyCoder PX4i User's Guide (IPL Version)

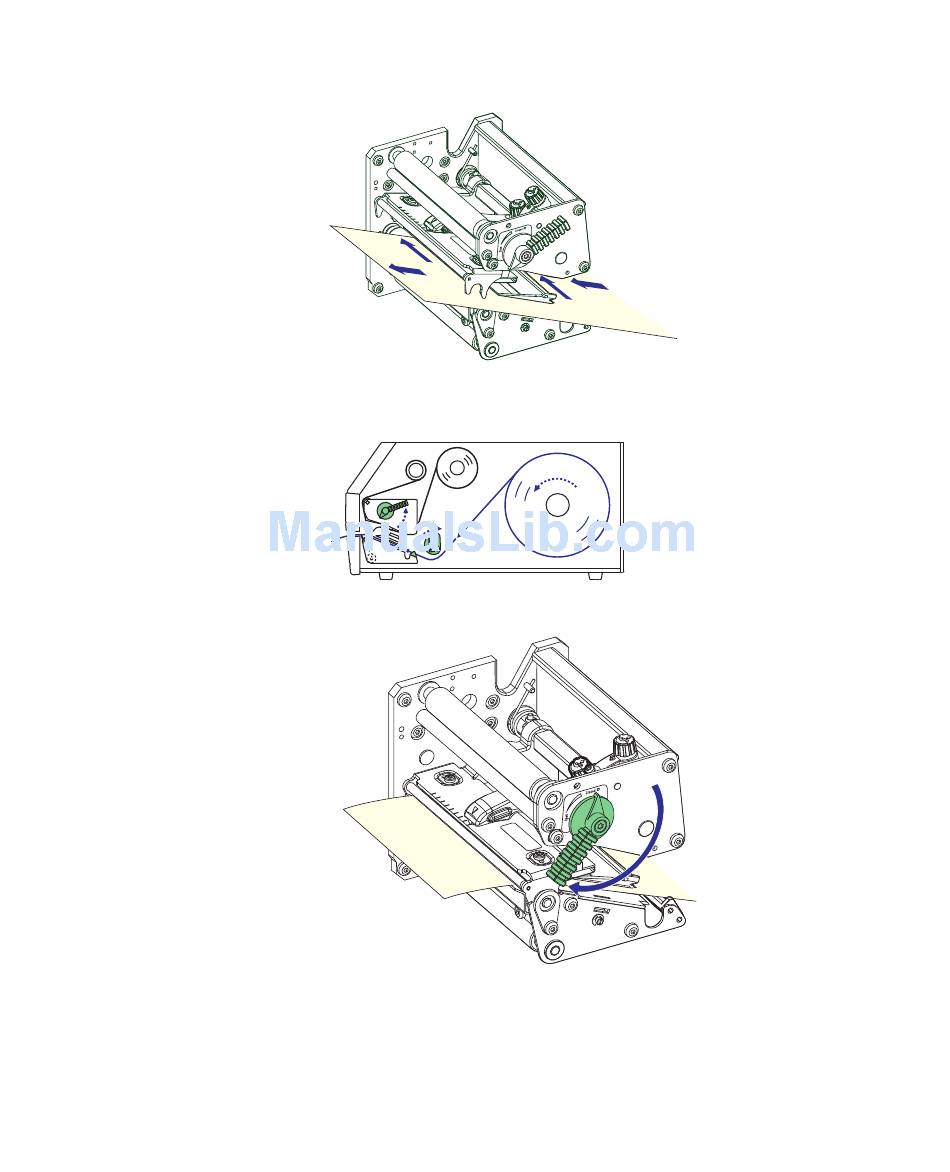

7 Route the media through the print unit and push it inwards
as far as it will go.
8 This diagram shows the path the media will take through the
printer.
9 Turn the printhead lift lever to the "closed" position.
Chapter 4 — Media Load
21
